Ships free with Plus
  • 50,000 gal. capacity
  • Maximum operating pressure: 125 PSI

UPC Code:


Usually Ships in 1 Business Day
When will I receive my item?

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

3M Water Filtration Products 5623601 Specs
Width 22 7/8 Inches
Height 24 3/8 Inches
Capacity 50,000 Gallons
Filter Type Scaling


Maximum Pressure 125 PSI
Maximum Temperature 100 Degrees F
Micron Rating .5 Microns
NSF Listed Yes
Service Flow Rate 7.66 GPM
Type Filtration Systems

3M Water Filtration Products 5623601 Details

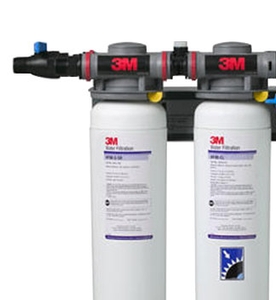

This 3M Water Filtration Products DF290-CL dual flow water filtration system helps to simultaneously provide consistent high quality water for cold beverages and ice machines at a combined rate of up to 7.66 GPM! Two separate streams exit the system's manifold. The first stream supplies cold beverage applications and combines cyst, bacteria, chloramine, chlorine taste, odor, and sediment reduction for a total volume up to 25,000 gallons at a flow rate up to 2.66 GPM. The second stream supplies ice machines and combines cyst, bacteria, and sediment reduction at a flow rate up to 5 GPM with a 25,000 gallon capacity. A scale inhibition medium is also included to reduce the hard scale effects of calcium and magnesium ions.

The 3M Water Filtration Products DF290-CL dual flow water filtration system boasts a revolutionary Integrated Membrane Pre-Activated Carbon Technology ("IMPACT") dual-zone media cartridge construction that provides superior throughput and cartridge life. It has a Sanitary Quick Change (SQC) encapsulated cartridge design that allows for fast and easy cartridge change-outs with just a quarter turn.

3/4" NPT horizontal inlet and outlet ports allow direct or easily adaptable connections to existing plumbing lines. The 3M Water Filtration Products DF290-CL dual port water filtration system has a .2 micron rating.

Overall Dimensions:
Width: 22 7/8"
Height: 24 3/8"

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Resources and Downloads for
3M Water Filtration Products 5623601

Spec Sheet Specsheet Manual Manual Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software
