Product Overview

  • Insulated, drop-in well
  • Accommodates one 12" x 10" half size food pan
  • Stainless steel construction won't rust or corrode; is easy to clean
  • Warming pans made of heavy gauge stainless steel; feature one-piece stainless steel top flanges
  • Thermostatic controls with high limits prevent overheating; one-piece, recessed, front-mounted panel
  • Powered by tubular heating elements for consistent temperatures
  • Can be used wet or dry
  • 120V, 825W
UPC Code:663118733491

Wells 5P-HSW6-120 Specs

Quantity
1/Each
Shipping Weight
18 lb.
Width
11 5/8 Inches
Depth
7 3/16 Inches
Control Cutout Width
4 7/8 Inches
Control Width
5 7/8 Inches
Cutout Width
10 7/8 Inches
Cutout Depth
13 3/8 Inches
Control Cutout Height
5 Inches
Control Height
6 1/4 Inches
Amps
6.9 Amps
Phase
1 Phase
Voltage
120 Volts
Wattage
825 Watts
Control Type
Thermostatic
Features
Made in America
Installation Type
Drop In / Top Mounted
Insulated
With Insulation
Material
Stainless Steel
Number of Wells
1 Well
Plug Type
Hardwire
Power Type
Electric
Size
1/2 Size
Type
Food Wells

Wells 5P-HSW6-120 Details

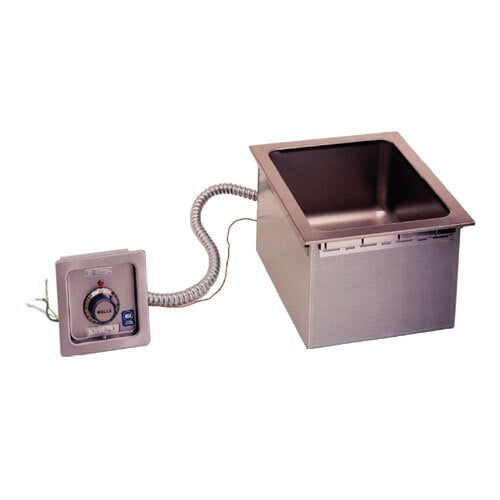

The perfect addition to any buffet line, this Wells 5P-HSW6-120 drop-in hot food well holds a 12" x 10" half size food pan of your tastiest pasta, mouthwatering veggies, and other delicious dishes at just the right temperature for serving! This unit boasts a warming pan made of deep drawn stainless steel and a tubular heating element underneath for fast, reliable heating. It can even operate dry or wet for maximum versatility.

Thermostat controls with high limits come in a recessed, stainless steel panel for easy access and operation. The unit features 825W of heating power and requires a 120V electrical connection for operation.

Overall Dimensions:
Length: 13 7/8"
Width: 11 5/8"
Depth: 7 3/16"

Control Dimensions:
Width: 5 7/8"
Height: 6 1/4"

Cutout Dimensions:
Width: 10 7/8"
Depth: 13 3/8"

Control Cutout Dimensions:
Width: 4 7/8"
Height: 5"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can this drop-in unit be installed into any countertop?

For performance and safety reasons, this unit is designed to be installed into metal countertops only.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

Need Parts & Accessories?

Show replacement parts and accessories for Wells 5P-HSW6-120 today!

Resources and Downloads for
Wells 5P-HSW6-120

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Equivalent Items

Wells HSW6-120 (Formerly)
