Size: 3/4"

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Protects against excessive pressure in systems containing water, oil, or air
  • 3/4" NPT inlet and 1/2" FNPT outlet
  • Brass valve body and stainless steel spring
  • Features calibrated adjustment
  • Adjustable from 50 to 175 PSI
UPC Code:098268435207

Watts 0556036 Specs

Quantity
1/Each
Shipping Weight
0.4 lb.
Width
1 5/8 Inches
Height
3 Inches
Features
Made in America
Inlet and Outlet Size
1/2 - 3/4 Inch
Material
Brass
Pressure Rating
50 - 300 PSI
Temperature Rating
180 Degrees F
Type
Pressure Relief Valves

Watts 0556036 Details

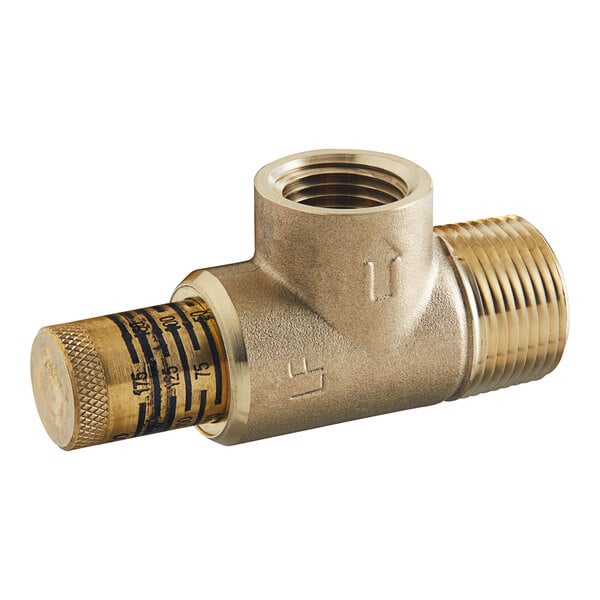

This Watts poppet type calibrated pressure relief valve is designed to be used to protect against excessive pressure in systems containing water, oil, or air. It features calibrated adjustment to set the valve at the exact relief pressure required. This valve has a 1/2" NPT inlet connection and a 3/4" FNPT outlet connection, and it features a brass valve body and a stainless steel spring.

This valve has a pressure range of 50-175 PSI and a maximum working pressure of 300 PSI. It's used to replace a worn or broken part on your equipment. The valve has a maximum working temperature of 180 degrees Fahrenheit.

Overall Dimensions:
Width: 1 5/8"
Height: 3"

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.
