Product Overview

  • Absorbs the increased volume of water created when water is heated
  • Durable carbon steel outer shell with epoxy finish
  • Maintains system pressure below the relief setting of the relief valve
  • Rugged, flexible butyl diaphragm
  • Max working temperature of 220 degrees Fahrenheit with a max working pressure of 75 PSI
UPC Code:098268219340

Watts 0066605 Specs

Quantity
1/Each
Shipping Weight
4.4 lb.
Height
12 1/2 Inches
Diameter
8 Inches
Capacity
2.1 Gallons
Finish
Epoxy
Material
Carbon Steel
Maximum Pressure
75 PSI
Maximum Temperature
220 Degrees F
PSI
12 PSI
Type
Thermal Expansion Tanks
Water Inlet Size
1/2 Inches

Watts 0066605 Details

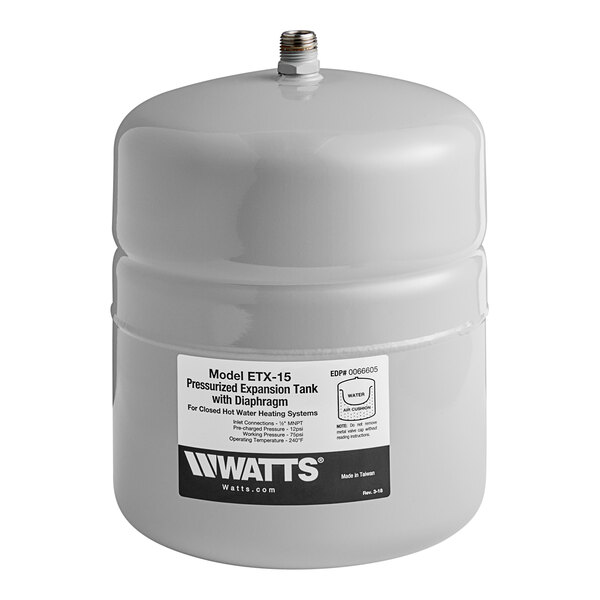

This Watts 2.1 gallon pressurized expansion tank is designed to absorb the increased volume of water created when water is heated. This tank helps ensure the system pressure is maintained below the relief setting of the relief valve. Featuring a durable expansion membrane, this tank prevents contact of the water with the air in the tank. It has a rugged, flexible butyl diaphragm to minimize the loss of the air change and ensure a long and trouble-free life for the system.

This expansion tank is pre-charged at 12 PSI, and it has a durable carbon steel outer shell with an epoxy finish. The ETX model mounts to supply piping. It's also compatible with glycol in systems and has a 1/2" male NPT system connection and a standard tire valve connection to facilitate the on-site charging of the tank. It has a maximum working temperature of 220 degrees Fahrenheit with a maximum working pressure of 75 PSI. It's not for use on potable water systems.

Overall Dimensions:
Diameter: 8"
Height: 12 1/2"
Capacity: 2.1 gallons

Attention CA Residents:
  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
