Product Overview

  • Innovative self-cleaning condenser simplifies maintenance
  • Features modern, Euro design with a stainless steel exterior
  • LED shelf lighting illuminates products and increases impulse sales
  • Arrange products on the bottom stainless steel solid base
  • Uses eco-friendly R-290 refrigerant; 115V, (2) 3/4 hp
UPC Code:400015643108

Turbo Air Refrigeration TOM-48L-UF-S-1S-N Specs

Shipping Weight
504 lb.
46 3/4 Inches
33 Inches
38 3/8 Inches
Power Cord Length
9 7/8 Feet
Interior Width
44 3/8 Inches
Interior Depth
23 1/2 Inches
Interior Height
10 1/2 Inches
13.6 Amps
60 Hertz
1 Phase
115 Volts
1,564 Watts
6.3 cu. ft.
Compressor Location
Bottom Mounted
Display Case Type
LED Lighting

Self Cleaning Condenser
Glass Style
(2) 3/4 HP
Installation Type
Number of Shelves
Plug Type
NEMA 5-20P
Refrigerant Type
Service Type
Self Service

Customer questions about this product

Can I put warm items in my air curtain merchandiser to chill them?

This unit is intended for maintaining cold product temperatures, but not for making warm items colder. For best results, items loaded into this unit should be pre-chilled to proper serving temperatures, and ambient conditions should not exceed 75 degrees Fahrenheit / 55 percent relative humidity.

Does free shipping apply to this Turbo Air item if I am shipping it to a residential address?

No. The manufacturer charges an $80 fee for non-straight truck deliveries and a $100 fee for straight truck deliveries to a residential address. Please contact our Customer Solutions team prior to placing your order if you have any questions.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My unit has an “-N” or “-N6” at the end of it, what does that mean?

-N means that the unit is R290, and -N6 means the unit is R600. The function of the unit is the same, this will mainly affect serviceability.

Ask your own question!

Turbo Air Refrigeration TOM-48L-UF-S-1S-N Details

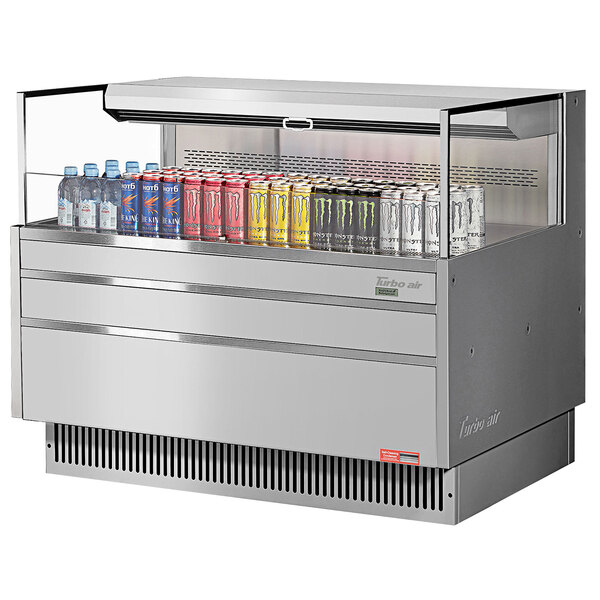

Grab passing customers' attention with this Turbo Air TOM-48L-UF-S-1S-N 47" stainless steel horizontal refrigerated open curtain merchandiser. Great for cafes and bakeries, this display case features a bottom stainless steel solid base that allows you to customize the interior of the unit to fit your needs. Whether it's individually wrapped desserts, delicious sandwiches, or fresh salads, you'll have no trouble finding the perfect interior configuration to accommodate your products. Plus, impulse sales are sure to increase thanks to the LED interior lighting.

Featuring a modern style with a stainless steel exterior, this merchandiser pairs a durable structure with a user-friendly design while maintaining high product visibility and aesthetic. It has a safety reinforced tempered glass front shield along with side walls that optimize the merchandiser's display effects. It also features an energy-saving night curtain and has a stainless steel interior including a back wall and deck pans. The Euro design of this unit will bring an elegant contemporary look to your store and products.

This merchandiser's standard back-guard, perforated interior back wall, and open top improve airflow. Its construction also boasts high-density cell insulation that's foamed with polyurethane and CFC-free. During operation, air circulates through the unit from front to back for rear air discharge and for more efficient airflow. It features a simple plug-in installation as well as a solar-powered digital thermometer and a digital electronic thermostat with defrost control to ensure that your products are always kept at a safe temperature.

For added convenience, this unit features Turbo Air's revolutionary Self-Cleaning Condenser System, which automatically cleans the condenser by moving a rotating brush up and down across its surface 2 to 3 times per day. Not only does this process eliminate the need for your employees to manually clean the condenser every few weeks, but it prevents dust from building up on the coils. In turn, this reduces the stress on the compressor and the risk of it breaking down, resulting in less maintenance calls and higher overall energy efficiency.

With the help of (2) 3/4 hp compressors, this unit is able to consistently maintain temperatures and keep your product chilled to perfection. The compressor even circulates R-290 hydrocarbon refrigerant, an eco-friendly refrigerant that boasts an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. This refrigeration system, along with high-density polyurethane insulation, helps conserve energy and provides an environmentally-responsible option great for any business trying to go green. This unit is installed with a cord and plug and requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 46 3/4"
Depth: 33"
Height: 38 3/8"
Capacity: 6.3 cu. ft.

Interior Dimensions:
Width: 44 3/8"
Depth: 23 1/2"
Height: 10 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • 5-20P


    This unit comes with a NEMA 5-20P plug.
