$3,376.44/Each

Ships free with Plus

Earn up to $101.29 back (10,129 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Digital temperature controls
  • Ergonomically designed swing door
  • Triple pane glass door with heat reflecting film
  • LED advertising panel
  • Foamed-in-place polyurethane insulation
  • Maintains temperatures between 10-15 degrees Fahrenheit
  • 1/2 hp bottom-mounted compressor
  • Environmentally-safe R290 refrigerant
UPC Code:400010909056

Turbo Air Refrigeration TGIM-23W-N Specs

Quantity
1/Each
Shipping Weight
320 lb.
Width
27 Inches
Depth
29 3/4 Inches
Height
78 1/4 Inches
Interior Width
23 Inches
Interior Depth
24 1/8 Inches
Interior Height
60 3/8 Inches
Amps
5.2 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Capacity
21 cu. ft.
Compressor Location
Bottom Mounted
Door Style
Swing
Door Type
Glass
Features
LED Lighting
Front Style
Flat
Horsepower
1/2 HP
Number of Doors
1 Door
Number of Shelves
3 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Refrigeration Type
Auto Defrost
Temperature
12 Degrees F
Type
Indoor

Customer questions about this product

Does free shipping apply to this Turbo Air item if I am shipping it to a residential address?

No. The manufacturer charges an $80 fee for non-straight truck deliveries and a $100 fee for straight truck deliveries to a residential address. Please contact our Customer Solutions team prior to placing your order if you have any questions.

How do I know which Turbo Air unit I will receive?

Depending on your location, you may receive a model slightly different from what is shown, and specs may vary. For example, you may see “N” or “N6” at the end of the model number. To confirm which unit you will receive, please contact one of our customer solutions specialists.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My unit has an “-N” or “-N6” at the end of it, what does that mean?

-N means that the unit is R290, and -N6 means the unit is R600. The function of the unit is the same, this will mainly affect serviceability.

What is the difference between cold wall refrigeration and auto defrost refrigeration?

The biggest difference between cold wall and auto defrost refrigeration is the amount of condensation created during the cooling process.

In a cold wall refrigeration system, or coil cooled system, a series of copper wires runs through the walls of the merchandiser. These copper wires radiate cold air into the cabinet in order to keep the ice cold. This causes condensation to occur on the walls of cold wall merchandisers, meaning they will need to be defrosted and cleaned regularly.

In an auto defrost refrigeration system, or forced air system, cold air is pumped into the cabinet using fans, which keeps your ice cold. This type of refrigeration system cuts down on the amount of condensation that forms inside the merchandiser, and the condensation that does form in the unit is removed by an automatic condensation evaporator system.

Ask your own question!

Turbo Air Refrigeration TGIM-23W-N Details

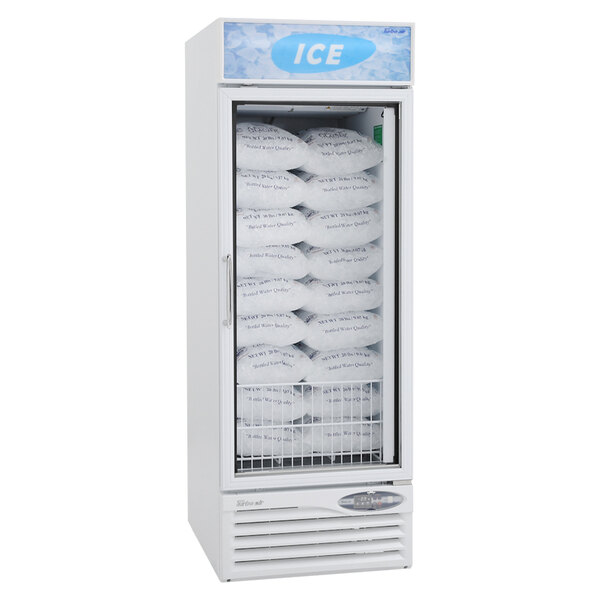

Eliminate ice melting issues with this Turbo Air TGIM-23W-N 27" white glass door ice merchandizer! Featuring a triple pane glass door, this merchandiser is designed to retain its temperature while effectively merchandising bags of ice for sale. Plus, unlike other ice freezers that use refrigeration systems, this Turbo Air unit uses a freezer system to keep ice from melting even in hot ambient conditions!

Made of stainless steel, this model is extremely durable and easy to clean. Its ergonomically designed swing door has both self-closing and stay-open features for ease of operation. Plus, to help draw customers in, this unit is complete with an LED merchandising panel as well as LED interior lighting.

A 1/2 hp bottom-mounted compressor along with high-density, foamed-in-place polyurethane insulation help maintain internal temperatures between 10-15 degrees Fahrenheit. The compressor runs on eco-friendly R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.Digital temperature controls make it easy to monitor the temperature of the unit to ensure optimal performance. Plus, a built-in alarm will sound when the door is not properly sealed. A 115V electrical connection is required for operation.

Overall Dimensions:
Width: 27"
Depth: 29 3/4"
Height: 78 1/4"

Interior Dimensions:
Width: 23"
Depth: 24 1/8"
Height: 60 3/8"
Capacity: 21.1 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

Need Parts & Accessories?

Show replacements and accessories for Turbo Air Refrigeration TGIM-23W-N today!

Resources and Downloads for
Turbo Air Refrigeration TGIM-23W-N

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Warranty does not apply to, and Turbo Air is not responsible for, any warranty claims made on products sold or used outside of the United States and Canada. RESIDENTIAL USERS: For units, the manufacturer charges an $80 fee for non-straight truck deliveries and a $100 fee for straight truck deliveries to a residential address.

Equivalent Items

Turbo Air Refrigeration TGIM-23 (Formerly)
