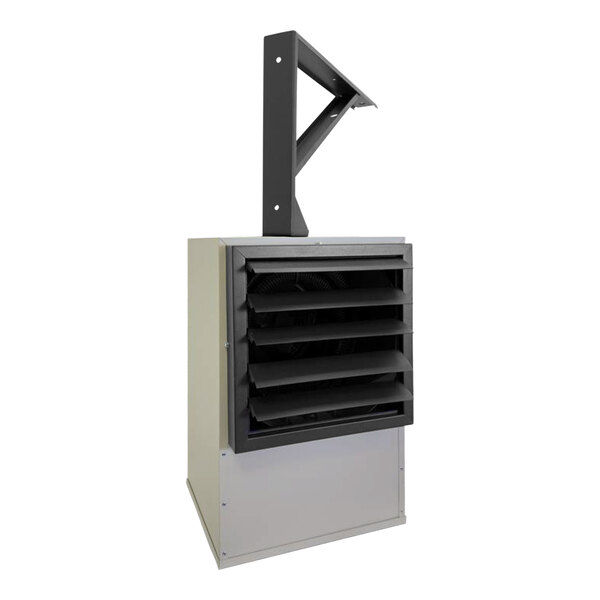

TPI UHE Series Horizontal Fan-Forced Unit Heater H1HUHE07CA1T - 7.5 kW, 240V, 1 Phase

TPI H1HUHE07CA1T Details

Provide heating in your industrial or commercial environment with this TPI UHE series heater! This heater features a fully enclosed, permanently lubricated 7.5 kW motor, and it throws warm air up to 36' away. This motor operates at a rate of 575 CFM, and it is mounted with rubber insulators to minimize vibration and noise. This is paired with an efficient fan assembly that is safely enclosed by a heavy-gauge, chrome-plated wire guard. This model includes individually adjustable louvers, allowing you to direct the airflow wherever you need it. The entire assembly can also be repositioned in the field to direct air downwards or upwards and to the left or right.

This unit features a heavy-gauge welded steel cabinet with a powder-coated finish for long-lasting durability. It utilizes a circular, copper-clad steel sheath heating element with continuously brazed steel fins. These fins are formed to match the air delivery pattern of the fan blade, ensuring even heating. For safe use, this unit comes equipped with an automatic reset limit to deenergize the heater if it overheats. A built-in, single-pole thermostat makes it easy to adjust the temperature.

This unit comes with a hanger bracket for easy mounting on the wall or ceiling. It mounts in a vertical position only with the motor shaft in the horizontal position or in a 45-degree downward position. It also has pre-drilled holes and installed threaded nuts for hanging by 1/4" threaded rods. This heater has a control compartment with a hinged, latched access door for simple wiring installation and maintenance. It comes complete with a built-in contactor to control the flow of electricity and a transformer to regulate the voltage. It requires a 240V, 1 phase electrical connection for operation.

Overall Dimensions:
Length: 13"
Width: 11"
Height: 20"
