Product Overview

  • 24" diameter fan head offers convenient workspace cooling
  • 3 speed settings ensure versatility to suit the space and ambient temperature
  • Features a fan head that rotates 360 degrees vertically and horizontally
  • OSHA-compliant wire front and rear guards for maximum safety
  • 1/4 hp motor delivers up to 3,800 CFM; 120V, 1 Phase
UPC Code:686334877558

TPI U24TEHV Specs

Quantity
1/Each
Shipping Weight
33.6 lb.
Width
26 Inches
Depth
10 1/2 Inches
Height
27 Inches
Diameter
24 Inches
Power Cord Length
10 Feet
Amps
2.7 Amps
Phase
1 Phase
Voltage
120 Volts
Color
Gray
Horsepower
1/4 HP
Material
Steel
Max CFM
3,800 CFM
Min CFM
3,400 CFM
Motor Type
Open Ventilated
Plug Type
NEMA 5-15P
Rotation
360 Degrees
Speeds
3
Style
Tilt Head
Type
Wall-Mount Fans

TPI U24TEHV Details

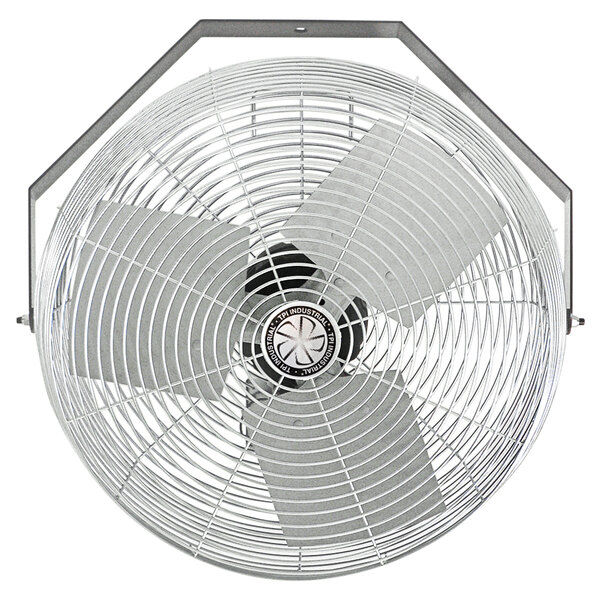

Maintain a comfortable work environment by cooling down your facility with this TPI U-24-TE-HV 24" 3-speed tilt head high velocity industrial wall-mount fan. This fan features a 24" diameter fan head that creates a large cooling area that's perfect for warehouses, schools, offices, and other large spaces. With 3 speed settings and a 1/4 hp motor, it reaches up to 3,800 CFM on the highest setting. The lower settings provide extra versatility, allowing the fan to meet a variety of needs and cooling preferences. Plus, the fan head rotates 360 degrees vertically and horizontally to best fit your needs.

Made of steel, the fan provides commercial-grade durability to last for years in your warehouse, office, or classroom. It's even great for back-of-house foodservice applications. It also includes OSHA-compliant coated steel guards, preventing injury from the whirling blades. Simply mount the fan to the wall where you need it most, and enjoy its cooling performance when the temperature rises. This fan is designed for optimal cooling and reliability to help you remain comfortable on even the hottest day of the year. This fan turns on and off easily with a pull chain switch. A 120V electrical connection is required for operation.

Overall Dimensions:
Width: 26"
Depth: 10 1/2"
Height: 27"
Diameter: 24"
Cord Length: 10'

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including chromium (hexavalent compounds), which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
