Size: 12"
Product Overview
- 3 speed settings ensure versatility to suit your commercial or industrial facility
- Durable 12" aluminum blade protected by steel wire guards
- Includes a pull chain for easy operation
- Space-saving design mounts from inside the wall
- Powerful 1/12 hp motor delivers up to 825 CFM; 120V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 12 lb.
- Width
- 14 1/2 Inches
- Depth
- 7 3/16 Inches
- Height
- 14 1/2 Inches
- Fan Diameter
- 12 Inches
- Amps
- 1.1 Amps
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Color
- Silver
- Features
- Made in America
- Frame Material
- Steel
- Horsepower
- 1/12 HP
- Max CFM
- 825 CFM
- Motor Type
- Direct Drive
- Plug Type
- Hardwire
- RPM
- 1,560 RPM
- Speeds
- 3 Speed
- Style
- Fixed
- Type
- Venturi-Mounted Fans
TPI CE12DV Details

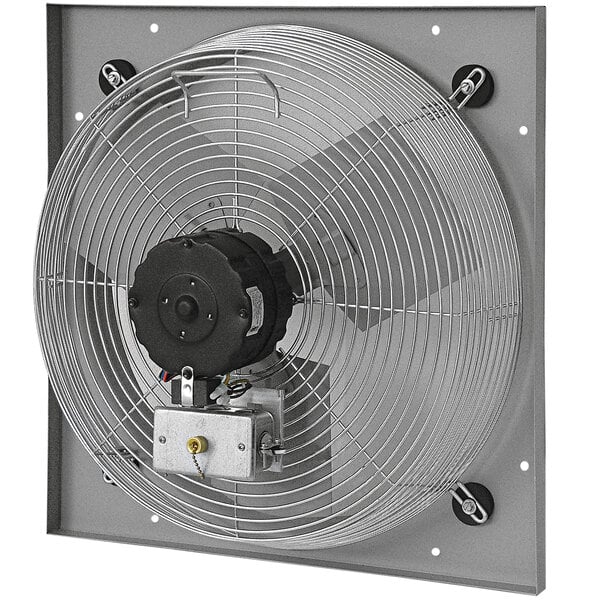

Improve air quality in your industrial or commercial establishment with this TPI 12" 3-speed venturi-mounted direct drive exhaust fan CE12DV! Installed from inside the wall, this high-speed fan quietly operates to provide ventilation and improve airflow in your facility. It features 3 speed settings and a powerful 1/12 hp motor, allowing it to reach up to 825 CFM on the highest setting. Plus, the lower settings provide extra versatility to ensure the fan meets a variety of needs and preferences. To easily switch between speed settings, it has a pull chain for simple operation.
This rugged fan includes a durable 12" aluminum blade protected by steel spiral wire guards for optimal safety. The split capacitor motor is completely enclosed, and it features a permanently lubricated sleeve bearing to ensure low-maintenance use and to prevent overheating. This unit requires a 120V, 1 phase electrical connection. It must be hardwired; it includes a no-cord junction box enclosure for direct wiring.
Overall Dimensions:
Diameter: 12"
Width: 14 1/2"
Depth: 7 3/16"
Height: 14 1/2"
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
