$13,349.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Blast chills up to 58 lb. of product in 2 hours; shock freezes up to 40 lb. of product in 4 hours
- Accommodates up to (6) 2 1/2" deep, full size food pans
- Microcontroller technology features an output that connects to a printer for HACCP documentation
- Standard cycles include soft chill, hard chill, shock freeze, and evaporator defrost
- One food probe and one air probe for each cavity included
- Two stainless steel wire shelves for optimal organization
- Cabinet and left-hinged doors are foamed-in-place using CFC-free polyurethane insulation
- 208V; 9600 BTU/H
- Quantity
- 1/Each
- Shipping Weight
- 350 lb.
- Width
- 28 3/4 Inches
- Depth
- 25 3/8 Inches
- Height
- 68 1/8 Inches
- Interior Width
- 21 1/8 Inches
- Interior Depth
- 15 3/4 Inches
- Interior Height
- 11 5/8 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208 Volts
- Capacity
- 58 lb.
- Compressor Location
- Top Mounted
- Door Style
- Swing
- Installation Type
- Freestanding
- Number of Doors
- 2 Doors
- Plug Type
- NEMA 6-15P
- Refrigerant Type
- R-404A
- Temperature Range
- 0 - 37 Degrees F
- Total BTU
- 9,600 BTU/H
Thermo-Kool TK2C-2 Details

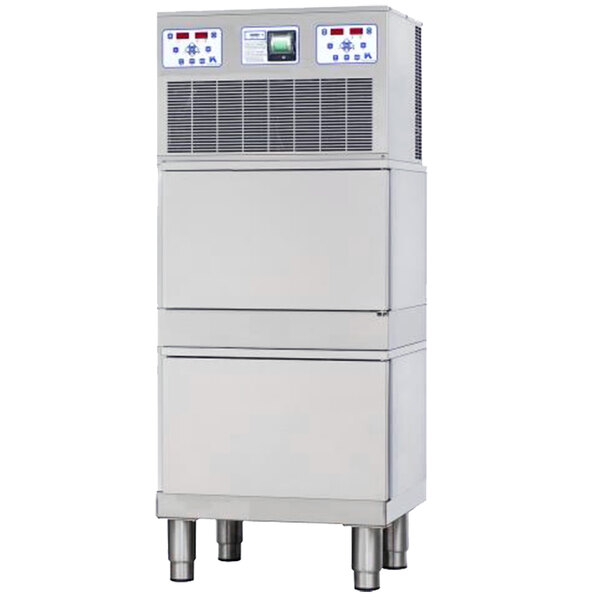

Cool foods quickly and safely with the Thermo-Kool TK2C-2 6 pan reach-in commercial blast chiller! This blast chiller has two independent cavities, allowing the operator to only open one section at a time, preventing cold air from escaping and keeping the unit functioning efficiently. Designed to prevent surface freezing and preserve the nutritional value of your foods, this blast chiller features unique microcontroller technology per section that monitors and controls internal temperatures while operating in fully automatic or manual mode. Because it uses both an air and food probe in each cavity, the controls are able to accurately detect product temperatures, allowing the unit to blast chill up to 58 lb. of product from 165 to 37 degrees Fahrenheit within two hours, or shock freeze up to 40 lb. of product from 165 to 0 degrees Fahrenheit within four hours total. The controllers come equipped with a RS232 serial output that can be connected to a printer or PC device for complete HACCP documentation purposes.
The unit comes preprogrammed with four standard cycles: soft chill, hard chill, shock freeze, and evaporator defrost, which immediately gives you a simple yet diverse set of options upon delivery! For maximum temperature retention, the CFC-free polyurethane insulated cabinet and doors keep products at food safe temperatures. The spacious interior accepts up to (6) 2 1/2" deep full size food pans, while two stainless steel wire shelves optimize internal organization. This not only gives you the flexibility needed to accommodate a wide range of product but also, along with the stainless steel construction, makes cleaning incredibly simple. The 9600 BTU compressor runs on environmentally-friendly R-404A refrigerant. This unit requires a 208V electrical connection for operation.
Overall Dimensions:
Width: 28 3/4"
Depth: 25 3/8"
Height: 68 1/8"
Interior Dimensions (per cavity):
Width: 21 1/8"
Depth: 15 3/4"
Height: 11 5/8"
6-15P
This unit comes with a NEMA 6-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
