Product Overview

  • Open design increases impulse sales
  • Self-contained, slide out refrigeration system with microprocessor-controlled temperature sensor
  • Environmentally friendly EnergyWise design reduces energy consumption by more than 50%
  • Removable deck pan for easy servicing of the evaporator coil and refrigeration connections
  • Maintains product temperatures of 40 degrees Fahrenheit or lower; 208-240V
UPC Code:400013820860

Structural Concepts B6624 Specs

Quantity
1/Each
Shipping Weight
1100 lb.
Width
66 3/8 Inches
Depth
24 1/4 Inches
Height
82 3/8 Inches
Amps
13.91 Amps
Phase
1 Phase
Voltage
208 - 240 Volts
Wattage
2,591 Watts
Compressor Location
Bottom Mounted
Display Case Type
Refrigerated
Features
LED Lighting  Lighted Interior  Made in America
Front Style
Open-Air
Installation Type
Freestanding
Number of Shelves
4 Shelves
Plug Type
NEMA 6-20P
Refrigerant Type
R-404A
Sections
1 Section
Service Type
Self Service
Style
Vertical
Temperature
40 Degrees F

Structural Concepts B6624 Details

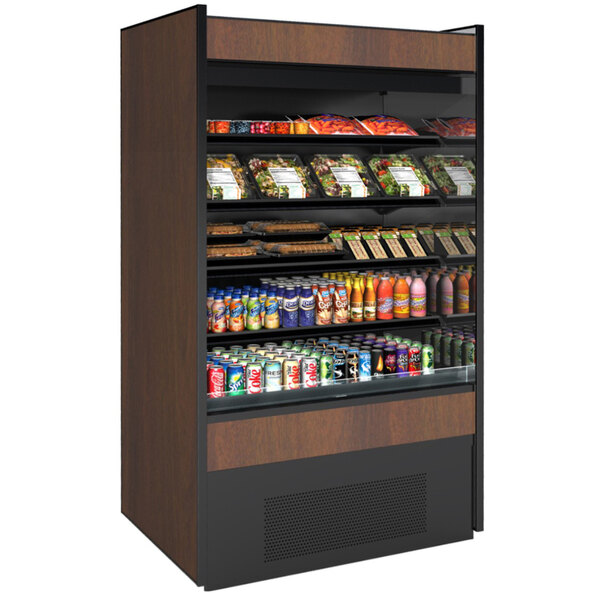

The Structural Concepts B6624-QS Oasis 66 3/8" air curtain merchandiser is a great grab-and-go solution for your deli, bakery, convenience store, coffee shop, or market! This refrigerated air curtain merchandiser maintains product temperatures of 40 degrees Fahrenheit while providing easy access and an attractive display to increase impulse sales. Compared to competitor units, the environmentally-friendly EnergyWise design will reduce your energy consumption by a staggering 50% or higher, which significantly lowers operating costs.

Featuring an exclusive "Breeze-E" design with flexible synthetic hosing, the refrigeration system easily slides out of the unit for quick and efficient servicing. This intelligent system has a microprocessor-controlled sensor that senses and adjusts to ambient temperature conditions. This results in more consistent product temperatures and longer product shelf life! The bottom mounted compressor ensures easy maintenance and increases efficiency because it draws air from the coolest area of your establishment. Plus with removable deck pans, you'll have full access to the evaporator coils and refrigeration connections.

Each of the 4 shelves is removable and can be adjusted on 1" centers, providing you with the ability to customize the interior of your unit to best suit the products you are displaying. An attractive black interior and full end panels with a mirrored interior help attractively showcase your products. The top light will illuminate your products as well, which helps to create an eye-catching display. This energy-efficient air curtain merchandiser requires a 208-240V electrical connection.

Overall Dimensions:
Width: 66 3/8"
Depth: 24 1/4"
Height: 82 3/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Are there any restrictions on the placement of this air curtain merchandiser?

This unit should not be placed in direct sunlight and requires a clearance of at least 15' from exterior doors, overhead HVAC vents, or any other air curtain disruption. Also, this merchandiser's condenser has a front air intake and rear discharge so the front panel cannot be blocked and the unit must be placed 4" from the wall for proper functionality.

Can I put warm items in my air curtain merchandiser to chill them?

This unit is intended for maintaining cold product temperatures, but not for making warm items colder. For best results, items loaded into this unit should be pre-chilled to proper serving temperatures, and ambient conditions should not exceed 75 degrees Fahrenheit / 55 percent relative humidity.

What does the -QS or -E3 mean at the end of the manufacturer's item number?

These suffixes relate to the shipping time. QS stands for Quick Ship, which usually ships in 10 business days. E3 stands for Express 3 and usually ships in 3 business days.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 6-20P

    6-20P

    This unit comes with a NEMA 6-20P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

Resources and Downloads for
Structural Concepts B6624

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.

Equivalent Items

Structural Concepts B62-QS
