Stiebel Eltron 234046 SHC 4 Point-of-Use 4 Gallon Mini-Tank Electric Water Heater - 120V, 1.3 kW

Item number  798234046MFR number  234046

$239.00/Each

Contact us or for pricing

Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST

What We Offer

shield icon

Protect Your Product

Coverage starting at $21.63

Earn up to $7.17 back (717 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Easily mounts to a wall with the included bracket and simply plugs into the wall
  • Saves water and energy by reducing long pipe runs and reducing standby heat loss

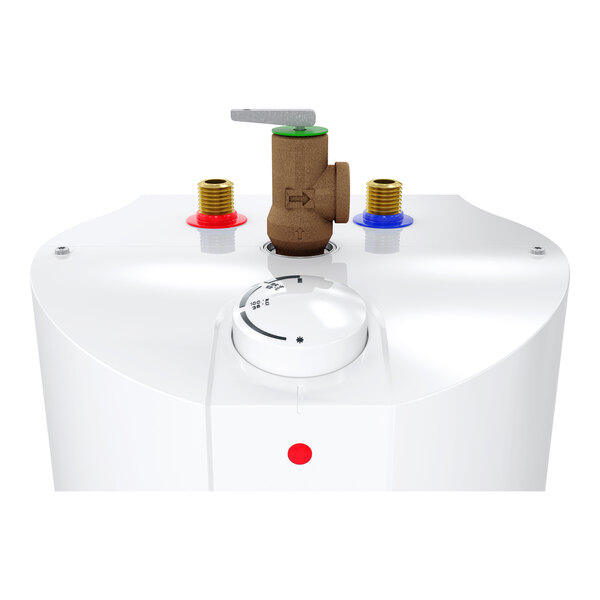

  • Glass-lined tank comes with a T&P valve and brass water connections
  • Features a fast recovery time of 27 minutes
  • Compact, light weight construction with a sleek design makes it easy to install

UPC Code:400011130947

Other Products from this Line

Stiebel Eltron 234046 Specs

Quantity
1/Each
Shipping Weight
22.4 lb.
Width
12 5/8 Inches
Depth
12 1/2 Inches
Height
19 3/4 Inches
Amps
11.3 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Wattage
1.3 Kilowatts
Application
Single Point of Use
Installation Type
Stationary
Maximum Pressure
150 PSI
Maximum Temperature
140 Degrees F
Plug Type
NEMA 5-15P
Power Type
Electric
Style
With Tank
Tank Capacity
4 Gallons
Type
Water Heaters
Usage
Undercounter
Water Inlet Size
1/2 Inches

Stiebel Eltron 234046 Details

If you're storing 30 gallons or more of hot water in a traditional water heater when your application requires much less than that, the Stiebel Eltron 234046 SHC 4 gallon mini tank water heater provides you with a convenient, efficient alternative! This water heater is designed for installation at the point of use to provide hot water for handwashing or kitchen type applications either as a stand-alone hot water source or as a booster for a remote central tank. This unit features a 4 gallon tank and can easily be mounted to a wall with the included bracket and simply plugged into the wall with the included 43" long cord - no special hardwiring required.

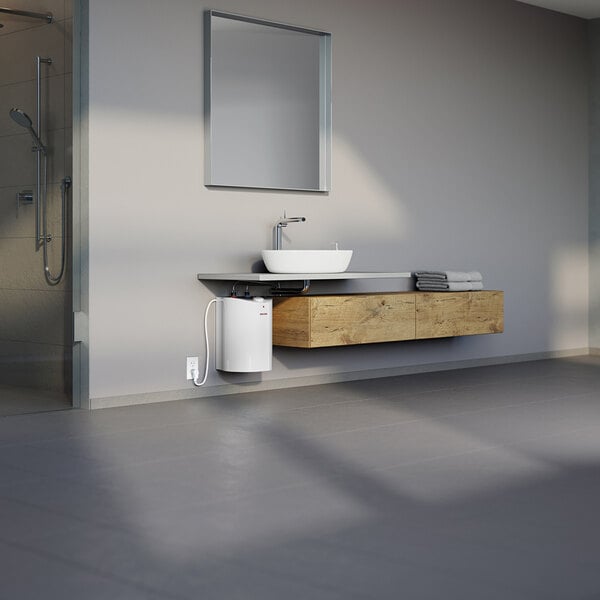

Easily mount it right under your sink or nearby. By using a smaller tank directly at the point-of-use, you not only save water by reducing long pipe runs from a central hot water tank, but you also save energy by reducing standby heat loss associated with larger tanks! This glass-lined tank comes with a T&P valve for your convenience and is equipped with brass 1/2 NPT water connections. It also has a fast recovery time of 27 minutes. This electric water heater features a compact, light weight construction with a sleek design that makes it easy to install almost anywhere! It requires a 120V, 1.3 kW electrical connection for operation.

Overall Dimensions:
Width: 12 5/8"
Depth: 12 1/2"
Height: 19 3/4"
Capacity: 4 gallons

Attention CA Residents:
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

  • WQA

    WQA

    This item has been tested and certified to water treatment industry standards by the Water Quality Association.
