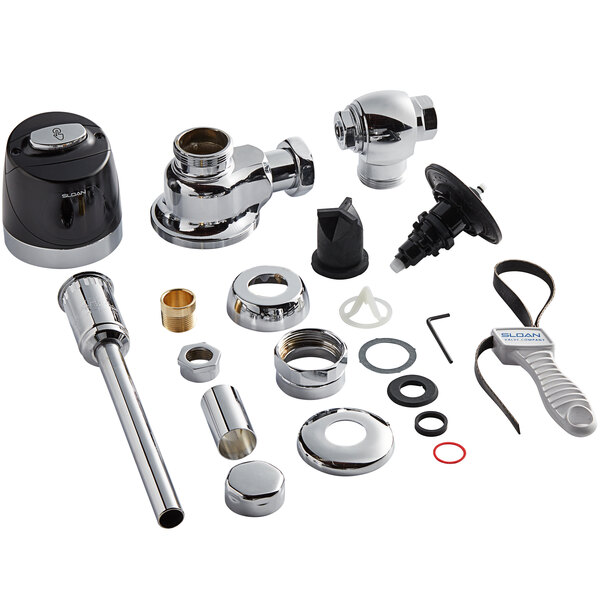

Sloan 3790013 8186-1.0 Polished Chrome Single Flush Sensor Flushometer for Urinals (1 GPF)

Sloan 3790013 Details

This Sloan 3790013 8186-1.0 sensor-operated flushometer is the smart choice for urinals in your commercial restroom. Boasting a versatile chrome-plated finish that complements nearly any design aesthetic, this flushometer lends a subtle, modern accent to your urinal fixtures. It also provides the quality and usability you expect and depend on, with a valve body made from semi-red brass for durability, and key components that incorporate PERMEX rubber compound for chloramine resistance.

This flushometer is a great option for improving health and sanitation measures because it removes a common point where germs can transfer from one person to another, the urinal handle. It uses an infrared sensor to provide touch-free operation; multiple lobular sensing fields allow both high and low target detection for maximum reliability, but it also comes with a courtesy flush override button if manual use is required. It is a single flush unit, and uses 1 gpf.

The sensor is powered by 4 "AA" batteries (included), which provide up to 6 years of power before they need changed. A "low battery" flashing LED light alerts you when the batteries are getting low, giving you time to buy replacements before they are fully depleted. It also features an engineered plastic cover with a replaceable lens window, and a linear filtered bypass. It is designed to not allow external volume adjustment, which protects against tampering and helps conserve water for your business.

Additional features include a PERMEX rubber diaphragm, a 3/4" IPS screwdriver angle stop with a vandal-resistant stop cap, and a sweat solder adapter with a cover tube and cast wall flange. It uses a top spud fixture connection with a 3/4" spud coupling. It requires a 3/4" supply pipe and 11 1/2" rough-in.

Overall Dimensions:
Rough In: 11 1/2"
