Product Overview
- Single flush design, 1.5 gpf
- Automatic sensor uses 4 "AA" alkaline batteries (included), "low battery" LED indicator
- Top spud fixture connection for urinals, 3/4" coupling, 3/4" supply pipe
- Brass valve body, polished chrome finish
- Prevents external volume adjustment to ensure water conservation
- Quantity
- 1/Each
- Shipping Weight
- 7.5 lb.
- Features
- ADA Compliant Made in America
- Gallons per Flush
- 1.5 Gallons
- Style
- Automatic
- Type
- Flush Valves Urinal Valves
- Water Inlet Size
- 3/4 Inches
Customer questions about this product
Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Sloan 3250403 Details

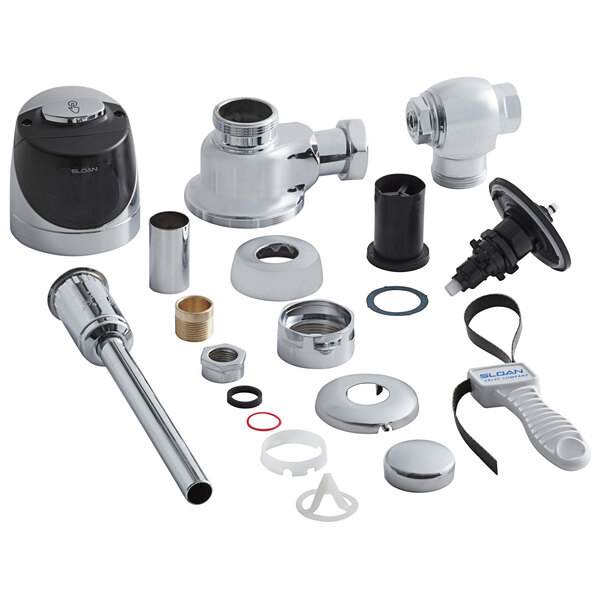

This Sloan 3250403 G2 8186-1.5 sensor-operated flushometer is the smart choice for urinals in your commercial restroom. Boasting a versatile chrome-plated finish that complements nearly any design aesthetic, this flushometer lends a subtle, modern accent to your urinal fixtures. It also provides the quality and usability you expect and depend on, with a valve body made from semi-red brass for durability, and key components that incorporate PERMEX rubber compound for chloramine resistance.
This flushometer is a great option for improving health and sanitation measures because it removes a common point where germs can transfer from one person to another, the urinal handle. It uses an infrared sensor to provide touch-free operation; multiple lobular sensing fields allow both high and low target detection for maximum reliability, but it also comes with a courtesy flush override button if manual use is required. It is a single flush unit, and uses 1.5 gpf.
The sensor is powered by 4 "AA" batteries (included), which provide up to 6 years of power before they need changed. A "low battery" flashing LED light alerts you when the batteries are getting low, giving you time to buy replacements before they are fully depleted. It also features an engineered metal cover with a replaceable lens window, and a fixed metering bypass. It is designed to not allow external volume adjustment, which protects against tampering and helps conserve water for your business.
Additional features include a flex tube diaphragm for added durability, a 3/4" IPS screwdriver angle stop with a vandal-resistant stop cap, and a sweat solder adapter with a cover tube and cast set screw wall flange. It uses a top spud fixture connection with a 3/4" spud coupling. It requires a 3/4" supply pipe and 11 1/2" rough-in.
Overall Dimensions:
Rough In: 11 1/2"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
