Product Overview

  • Provides accessible mounting for your water supply
  • Mounts directly to a vertical stud or between studs
  • Supply line can be installed above or below the plate
  • Includes a debris cover for protection during the rough-in phase
  • Comes with a 3/8" lead-free brass valve and a 1/2" PEX crimp connection
UPC Code:10739236402360

Sioux Chief 699-A1-XR Specs

Quantity
1/Each
Shipping Weight
0.1 lb.
Width
4 1/2 Inches
Height
4 1/2 Inches
Features
Lead Free  Made in America
Material
ABS Plastic  Polyethylene
Maximum Pressure
150 PSIG
Temperature Rating
200 Degrees F
Type
Access Panels  Mechanical Parts
Water Inlet Size
1/2 Inches  3/8 Inches

Sioux Chief 699-A1-XR Details

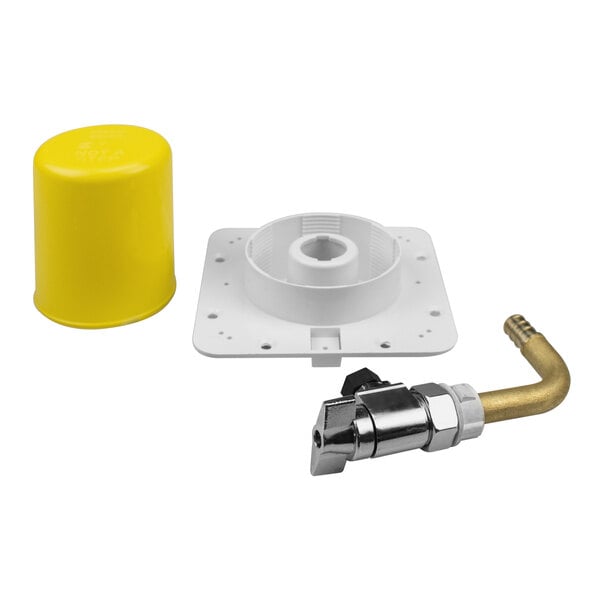

Equip your plumbing system with this Sioux Chief ProPlate supply access plate. This plate provides accessible mounting for your water supply. It is designed to mount directly to a vertical stud or between studs for convenient access. It can be mounted by installing the bracketing through the integral track or affixing the box through the flange holes. The supply line can be installed above or below the plate.

This supply access plate is constructed of durable ABS. It comes with a polyethylene debris cover to protect the valve and connection during the rough-in phase. It has a maximum working temperature of 200 degrees Fahrenheit and a maximum working pressure of 150 PSIG. This unit comes with a 3/8" lead-free brass valve and a 1/2" PEX crimp connection.

Overall Dimensions:
Width: 4 1/2"
Height: 4 1/2"

Attention CA Residents:
  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • Lead Free

    Lead Free

    This item's manufacturing process does not use lead as an additive.

  • Made in America

    Made in America

    This item was made in the United States of America.
