Size: 9" - 16"

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Supports stub outs, shower valve / tree assemblies, and water supply lines during installation
  • Corrosion-resistant, 20 gauge galvanized steel bracket
  • Adjusts telescopically from 9" to 16" to fit between stud bays or joist cavities
  • Comes with 2 TouchDown clamps to secure and support tubes, pipes, and plastic or steel conduit
  • Features dual fastening tabs on each end to secure the bracket to the stud
UPC Code:739236266354

Sioux Chief 523-1620 Specs

Quantity
1/Each
Shipping Weight
0.3 lb.
Length
9 - 16 Inches
Width
5/8 Inch
Height
1/2 Inch
Features
Made in America
Gauge
20 Gauge
Material
Galvanized Steel
Type
Brackets  Mechanical Parts

Sioux Chief 523-1620 Details

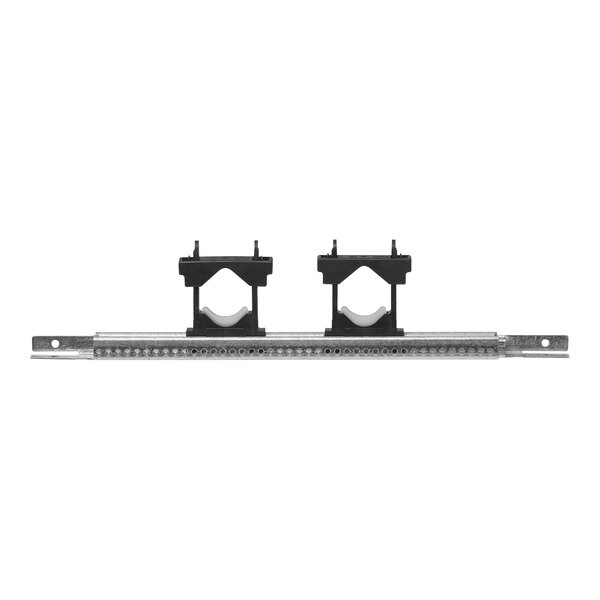

Enhance your installation process with this Sioux Chief PowerBar bracket system! This system is designed to support stub outs, shower valve / shower tree assemblies, and water supply lines throughout rough-in phases of installation. It provides a convenient and affordable alternative to cutting wood blocks and using metal studs. This bracket is constructed of high-quality, 20 gauge galvanized steel for corrosion resistance and superior durability and support. It adjusts telescopically from 9" to 16" to fit between stud bays or joist cavities.

This bracket has 1/8" pilot holes on three sides of the bracket to easily fasten on clamps and fittings, while the dual fastening tabs on each end firmly secure the bracket to the stud. It comes pre-loaded with 2 TouchDown clamps to secure and support tubes, pipes, and plastic or steel conduit. These clamps are UV-resistant, and they have an elastomer base insert to reduce noise.

This bracketing system is compatible with copper, PEX, and CPVC, and it is IAPMO certified. It requires 4 screws (sold separately) to fasten the bracket in all four tabs. It can hold up to 90 lb. at a 9" bracket span, up to 82 lb. at a 12" bracket span, and up to 66 lb. at a 15" bracket span.

Overall Dimensions:
Length: 9" - 16"
Width: 5/8"
Height: 1/2"

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
