- Features a bright, easy-to-read exit sign and two LED emergency lights
- Includes a rechargeable NiCad battery backup for 90 minutes of emergency illumination
- Durable, premium die-cast aluminum housing
- Field selectable knockout chevron directional indicators
- Requires a 120/277V electrical connection
- Shipping Weight
- 5 lb.
- 12 1/2 Inches
- 2 3/8 Inches
- 11 3/4 Inches
- 120/277 Volts
- Battery Life
- 90 Minutes
- Battery Type
- 8.4V NiCad battery
- 1 Number of Face
- Housing Type
- Lettering Color
- NFPA Compliant
- Exit Sign Combo

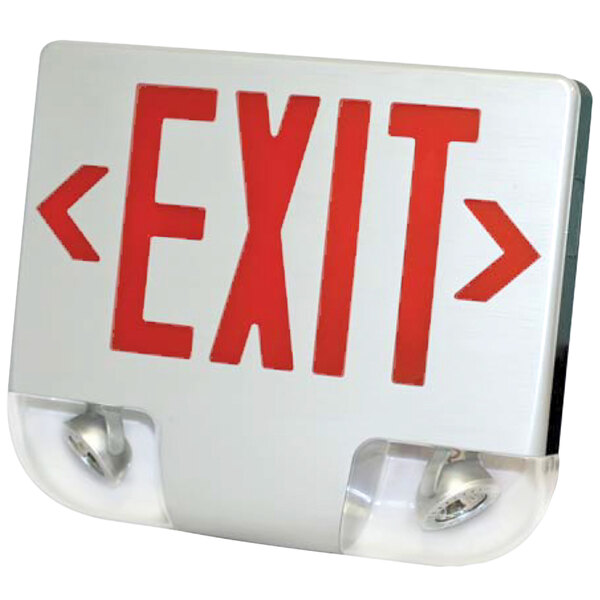

Be prepared with this Lavex Industrial single face white exit sign and emergency light combination with red lettering and battery backup! This unit offers both a large, lighted exit sign and a dual emergency light, all in one unit so that you do not have to worry about purchasing multiple units. Plus, it comes with a battery backup so that even if the power goes out your emergency exits will still be clearly visible.
This unit features high performance, premium grade, ultra-bright white LED emergency lamps, one on each side of the exit sign. That is in addition to the energy efficient, long-life colored lights that illuminate the word "EXIT" on the sign's face. There is an internal solid state transfer switch that automatically connects the internal battery to the LED lights for a minimum of 90 minutes of emergency illumination.
To make sure that the light keeps working even when the power is out, this unit comes with an 8.4V long-life, maintenance-free, rechargeable NiCad battery. Inside the unit is a fully automatic charger that keeps the battery charged and ready to use. Plus, there is a charge rate and power on LED indicator light with a test button on the unit so that you can periodically check that it is functioning properly.
This exit sign features a premium die-cast housing made of durable extruded aluminum with a white powder coating. The low profile unit saves space and is quick and easy to install. It comes prepared for wall mounting and the face plate quickly snaps in place after it is mounted. An aluminum canopy is included for use in cases where the sign needs to be top or end mounted. Plus, the unit features in-the-field knockout chevron directional indicators so that you can choose which way you want the sign to point.
This unit requires a 120/277V electrical connection for operation and is approved for use in damp locations.
Width: 12 1/2"
Depth: 2 3/8"
Height: 11 3/4"
Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.
