Product Overview

  • Controls a single heating or cooling system only
  • 5/1/1 and 7-day programmable
  • Backlit digital display shows current temperature, set point, and key system information
  • Includes auto changeover, swing adjustments, and adjustable set point limits
  • Horizontally or vertically mounts on a wall or junction box (hardware sold separately)
UPC Code:0095247201631
View all Pro1 Commercial Thermostats

Pro1 T805 Specs

Quantity
1/Each
Shipping Weight
0.75 lb.
Width
4 11/16 Inches
Depth
1 1/8 Inches
Height
4 7/16 Inches
Voltage
24 Volts
Battery Type
AA
Color
White
Control Type
Digital
Features
Backlight Programmable
Maximum Temperature
99 Degrees F
Minimum Temperature
25 Degrees F
Plug Type
Hardwire
Power Type
Battery Electric
Type
Thermostats

Pro1 T805 Details

Easily adjust the temperature of your space with this Pro1 800 family digital thermostat. This thermostat controls a single heating or cooling system only. It has simple buttons to adjust the temperature from 25 to 99 degrees Fahrenheit, and it can be set to control either an electric or gas furnace. It offers easy menu-driven programming, and it is both 5/1/1 and 7-day programmable. It also has a programmable fan speed. Its convenient keypad lockout prevents unauthorized or accidental changes to the settings.

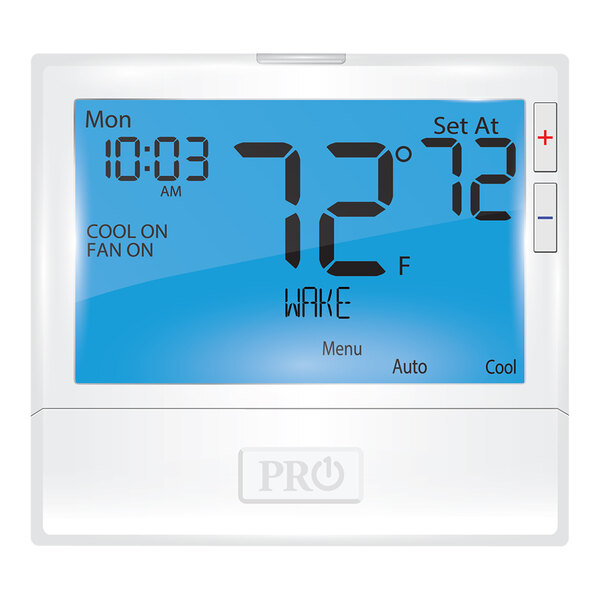

This unit features an 8 sq. in. digital display with a blue back light to clearly display the current temperature, set point, and key system information. This display also shows other features such as the time and day of the week and program time periods. Plus, it shows intuitive wake, leave, return, and sleep programming icons. Its glow-in-the-dark light button makes it easy to navigate the settings in the dark.

This thermostat features auto changeover to automatically switch between heating and cooling based on the programmed settings and current temperature. It has separate heating and cooling swing adjustments from 0.2 to 2 degrees. Its room temperature calibration ensures that the thermostat accurately reflects the temperature of your space. This unit also features adjustable set point limits, and it has a permanent memory to store and retrieve settings. Its universal subbase system horizontally or vertically mounts on a wall or junction box (hardware sold separately). It is easy to install with color-coded terminal blocks.

This thermostat features a convenient filter change reminder to remind you to change the air filter in your HVAC system. It features an ambient operating temperature of 32 to 105 degrees Fahrenheit. It requires a 24V AC electrical connection for operation, but it can also be operated or backed up using (2) AA batteries (sold separately). Its easy-access battery compartment makes it easy to add or change out batteries. This unit has a 5-minute compressor delay to prevent short cycling. Keep your facility at the perfect temperature with this thermostat.

Overall Dimensions:
Width: 4 11/16"
Depth: 1 1/8"
Height: 4 7/16"

Attention CA Residents:
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
