Product Overview

  • Customizable options for a tailor-made unit with more roast control
  • Compatible with roast profiling software like Cropster, Artisan, Roast Logger, and others
  • High-efficiency infrared gas burners
  • Independent drum and cool-down motors allow you to roast and cool beans simultaneously
  • 110V with cord and plug provided, 1/2" gas connection
UPC Code:400015492638
Customizable Commercial Coffee Roasters

Primo XR-3BG Specs

Quantity
1/Each
Shipping Weight
700 lb.
Width
26 Inches
Depth
38 1/2 Inches
Height
74 Inches
Voltage
110 Volts
Color
Black
Drum Capacity
3 kg. (6 lb.)
Features
Customizable  Internal Cyclone
Finish
Glossy
Hourly Production
9 kg. (20 lb.)
Roaster Shipping Type
Customizable Roasters
Type
Coffee Roasters

Primo XR-3BG Details

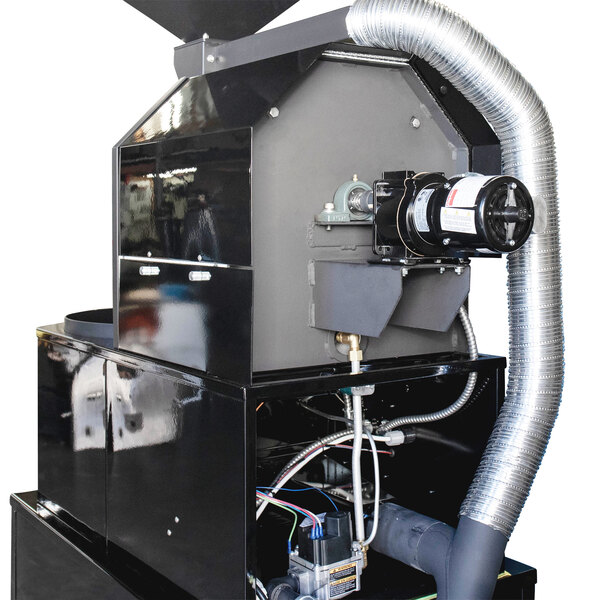

The Primo GENESIS-Xr3 glossy black 3 kg (6 lb.) customizable coffee roaster delivers the reliability and custom features you need to bring expertly-crafted coffee to your customers! Featuring a 3 kg (6 lb.) drum capacity and capable of producing up to 9 kg (20 lb.) per hour, it's an excellent choice whether you're just getting your roasting business started, or you're looking to expand production. This coffee roaster is available with a host of customizable features that let you build the perfect machine for your roasting business. It comes standard with high-efficiency infrared burners and a single-wall roasting drum, or you can upgrade to the double-wall drum option for the maximum level of heat distribution and uniform roast. Inside the drum, Primo's specially-designed paddles work to keep mixing consistent and ensure that your product receives the right blend of conductive and convective heat for perfectly roasted beans and rich, flavorful coffee every time. This unit includes 2 thermocouples to measure the drum air temperature and the bean temperature - this allows you to track your temperatures and create the perfect roast.

For the operator who wants full control over the roast process, this unit gives you the ability to manipulate as much or as little of your workflow as you like and make changes. A digital time / temperature touchscreen display make it easy to see how the roast is progressing and make changes. This unit features pre-set, no-fuss drum speed and airflow speed settings. But if you want to manipulate those factors, you can upgrade the controller to include a dial for manual drum speed and / or manual airflow control. It also comes standard with a USB connection port and is compatible with all standard profiling software, including popular products like Cropster, Artisan, and Roast Logger. This is especially useful for operators looking to log their data or create roast profiles. Connect a tablet or computer via USB to track your roast's turning point, first crack, and how bean temperature is progressing, allowing you to replicate successful recipes in the future and provide a consistent product to your customers time after time.

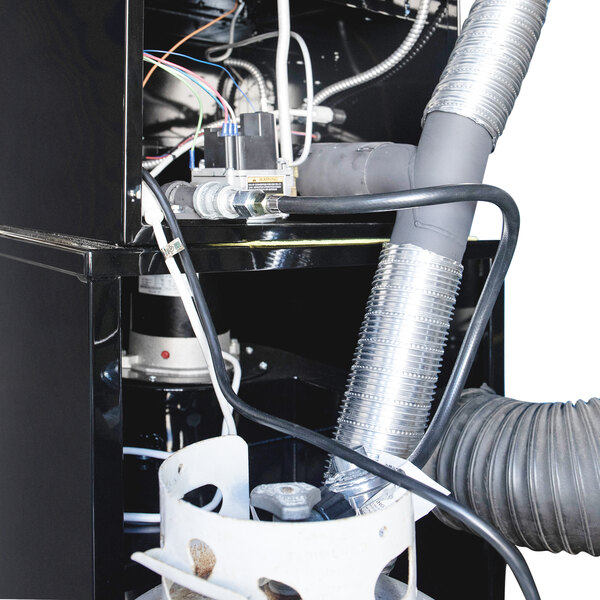

Additionally, this roaster lets you begin roasting a second batch without interruption while the first batch is cooling, thanks to independent drum and cool-down motors. The internal cyclone features an accessible chaff bin at the bottom, making it easy to collect and dispose the husks from green coffee beans as they separate during roasting. Additionally, hinged sidewalls make cleaning easy. Other smart features include two viewing windows on the front of the roaster, which let you check on the progression of your roast visually, and a sample trier that lets you pull out a few beans for a closer look at color, smell, and other variables during the roast cycle.

It features an attractive glossy black finish that looks great in any installation, but a variety of color options are available to help you develop the perfect look for your business. This roaster requires a 110V electrical connection and comes with a cord and NEMA 5-15P plug. You can also choose your preferred fuel type, propane or natural gas, which requires a 1/2" NPT connection. This roaster comes with a single 6" exhaust vent.

Overall Dimensions:
Width: 26"
Depth: 38 1/2"
Height: 74"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Do I need a single or double wall drum?

Either option will serve you well! However, here are a few factors to consider when choosing between a single or double-wall drum:

- A single wall drum works well in most applications, but if you will be frequently roasting small, low weight batches that are significantly below the maximum capacity of the drum, you might consider an upgrade to the double wall, as it provides more even, gentler heating.

- A double wall drum will provide greater efficiency over time, as the air gap between the walls provides extra insulation and allows better temperature retention the longer it runs.

- A double wall drum does take longer to heat up initially than a single wall drum.

Does this internal cyclone coffee roaster have any additional installation requirements?

Certain areas may require the use of an afterburner to ensure any expelled fumes are properly handled for disposal. Be sure to check the relevant regulations in your state / municipality.

How easy is it to install this coffee roaster?

Primo designs its roasters to make installation easy so that you can get up and running as quickly as possible!

Clearances:
Only 18” required on all sides.

Gas Connections:
Standard plumbing connections (1/2” or 3/4”) work with most facilities.

Electric:
115V models are plug and play with a standard 3-prong wall outlet. 220V models require hard-wired installation.

Exhaust:
Works with most standard building connections. Please note though that each local jurisdiction has different rules and regulations regarding exhaust and fumes, which may affect your specific installation needs.

As with installations on all similar types of equipment, it is encouraged that you work with a professional for any HVAC, gas plumbing, and hard-wired electrical installation needs to make setup even easier when your roaster arrives. If you need assistance or have a specific question about installing a roaster, please use the live chat feature at the top left of your screen. One of our customer solutions representatives would be happy to assist you in getting an answer!

I want to add my logo or choose different colors - how can I customize my roaster?

We offer roasters that are available in a pre-configured, ready-to-ship format, and roasters that offer some core customization options to provide more control over the look and functionality of your roaster. Items that are customizable will have "Customizable" in the title and dropdown options for you to choose from.

However, Primo offers a wide range of customization options even beyond this, and if you want to build a fully customized roaster, you can incorporate your logo, and do other things like specify the body, base, and trim colors (over 180 color options available). Please reference the customization brochure on this product page, decide your options, and contact the Customer Solutions team to begin the ordering process.

Will this Xr3 roaster fit through my doorway?

The crate dimensions of this roaster are listed below, for the purposes of determining whether it will fit through your doorways. Note that a pallet jack will be needed to move and install this item.

Width: 30”
Length: 56”
Height: 65”
Ask your own question!
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1/2" Gas Connection

    1/2" Gas Connection

    This unit comes with a 1/2" gas connection to be installed by a professional.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • Customizable

    Customizable

    This item can be customized to promote your brand, company, or event.
