Pioneer Series UYB-M22 UYB024GMFILCAD-16 Floor / Low Wall / Ceiling Flex Mount Ductless Mini Split AC / Heat Pump - 24,000 BTU
Item number 589uyb024gmfMFR number UYB024GMFILCAD-16
This Product is no longer available
Browse our full selection
$414.49/Each
$469.99/Each
$498.99/Each
$499.99/Each
$569.00/Each
$1,759.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Provides 2-in-1 cooling and heating
- Features 3D air flow, conditioning the room horizontally and vertically
- Operates quietly to avoid background noise
- Includes a wireless remote control with digital screen for convenience
- Ideal for mounting on the floor, wall, or ceiling in a 650-900 sq. ft. room; 220V, 24,000 BTU
UPC Code:400015244381
- Quantity
- 1/Each
- Shipping Weight
- 278 lb.
- Indoor Unit Width
- 42 Inches
- Outdoor Unit Width
- 37 1/4 Inches
- Indoor Unit Depth
- 26 1/2 Inches
- Outdoor Unit Depth
- 16 1/8 Inches
- Indoor Unit Height
- 9 1/4 Inches
- Outdoor Unit Height
- 31 7/8 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 220 Volts
- Color
- White
- HSPF / HSPF2
- 11.2 Rating
- Mounting Style
- Freestanding
- Plug Type
- Hardwire
- Range
- 650 - 900 Square Feet
- Refrigerant Type
- R-410A
- SEER / SEER2
- 20 Rating
- Speeds
- Variable
- Temperature Range
- 62 - 86 Degrees F
- Total BTU
- 24,000 BTU
- Type
- Air Conditioners DIY Heat Pump Systems
Parker Davis HVAC International UYB024GMFILCAD-16 Details
This Pioneer Series UYB-M22 UYB024GMFILCAD-16 floor / low wall / ceiling flex mount ductless mini split AC / heat pump system provides cooling and heating all in one! With 3D air discharge louvers, you can be confident knowing that every part of your business will be properly circulated with either cold or hot air. Its variable speed motor is virtually inaudible, making it distraction-free. Plus, the digital wireless remote controller that comes standard with your unit enables you to have full control of the settings from anywhere that's convenient.
For optimal versatility, this unit can be placed in a variety of positions, either mounted on the floor, a low wall, or suspended in the ceiling. It's suitable for a space that's 650-900 sq. ft. Not only does it provide the option for up discharge or dual discharge air outlet vents, it features a turbo air mode, enabling it to reach the desired hot or cold temperature and rapidly distribute it in moments.
This mini split system has a 20 SEER energy rating and uses R410A refrigerant, using less energy than the average air conditioner and making it an environmentally-friendly choice for your business. It also includes a preset timer that will turn the fan on and off, and in the event of a power outage, will automatically save its current settings to ensure everything gets back on track when the power returns. A 220V, hardwired, electrical connection is required for operation and should be installed by a professional.
Indoor Unit Dimensions:
Width: 42"
Depth: 26 1/2"
Height: 9 1/4"

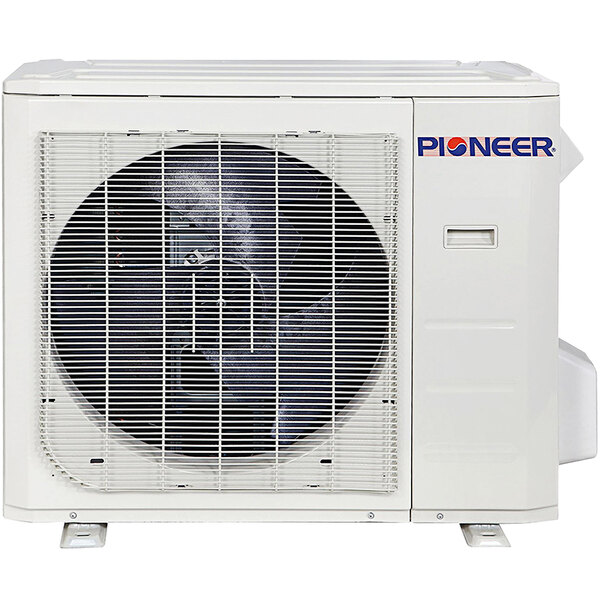

Outdoor Unit Dimensions:
Width: 37 1/4"
Depth: 16 1/8"
Height: 31 7/8"
Attention CA Residents:
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Resources and Downloads for Parker Davis HVAC International UYB024GMFILCAD-16
Specsheet
Opens in new tab
Warranty
Opens in new tab
Installation Manual
Opens in new tab
Warranty Registration
Opens in new tab
Service Manual
Opens in new tab
AHRI Certificate
Opens in new tab
Owner's Manual
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Warranty is 5 years on parts and the compressor, upon registration of the system by paper or website within 90 days of install. Labor costs are not covered.
