$3,559.00/Each

You will only be emailed once the product becomes available. We won't add you to our email list or share your data.

Earn up to $106.77 back (10,677 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 1-2 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Provides 2-in-1 cooling and heating
  • Features 6-zone climate control in 1 unit, conditioning multiple areas
  • Operates quietly to avoid background noise
  • Includes a wireless remote control with digital screen for convenience
  • Ideal for areas that are 860-1720 sq. ft.; 208-230V, 48,000 BTU
UPC Code:753807439091

Parker Davis HVAC International RYB048GMFILDBD-16 Specs

Quantity
1/Each
Shipping Weight
246 lb.
Indoor Unit Width
47 1/4 Inches
Outdoor Unit Width
37 1/2 Inches
Indoor Unit Depth
34 3/8 Inches
Outdoor Unit Depth
16 3/8 Inches
Indoor Unit Height
11 3/4 Inches
Outdoor Unit Height
52 1/2 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
208 - 230 Volts
Color
White
HSPF
10.3 Rating
Mounting Style
Freestanding
Plug Type
Hardwire
Range
860 - 1,720 Square Feet
Refrigerant Type
R-410A
SEER
17.4 Rating
Speeds
Variable
Temperature Range
62 - 86 Degrees F
Total BTU
48,000 BTU
Type
Air Conditioners  DIY  Heat Pump Systems

Parker Davis HVAC International RYB048GMFILDBD-16 Details

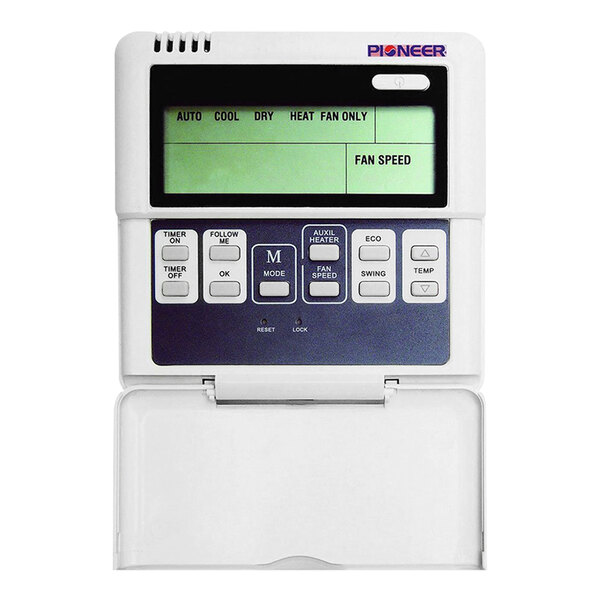

This Pioneer Series RYB-D22 RYB048GMFILDBD-16 mini split ducted concealed AC / heat pump system provides cooling and heating all in one! With its 6-way capacity, this unit can condition 6 separate areas of your business from one location, accommodating different temperatures. Its variable speed motor is virtually inaudible, making it distraction-free. Plus, the digital wireless remote controller that comes standard with your unit enables you to have full control of the settings from an easily accessible area.

For a discreet look, this slim unit conceals nicely in the ductwork of your business, and it's suitable for a space that's 860-1720 sq. ft. It includes a preset timer that will turn the fan on and off, and in the event of a power outage, will automatically save its current settings to ensure everything gets back on track when the power returns.

This mini split system has a 17.4 SEER energy rating and uses R410A refrigerant, using less energy than the average air conditioner and making it an environmentally-friendly choice for your business. It intuitively detects refrigerant leakage and shuts off immediately if leaking, saving the compressor from damage. To ensure the comfortability of guests year-round, the indoor fan speed is regulated from the lowest grade to the set grade according to the evaporator's temperature, which counters any cold air coming in while in heating mode. A 208-230V, hardwired, electrical connection is required for operation and should be installed by a professional.

Indoor Unit Dimensions:
Width: 47 1/4"
Depth: 34 3/8"
Height: 11 3/4"

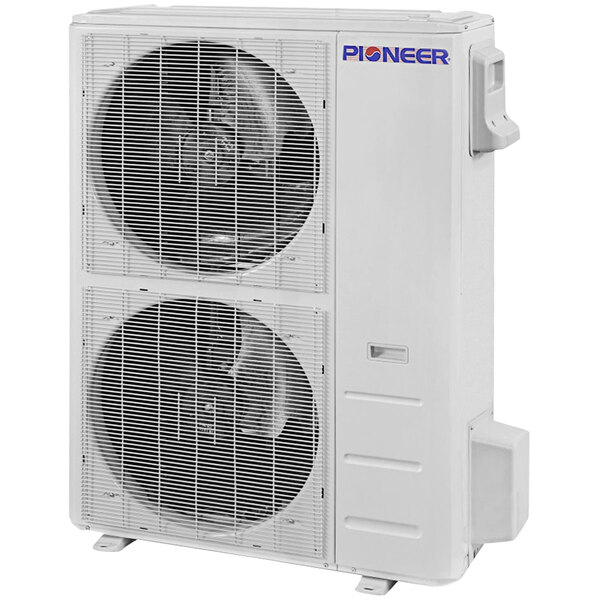

Outdoor Unit Dimensions:
Width: 37 1/2"
Depth: 16 3/8"
Height: 52 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What is the SEER rating on my item?

A SEER rating is a system of measuring your unit's cooling efficiency throughout the year. It stands for Seasonal Energy Efficiency Ratio, and can be found by dividing the cooling output in summer months by the energy used in summer months. This lets you know how productive your air conditioner / heat pump system is. The higher the SEER rating, the lower your monthly energy costs. Consult a technician to determine what SEER rating is optimal for your business type, climate, and region.
Ask your own question!
  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Need Parts & Accessories?

Show replacement parts and accessories for Parker Davis HVAC International RYB048GMFILDBD-16 today!

Resources and Downloads for
Parker Davis HVAC International RYB048GMFILDBD-16

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Warranty is 5 years on parts and the compressor, upon registration of the system by paper or website within 90 days of install. Labor costs are not covered.

Equivalent Items

Parker Davis HVAC International RYB048GMFILDAD-16 (Formerly)
