Pioneer Series RYB-D22 RYB036GMFILDBD-16 Mini Split Ducted Concealed AC / Heat Pump System - 36,000 BTU
Item number 589ryb036gmfMFR number RYB036GMFILDBD-16
This Product is no longer available
Browse our full selection
$492.49/Each
$589.00/Each
$619.00/Each
$619.00/Each
$629.00/Each
$2,789.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Provides 2-in-1 cooling and heating
- Features 6-zone climate control in 1 unit, conditioning multiple areas
- Operates quietly to avoid background noise
- Includes a wireless remote control with digital screen for convenience
- Ideal for areas that are 650-1300 sq. ft.; 208-230V, 36,000 BTU
UPC Code:400015244466
- Quantity
- 1/Each
- Shipping Weight
- 161 lb.
- Indoor Unit Width
- 53 1/2 Inches
- Outdoor Unit Width
- 37 1/4 Inches
- Indoor Unit Depth
- 30 1/2 Inches
- Outdoor Unit Depth
- 16 1/8 Inches
- Indoor Unit Height
- 9 3/4 Inches
- Outdoor Unit Height
- 31 7/8 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208 - 230 Volts
- Color
- White
- HSPF / HSPF2
- 11.5 Rating
- Mounting Style
- Freestanding
- Plug Type
- Hardwire
- Range
- 650 - 1300 Square Feet
- Refrigerant Type
- R-410A
- SEER / SEER2
- 16.7 Rating
- Speeds
- Variable
- Temperature Range
- 62 - 86 Degrees F
- Total BTU
- 36,000 BTU
- Type
- Air Conditioners DIY Heat Pump Systems
Parker Davis HVAC International RYB036GMFILDBD-16 Details

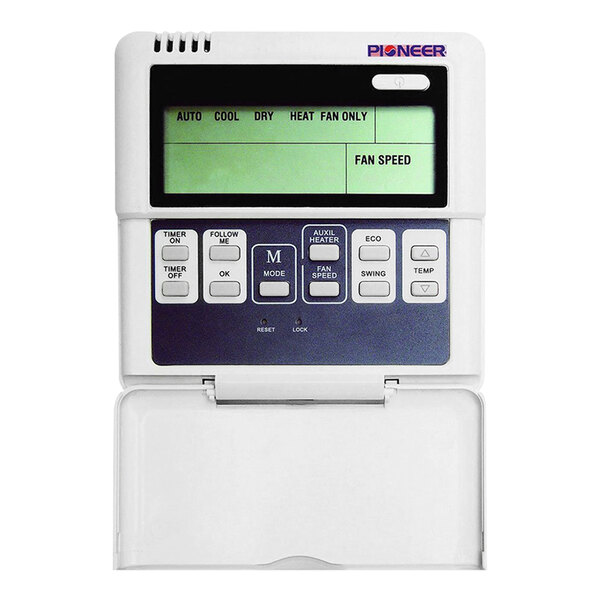

This Pioneer Series RYB-D22 RYB036GMFILDBD-16 mini split ducted concealed AC / heat pump system provides cooling and heating all in one! With its 6-way capacity, this unit can condition 6 separate areas of your business from one location, accommodating different temperatures. Its variable speed motor is virtually inaudible, making it distraction-free. Plus, the digital wireless remote controller that comes standard with your unit enables you to have full control of the settings from an easily accessible area.
For a discreet look, this slim unit conceals nicely in the ductwork of your business, and it's suitable for a space that's 650-1300 sq. ft. It includes a preset timer that will turn the fan on and off, and in the event of a power outage, will automatically save its current settings to ensure everything gets back on track when the power returns.
This mini split system has a 16.7 SEER energy rating and uses R410A refrigerant, using less energy than the average air conditioner and making it an environmentally-friendly choice for your business. It intuitively detects refrigerant leakage and shuts off immediately if leaking, saving the compressor from damage. To ensure the comfortability of guests year-round, the indoor fan speed is regulated from the lowest grade to the set grade according to the evaporator's temperature, which counters any cold air coming in while in heating mode. A 208-230V, hardwired, electrical connection is required for operation and should be installed by a professional.
Indoor Unit Dimensions:
Width: 53 1/2"
Depth: 30 1/2"
Height: 9 3/4"
Outdoor Unit Dimensions:
Width: 37 1/4"
Depth: 16 1/8"
Height: 31 7/8"
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Resources and Downloads for Parker Davis HVAC International RYB036GMFILDBD-16
Warranty
Opens in new tab
Warranty Registration
Opens in new tab
Service Manual
Opens in new tab
AHRI Certificate
Opens in new tab
User Manual
Opens in new tab
Installation Manual
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Warranty is 5 years on parts and the compressor, upon registration of the system by paper or website within 90 days of install. Labor costs are not covered.
Equivalent Items
- Parker Davis HVAC International RYB036GMFILDAD-16 (Formerly)
