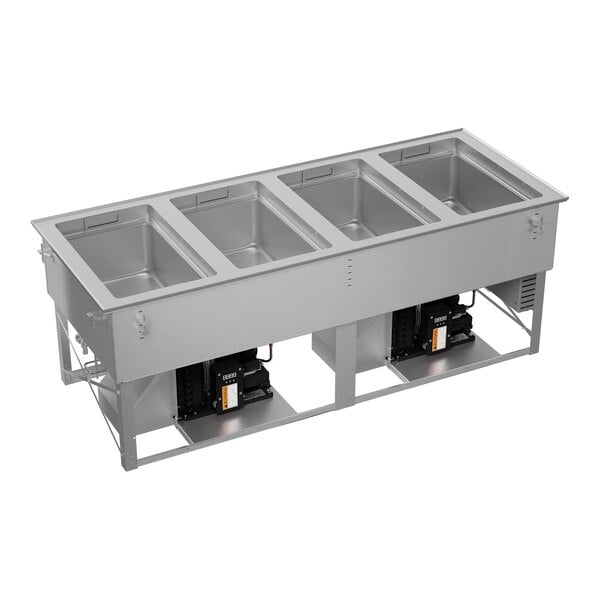

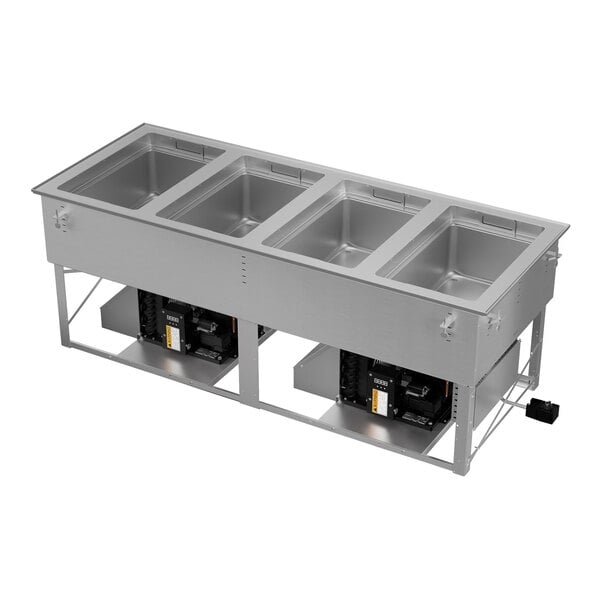

Scratch and Dent Vollrath FC-HCF-04208 Four Well Modular Drop-In Hot / Cold / Freeze Food Well with Manual Manifold Drain - 120/208-240V
Item number 922fchcf04208MFR number FC-HCF-04208
Condition:Outlet
Usually Ships in 4 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Toggles between hot and cold at the flip of a switch
- For use with full-size and fractional pans up to 6" deep
- Individual power indicator light and controls for each well
- Stainless steel construction and high-density polyurethane foam insulation
- Uses eco-friendly, low-GWP R-290 refrigerant; 120/208-240V
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 212 lb.
- Width
- 65 11/16 Inches
- Depth
- 26 Inches
- Height
- 24 3/8 Inches
- Power Cord Length
- 6 Feet
- Control Cutout Width
- 7 1/8 Inches
- Cutout Width
- 64 7/8 Inches
- Louver Cutout Width
- 8 Inches
- Control Cutout Depth
- 3 7/8 Inches
- Cutout Depth
- 25 1/4 Inches
- Louver Cutout Depth
- 10 Inches
- Amps
- 13.2 Amps
- Voltage
- 120/208-240 Volts
- Wattage
- 2,500 Watts
- Compressor Location
- Bottom Mounted
- Control Type
- Thermostatic
- Drain Style
- Manual
- Features
- Made in America UL Certified With Drain
- Gauge
- 18 Gauge
- Horsepower
- 1/4 hp
- Installation Type
- Drop In / Top Mounted
- Insulated
- With Insulation
- Material
- Stainless Steel
- Number of Wells
- 4 Wells
- Pan Mounting
- Recessed
- Plug Type
- NEMA 14-20P
- Power Type
- Electric
- Refrigerant Type
- R-290
- Refrigeration Type
- Cold Wall
- Size
- Full Size
- Stainless Steel Type
- Type 300
- Type
- Triple Temperature Wells

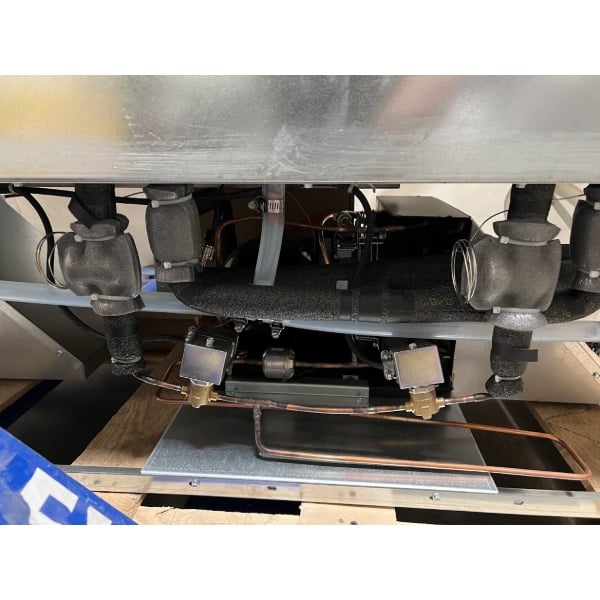

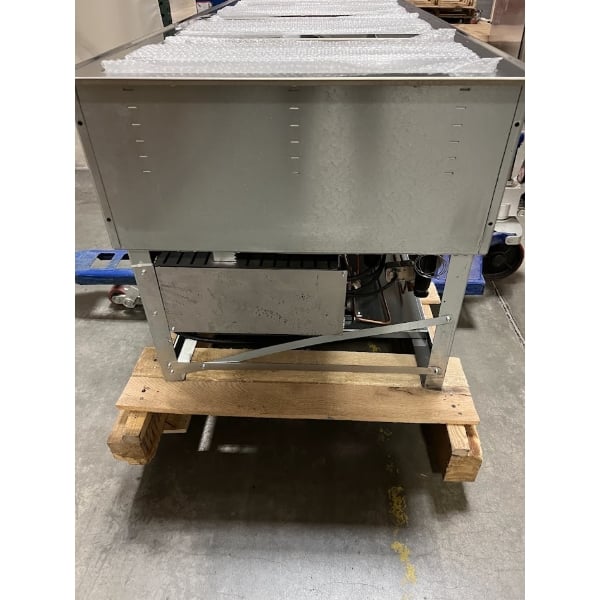

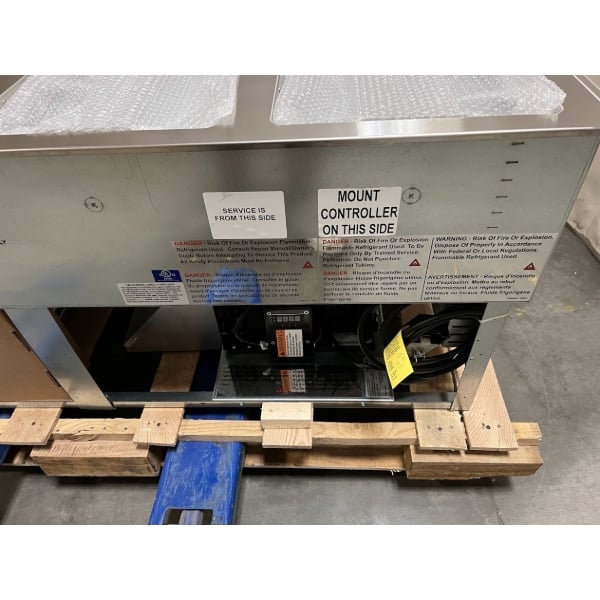

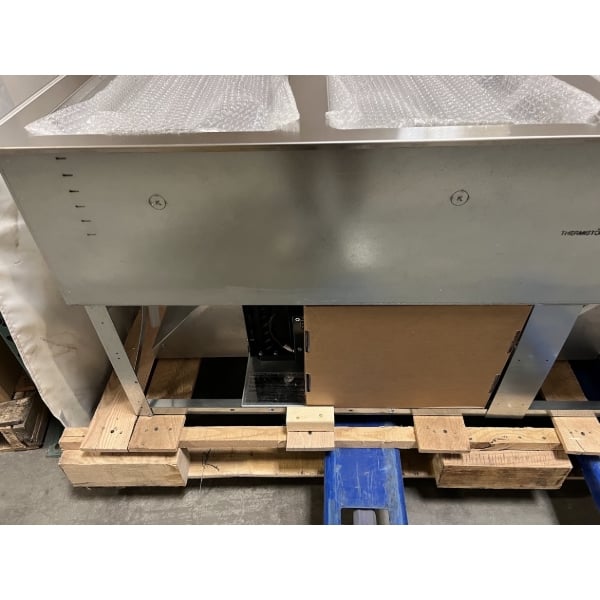

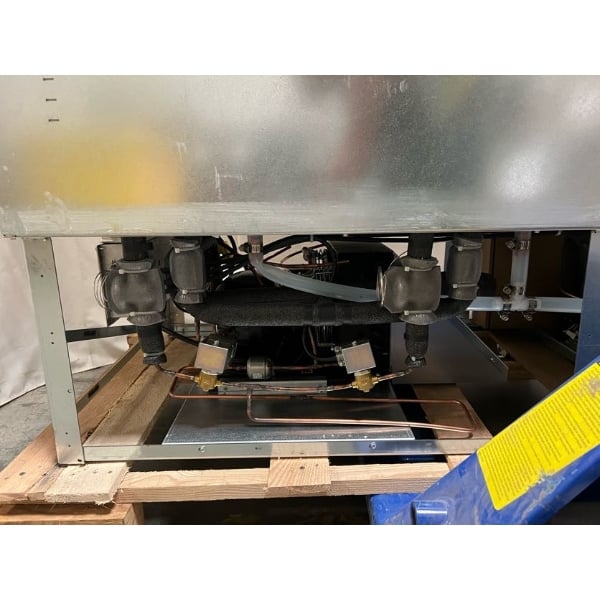

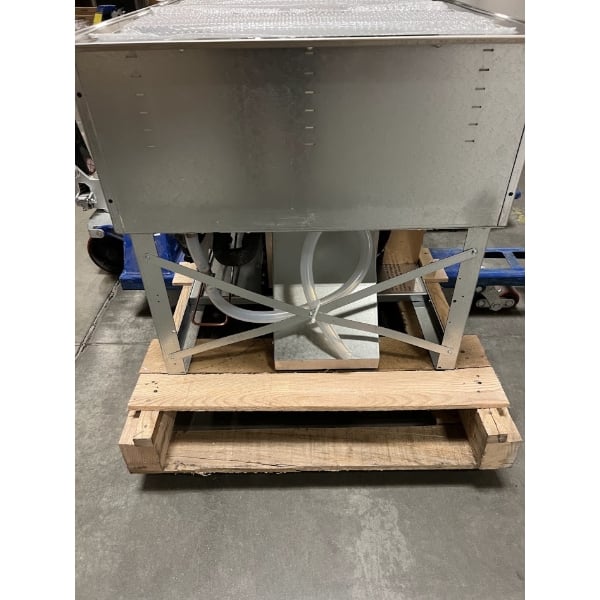

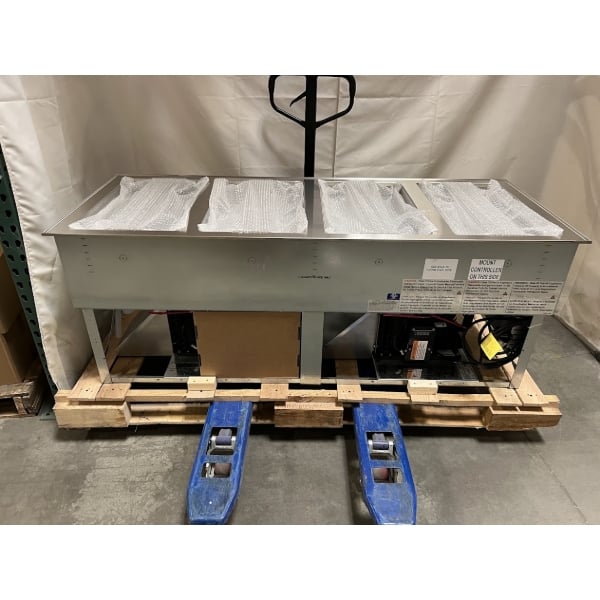

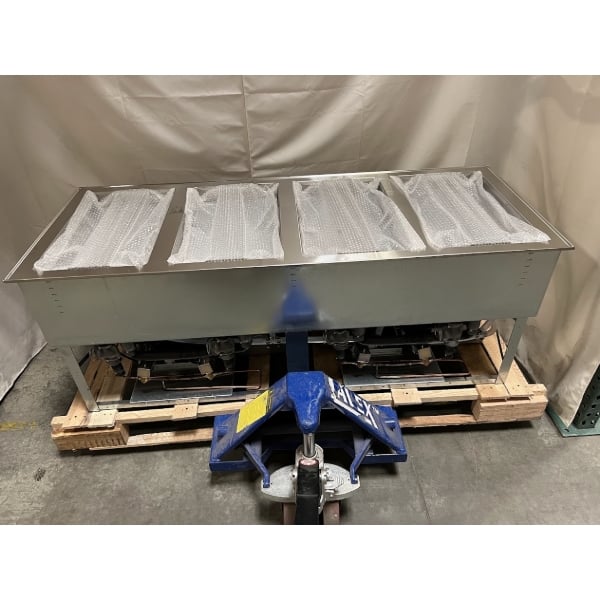

Scratch and Dent Vollrath FC-HCF-04208 Details
- New; never used
- Out of original packaging
Change from a cold salad bar to a hot dinner buffet with this Vollrath drop-in hot / cold / freeze food well! With the flip of a switch, this food well can toggle between its 625W heating system or 1/4 hp refrigeration system with eco-friendly R-290 refrigerant to best suit your hot, cold, or frozen food holding needs. Each well is surrounded by refrigeration coils for optimal cooling and high-density polyurethane foam insulation to help you save energy. The 2" stepped cold wall recess near the top of each well helps maintain a cold air blanket around your cold foods. Plus, the R-290 refrigerant is a low global warming potential (GWP) refrigerant so your wells are safer and more eco-conscious. For fast heating, the bottom of each well has a 625W rope heater attached. Thermostatic controls let you alter the heat output to the perfect hot holding temperature.
This unit is made for use with full-size and fractional pans up to 6" deep. For long-lasting durability, this model features an 18-gauge galvanized steel exterior housing and 18-gauge, 300-series stainless steel wells and top flange. A stainless steel control panel provides individual controls and a power light for each well. The convenient power light will shine blue when cold and red when hot so you can quickly double check the status of your wells. The user interface also includes a 4' connection for versatile mounting.
The manual, standard 3/4" integral drain has flexible manifold tubing that siphons runoff and condensation while a full-perimeter drip edge prevents liquid from flowing out onto your countertops. Plus, the included standard mounting clips allow for installation on counters up to 3" thick. The innovative Vollrath hot /cold / freeze food well is designed for simplified serviceability and is a perfect addition to any restaurant, cafeteria, or buffet! This unit includes a 6' power cord and requires a 120/208-240V electrical connection for operation.
Overall Dimensions:
Width: 65 11/16"
Depth: 26"
Height: 24 3/8"
Cutout Dimensions:
Width: 64 7/8"
Depth: 25 1/4"
Louver Cutout Dimensions:
Width: 8"
Depth: 10"
Control Cutout Dimensions:
Width: 7 1/8"
Depth: 3 7/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
14-20P
This unit comes with a NEMA 14-20P plug.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Made in America
This item was made in the United States of America.
