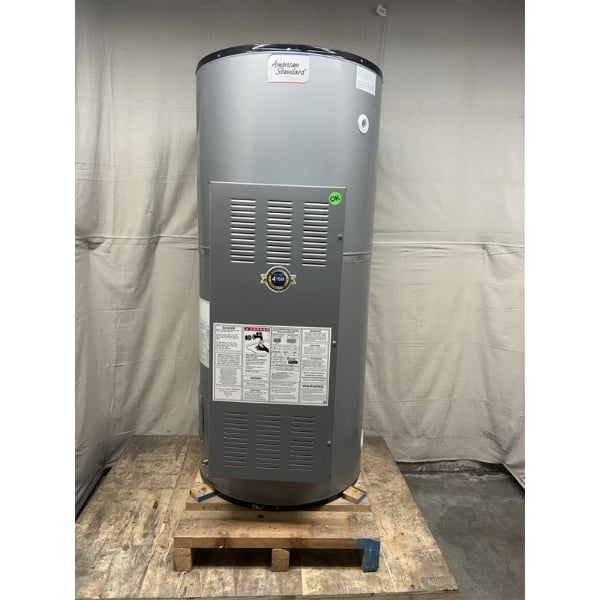

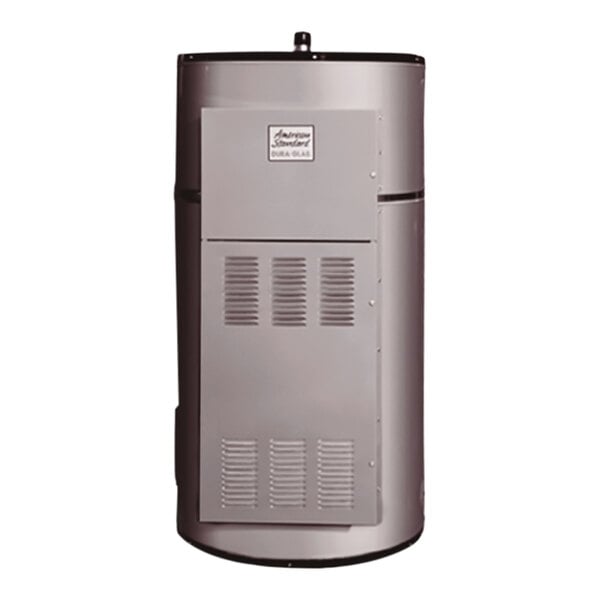

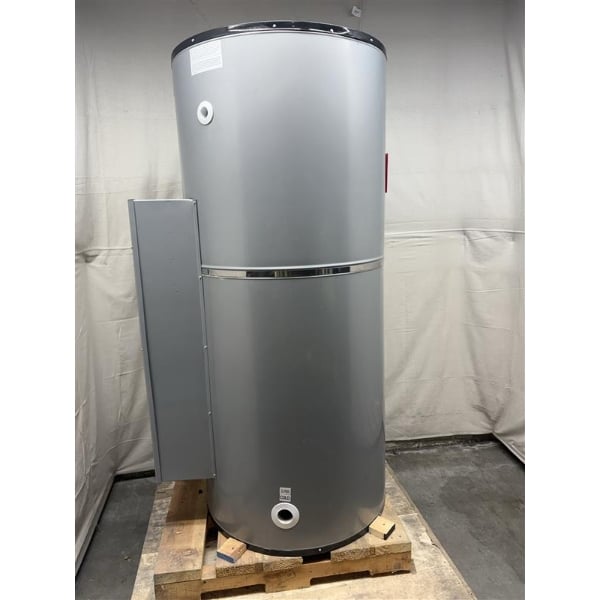

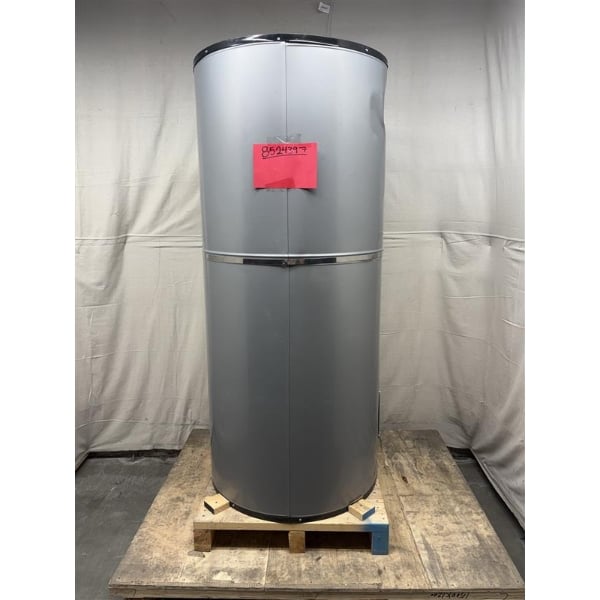

Scratch and Dent American Standard Water Heaters CE-120-AS-45 120 Gallon Heavy-Duty Electric Water Heater - 240V, 45kW
Item number 53bce120as45MFR number CE-G2-120-AS-45KW
Condition:Outlet
Usually Ships in 1-2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Heavy-gauge, glass-lined 120 gallon steel tank
- 3" thick insulation foam for improved energy efficiency
- Heating elements feature dry fire protection and reduced lime accumulation
- Easily field convertible to suit a variety of needs
- Full-flow brass drain valve enables quick drainage
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 483 lb.
- Height
- 67 1/2 Inches
- Diameter
- 30 1/4 Inches
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 240 Volts
- Wattage
- 45 Kilowatts
- Application
- Multiple Points of Use
- Color
- Gray
- Features
- Field-Convertible (Electrical)
- Installation Type
- Stationary
- Insulation Material
- Polyurethane Foam
- Material
- Steel
- Maximum Pressure
- 150 PSI
- Plug Type
- Hardwire
- Power Type
- Electric
- Style
- With Tank
- Tank Capacity
- 120 Gallons
- Type
- Water Heaters
- Usage
- Indoor
- Water Inlet Size
- 1 1/2 Inches
Scratch and Dent American Standard Water Heaters CE-G2-120-AS-45KW Details
- New; never used
- Out of original packaging

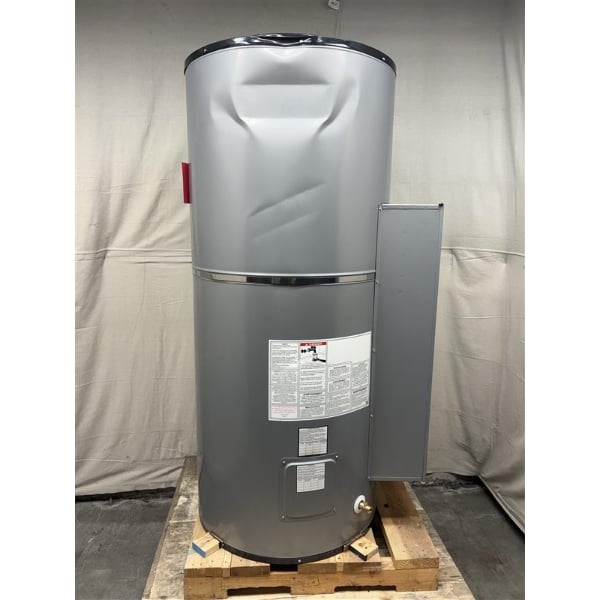

- The unit has one small dent on the top side
Instantly meet your facility's hot water demands with this American Standard Water Heaters heavy-duty electric water heater. Boasting 45kW of power, this unit includes a heavy-gauge 120 gallon steel tank lined with DuraGlas and fired at 1,600 degrees Fahrenheit for optimal protection against corrosion. It also features magnesium anodes for extended tank life, along with low-watt density incoloy heating elements that feature dry fire protection and reduced lime accumulation. Its full-flow brass drain valve allows for easy drainage.
This unit is easily field convertible to suit a variety of needs. It features 3" thick foam insulation to maximize heat retention. Plus, each of the 9 heating elements features an automatic surface thermostat for variable temperature control. The thermostats are fully adjustable to 180 degrees Fahrenheit. For added convenience, this unit comes complete with a factory-installed fuse box and factory pre-wired control box. A full-size hand hole cleanout enables easy tank inspection and sediment removal. For added safety, the unit comes with a pre-installed temperature and pressure relief valve, streamlining installation and ensuring pressure regulation for reliable operation. This unit is rated to 150 PSI working pressure and has a 207 GPH recovery at a 90-degree rise. It requires a 240V, 3 phase electrical connection to operate.
Overall Dimensions:
Diameter: 30 1/4"
Height: 67 1/2"
Capacity: 120 gallons
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
1 1/2" Water Connection
This unit comes with a 1 1/2" water connection for water supply.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
