Product Overview

  • Downflow configuration for installation
  • Designed for left or right utility connection and direct or non-direct vent use
  • Aluminized steel heat exchanger and stainless steel secondary heat exchanger for optimal heating
  • Compact 21" cabinet and 33" height is easy to fit anywhere
  • Heavy-duty ECM 1 hp blower motor for efficient air flow
UPC Code:840255553384

MRCOOL MGD96SE110C5XA Specs

Quantity
1/Each
Shipping Weight
162 lb.
Width
21 Inches
Depth
27 3/4 Inches
Height
33 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Color
Silver
Features
Made in America
Gas Connection Size
1/2 Inches
Horsepower
1 HP
Plug Type
Hardwire
Power Type
Natural Gas
Speeds
5 Speed
Total BTU
110,000 BTU
Type
Furnaces

MRCOOL MGD96SE110C5XA Details

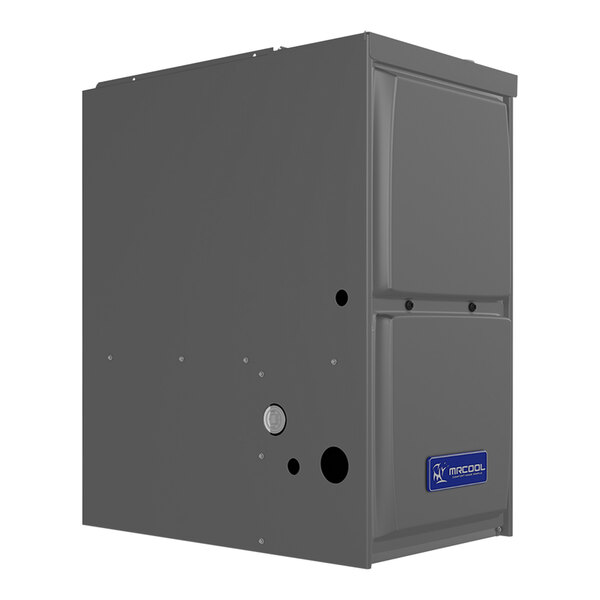

Give your business the high-quality heating service it deserves with the MRCOOL Signature Series 96% AFUE downflow multi-speed low NOX natural gas furnace! This compact, single-stage furnace is packed with all the power and added features you need to stay warm and comfortable during tough winter months. This furnace is equipped with downflow configuration for ease of installation. At only 33" tall with a 21" cabinet, this unit will be able to fit just about anywhere in your business! Installation has never been easier or more flexible with left and right utility connection options, as well as direct and non-direct vent applications. The unit features a removable base for bottom return air and zero-step horizontal conversion if your business requires it.

The furnace's dual heat exchanger system is designed with an aluminized steel primary exchanger and an AL 29-4C stainless steel secondary heat exchanger. The primary heat exchanger has a crimped non-welded construction and ensures a high-quality heating system. Easy-to-use controls offer electronic air cleaner and humidifier terminals to keep your circulating air as clean as possible, while the self-diagnostics alert you to potential maintenance issues, saving you time and money on repairs. A multi-speed ECM 1 hp blower motor elevates the efficiency of airflow and can be easily removed if necessary by sliding the blower out of the furnace. With 5 different speeds, this blower uses less energy than a comparable fixed-speed blower. With 110,000 BTU of output and 96% AFUE, this furnace is guaranteed to be extremely powerful and effective. Although powerful, this unit maintains fuel-saving and energy-saving qualities that save your business money every day. An optional LP kit is included to transform your furnace into a liquid propane unit. This unit requires a 120V, hardwired, electrical connection for operation and should be installed by a professional.

Overall Dimensions:
Width: 21"
Depth: 27 3/4"
Height: 33"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • 1/2" Gas Connection

    1/2" Gas Connection

    This unit comes with a 1/2" gas connection to be installed by a professional.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
