Product Overview
- Compatible with select Signature condensers and gas furnaces or modular blowers
- Upflow model with right side dual drain port for easy installation and convenient servicing
- Microban antimicrobial element helps prevent mold growth
- Interlocking doors and tight seal grommets prevent air from leaking
- Heavy-duty steel cabinet design
- Quantity
- 1/Each
- Shipping Weight
- 73 lb.
- Width
- 24 1/2 Inches
- Depth
- 21 Inches
- Height
- 27 1/2 Inches
- Color
- Silver
- Features
- Made in America
- Refrigerant Type
- R-410A
- Type
- Evaporator Coils

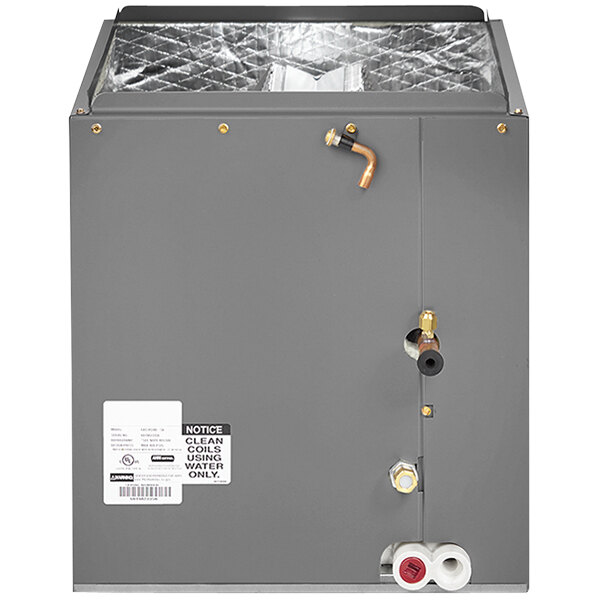

MRCOOL MCVP60DNPA Details
Give your business the high-quality heating and cooling service it deserves with the MRCOOL Signature MCVP60DNPA 24 1/2" upflow painted evaporator coil! This compact, versatile evaporator coil is packed with all the power and added features that you need to keep the temperature of your furnace, condensers, or modular blowers regulated and comfortable throughout any season. This evaporator coil is upflow configured and provides easy and flexible installation. A dual drain port to the right of the coil and extended refrigerant lines outside of the cabinet make installation as simple as possible. At only 24 1/2" wide, this coil will be able to fit perfectly on your unit without taking up a lot of much-needed space. Service and cleaning are at the forefront of features of the coil, with tubing on the door split to quickly reach coils for cleaning, removable cabinet panels, and enhanced drain pans.
The coil's drain pan features notably low water retention that helps to minimize the growth of mold, as well as microban antimicrobial elements in the drain pan itself that further help to prevent mold and mildew from building up. The drain pan is compatible with UV lights for effective sanitation. The coil's interlocking doors and tight seal grommets to prevent air from leaking and causing damage to the unit. Other components of the coil include aluminum tubing, hairpins, distributors, and header tubes. The aluminum construction provides durability, while the copper refrigerant connections help the R-410A refrigerant flow freely throughout the unit and provide convenient brazing to the liquid and suction lines. An insulated galvanized steel cabinet design with an embossed finish keeps the connected furnace unit sturdy while standing up to the wear and tear of time. With a 5 ton nominal capacity, this evaporator coil is guaranteed to be extremely powerful and effective. Add this evaporator coil to your furnace, condenser, or modular blower and stay comfortable all year long!
Overall Dimensions:
Width: 24 1/2"
Depth: 21"
Height: 27 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Resources and Downloads for
MRCOOL MCVP60DNPA
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Available in product portal
