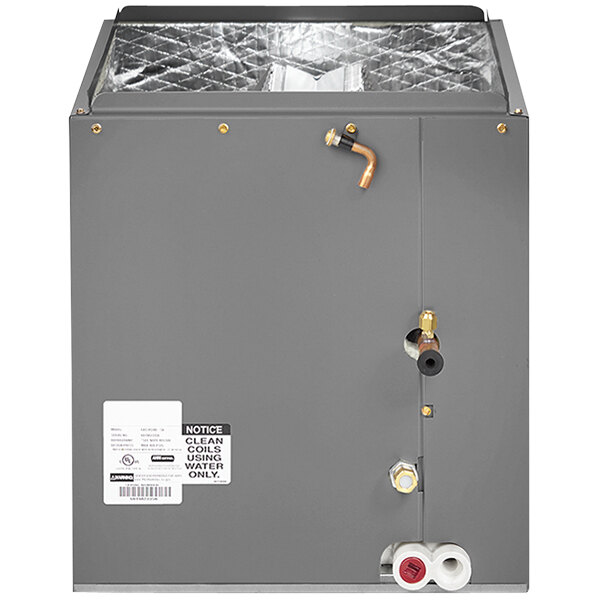

MRCOOL Signature MCVP60CNPA 21" Upflow Painted Evaporator Coil with R-410A Refrigerant - 5 Ton

MRCOOL MCVP60CNPA Details

Give your business the high-quality heating and cooling service it deserves with the MRCOOL Signature MCVP60CNPA 21" upflow painted evaporator coil! This compact, versatile evaporator coil is packed with all the power and added features that you need to keep the temperature of your furnace, condensers, or modular blowers regulated and comfortable throughout any season. This evaporator coil is upflow configured and provides easy and flexible installation. A dual drain port to the right of the coil and extended refrigerant lines outside of the cabinet make installation as simple as possible. At only 21" wide, this coil will be able to fit perfectly on your unit without taking up a lot of much-needed space. Service and cleaning are at the forefront of features of the coil, with tubing on the door split to quickly reach coils for cleaning, removable cabinet panels, and enhanced drain pans.

The coil's drain pan features notably low water retention that helps to minimize the growth of mold, as well as microban antimicrobial elements in the drain pan itself that further help to prevent mold and mildew from building up. The drain pan is compatible with UV lights for effective sanitation. The coil's interlocking doors and tight seal grommets to prevent air from leaking and causing damage to the unit. Other components of the coil include aluminum tubing, hairpins, distributors, and header tubes. The aluminum construction provides durability, while the copper refrigerant connections help the R-410A refrigerant flow freely throughout the unit and provide convenient brazing to the liquid and suction lines. An insulated galvanized steel cabinet design with an embossed finish keeps the connected furnace unit sturdy while standing up to the wear and tear of time. With a 5 ton nominal capacity, this evaporator coil is guaranteed to be extremely powerful and effective. Add this evaporator coil to your furnace, condenser, or modular blower and stay comfortable all year long!

Overall Dimensions:
Width: 21"
Depth: 21"
Height: 31 1/2"
