$1,191.00/Each

This product is no longer available. We've left this page up for reference only.

Usually Ships in 1-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

  • Upflow and horizontal left / right configurations for versatile installation
  • CoolGuard coil with R410A refrigerant protects against corrosion
  • Compact cabinet for indoor and closet installation options
  • Heavy-duty PSC 1/2 hp constant torque blower motor for efficient air flow
  • 14 SEER rating maximizes efficiency and lowers costs; 208-230V
UPC Code:00810512031092
View all MRCOOL Central Air Systems

MRCOOL MAHM030CTA Specs

Quantity
1/Each
Shipping Weight
133 lb.
Width
22 13/16 Inches
Depth
27 Inches
Height
50 1/2 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
208/230 Volts
Color
Gray
Horsepower
1/2 HP
Plug Type
Hardwire
Refrigerant Type
R-410A
Total BTU
3,000 BTU
Type
Split Systems

MRCOOL MAHM030CTA Details

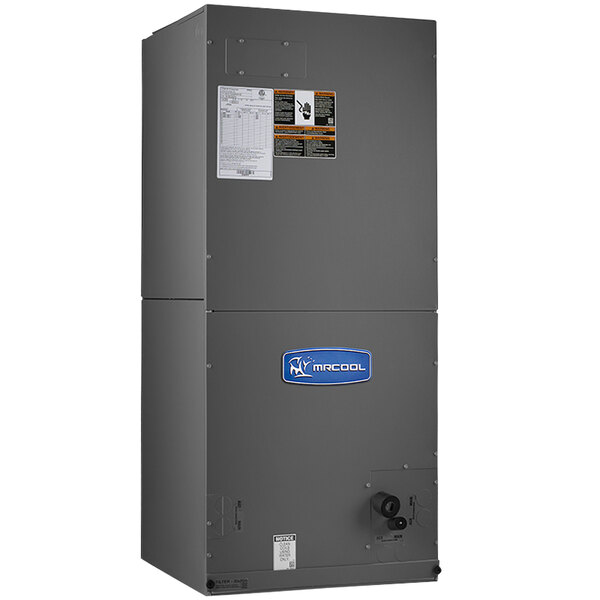

Give your business the high-quality airflow service it deserves with the MRCOOL Signature MAHM030CTA 2.5 ton multi-position split system air handler with PSC motor and factory installed TXV. This compact, multi-position air handler is packed with all the power and added features that you need to stay cool and comfortable throughout the year. This air handler is equipped with upflow and left / right horizontal configurations for versatile installation options. At 50 1/2" tall, this unit is designed for closet installation, and is even approved for installation in mobile homes. Made from galvanized steel covered in a baked polyester paint finish, durability is at the forefront of features with this air handler. With foil faced insulation, the air quality at your business has never been better, while the 14 SEER seasonal efficiency rating ensures that the unit will work effectively and keep energy costs down even in the hottest summer months.

The cabinet's doors feature improved gaskets that prevent air from leaking through, while the included filter rack can be easily removed for cleaning or replacement. The air handler's CoolGuard coils provide corrosion resistance to keep the unit running properly for longer. The coils feature a tube-and-fin design that works the R410A refrigerant through the system. The lanced fins seamlessly transfer heat through the system, while the leakproof design keeps airflow fresh and clean. A powerful split capacitor PSC 1/2 hp blower motor elevates the efficiency of airflow, and the factory-installed thermostatic expansion valve (TXV) moderates the refrigerant flow. The drain pans feature antimicrobial treatment to prevent mold and mildew from growing, as well as being incredibly durable and heat resistant. This unit requires a 208/230V, hardwired, electrical connection for operation and should be installed by a professional.

Overall Dimensions:
Width: 22 13/16"
Depth: 27"
Height: 50 1/2"

Attention CA Residents:

Customer questions about this product

What is the SEER rating on my item?

A SEER rating is a system of measuring your unit's cooling efficiency throughout the year. It stands for Seasonal Energy Efficiency Ratio, and can be found by dividing the cooling output in summer months by the energy used in summer months. This lets you know how productive your air conditioner / heat pump system is. The higher the SEER rating, the lower your monthly energy costs. Consult a technician to determine what SEER rating is optimal for your business type, climate, and region.
Ask your own question!
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Resources and Downloads for
MRCOOL MAHM030CTA

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Available in product portal
