$1,532.00/Each

This product is no longer available. We've left this page up for reference only.

Usually Ships in 3-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

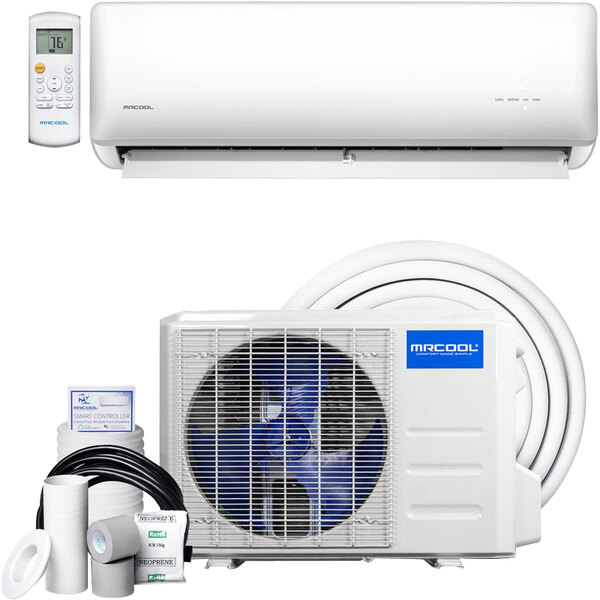

  • Includes wall mount air handler, outdoor condenser, and 25' lineset
  • Features SmartHVAC for comprehensive remote control and programming
  • Ductless design is easier to install and requires no wall or ceiling demolition
  • Offers timer mode, sleep mode, turbo mode, and auto swing
  • 12,000 BTU cooling; 11,800 BTU heating; 208-230V
UPC Code:810512031870

MRCOOL O-HH-12-HP-230E Specs

Quantity
1/Each
Shipping Weight
120 lb.
Width
32 7/8 Inches
Depth
7 3/4 Inches
Height
11 Inches
Condenser Width
31 1/2 Inches
Condenser Depth
13 1/8 Inches
Condenser Height
21 3/4 Inches
Voltage
208 - 230 Volts
Color
White
Features
Energy Star Qualified
HSPF
12 Rating
Mounting Style
Wall Mounted
Plug Type
Hardwire
Range
500 Square Feet
SEER
22.5 Rating
Total BTU
12,000 BTU
Type
DIY  Heat Pump Systems

MRCOOL O-HH-12-HP-230E Details

Add both a heating and cooling system to your establishment all in one unit with the MRCOOL O-HH-12-HP-C-230 / O-12-HP-WMAH-230A Olympus Hyper Heat Series ductless mini-split inverter heat pump system. This ductless system requires no destruction of walls or ceilings like traditional HVAC systems so you benefit from less of a mess and reduced installation costs. The hyper-heat technology assists in heating your home in even the coldest days of winter.

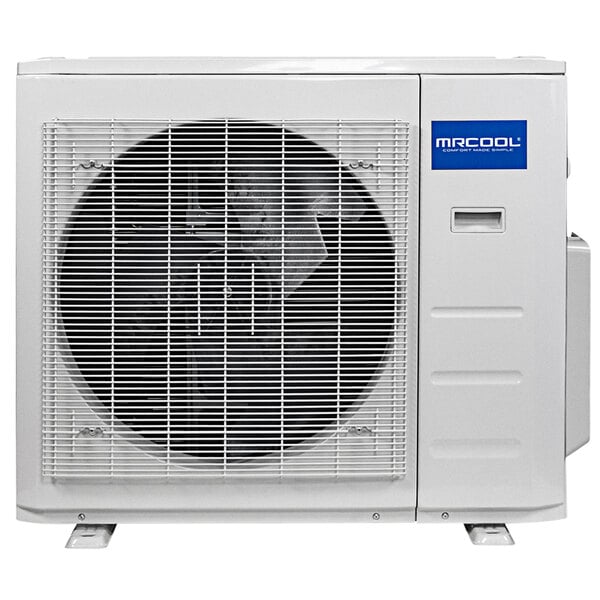

The outside Gold Fin condenser is corrosion-resistant and keeps the noise of the refrigeration system kept to the outdoors for an overall quieter operation. The air handler mounts directly to a finished wall so it does not have to take up a window. It includes a sleep mode, auto-swing, and turbo mode for increased cooling power. For even more ease of use, the Olympus Series comes with SmartHVAC, which is WiFi enabled so you can have full remote control with the use of the app via your smartphone or virtual assistant. With this app you can control temperature, fan speed, and which mode the unit is running in, all while being away from your home.

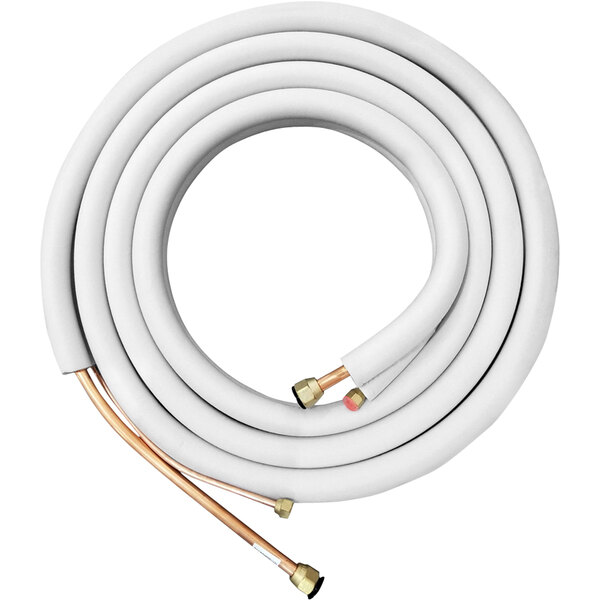

With 12,000 BTU of cooling power and 11,800 BTU of heating power, this unit is capable of heating/cooling an area up to 500 sq. ft. The onboard filter is completely removable and washable so you can ensure the incoming air is as clean as possible with periodic cleanings. An installation kit is included. This unit also comes with a 25' lineset and requires a 208-230V electrical connection for operation.

Air Handler Dimensions:
Width: 32 7/8"
Depth: 7 3/4"
Height: 11"

Condenser Dimensions:
Width: 31 1/2"
Depth: 13 1/8"
Height: 21 3/4"

Attention CA Residents:
  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

Resources and Downloads for
MRCOOL O-HH-12-HP-230E

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Available in product portal
