Master-Bilt IHC-48 129 Gallon Stainless Steel Ice Cream Hardening / Holding Cabinet - 115V
Item number 560ihc48MFR number IHC-48
Apply, opens link in this tabEarn up to $424.82 back (42,482 points)
(42,482 points) with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 4-5 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable stainless steel exterior with anodized aluminum interior
- 8 heavy-duty welded-wire gray epoxy-coated cantilever shelves
- Self-closing doors with 90-degree hold-open feature
- (43) 3 gallon can capacity
- 2 1/2" foamed-in-place "zero ODP" urethane insulation and 2" thick foamed-in-place outer doors
UPC Code:400018000625
- Quantity
- 1/Each
- Shipping Weight
- 840 lb.
- Width
- 52 Inches
- Depth
- 36 Inches
- Height
- 82 Inches
- Power Cord Length
- 8 Feet
- Interior Width
- 47 Inches
- Interior Depth
- 26 1/2 Inches
- Interior Height
- 49 Inches
- Amps
- 16 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Cabinet Type
- Hinged Doors
- Color
- Silver
- Compressor Location
- Top Mounted
- Container Display Capacity
- 43 Cans
- Door Style
- Swing
- Door Type
- Solid
- Features
- Adjustable Legs Magnetic Door Gaskets Self-Closing Doors UL Certified
- Freeze Capacity
- 129 Gallons
- Front Style
- No Sneeze Guard
- Horsepower
- 5/6 hp
- Installation Type
- Freestanding
- Insulated
- With Insulation
- Material
- Stainless Steel
- Number of Doors
- 2 Doors
- Number of Shelves
- 8 Shelves
- Plug Type
- NEMA 5-20P
- Refrigerant Type
- R-290
- Temperature Range
- -30 - 0 Degrees F
- Total Container Capacity
- 43 Cans
- Type
- Ice Cream Hardening Cabinets
Master-Bilt IHC-48 Details

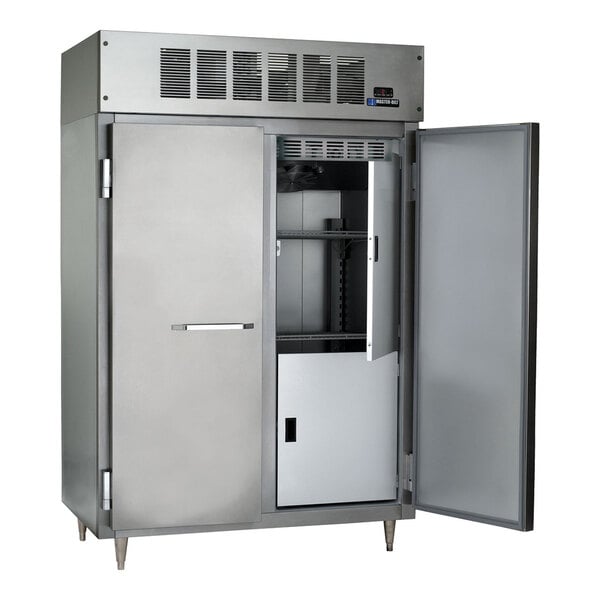

Enhance your ice cream production with the Master-Bilt 129 gallon stainless steel ice cream hardening / holding cabinet! This durable hardening cabinet boasts a stainless steel exterior and anodized aluminum interior that ensure long-lasting performance in your commercial kitchen. Equipped with four heavy-duty welded-wire gray epoxy-coated cantilever shelves in each of its two sections, this cabinet includes eight total shelves to provide ample storage space for up to (43) 3 gallon ice cream cans. The 2" thick foamed-in-place outer doors and 2 1/2" foamed-in-place "zero ODP" urethane insulation help maintain consistent temperatures ranging from 0 degrees Fahrenheit to -30 degrees Fahrenheit, preserving the quality of your frozen treats. This unit includes a convenient 8' power cord.
Designed for convenience and efficiency, this ice cream hardening cabinet features self-closing doors with a 90-degree hold-open feature, allowing for easy loading and unloading of products. Each outer door features a heavy-duty horizontal handle. The left section's doors are hinged on the left, and the right section's doors are hinged on the right. The two staggered-height insulated inner doors in each section feature magnetic catches and aid in energy conservation. Additionally, the sure-sealing replaceable magnetic gaskets offer added temperature retention, while the anti-condensate door frame heater is provided through the discharge liquid line to help prevent condensation.
This unit's top-mounted, self-contained hermetic refrigeration system utilizes R-290 refrigerant, ensuring optimal cooling performance while being environmentally friendly. This model includes two condensing units for consistent cooling. An electronic controller monitors the cabinet temperature and runs an automatic defrost cycle every 8 hours, with a manual defrost option when needed. With heavy-duty legs that are adjustable from 6" to 7", this hardening cabinet can be easily positioned for seamless operation in your commercial kitchen. Upgrade your ice cream storage and hardening capabilities with this Master-Bilt cabinet to meet the demands of your busy establishment! It requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 52"
Depth: 36"
Height: 82"
Capacity: 129 gallons
Interior Dimensions:
Interior Width: 47"
Interior Depth: 26 1/2"
Interior Height: 49"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
5-20P
This unit comes with a NEMA 5-20P plug.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
