$298.99/Each

Ships free with Plus

Earn up to $8.97 back (897 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • For wastewater transfer and dewatering applications in basins or lift stations
  • Epoxy-coated cast iron body for durability
  • 2" FNPT discharge with a maximum flow rate of 100 GPM
  • Manual activation switch
  • Thermal overload protection resets after overloading or overheating
UPC Code:010121003255

Little Giant Pumps 509413 Specs

Quantity
1/Each
Shipping Weight
37.2 lb.
Width
8 5/8 Inches
Depth
10 7/16 Inches
Height
13 5/8 Inches
Power Cord Length
20 Feet
Amps
8 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Wattage
870 Watts
Color
Blue
Discharge Size
2 Inches
Features
Automatic Shutoff
Finish
Epoxy
Flow Rate
100 GPM
Horsepower
4/10 HP
Material
Cast Iron
Maximum Pressure
8.7 PSI
Maximum Suction Lift
20 Feet
Maximum Temperature
140 Degrees F
Motor Type
PSC
Plug Type
NEMA 5-15P
Power Type
Electric
Type
Sewage Pumps

Little Giant Pumps 509413 Details

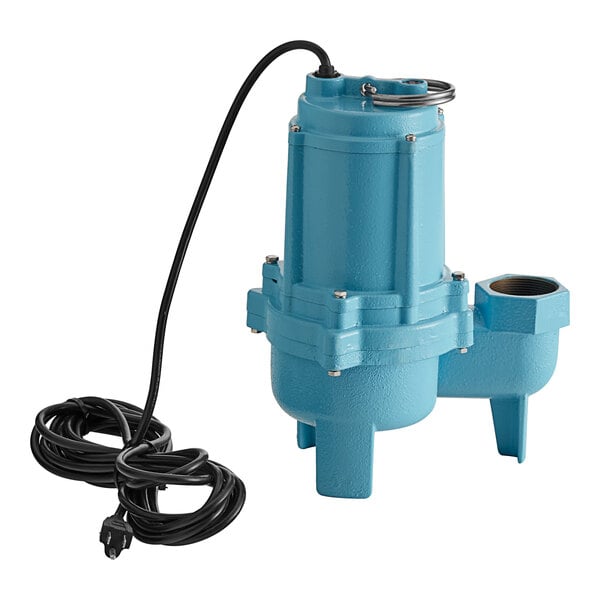

Effectively remove or transfer water with this Little Giant 9SC Series manual sewage pump! Made with an epoxy-coated cast iron base and body with stainless steel fasteners for long life and durability, this pump is designed for continuous use. It's ideal for removing effluent gray water or wastewater with up to 2" solids for wastewater transfer and dewatering applications in light industrial environments like basins or lift stations.

This pump is designed with a manual switch to activate the pump and thermal overload protection that automatically resets if overloading or overheating occurs. It includes a 2" FNPT discharge, while the 4/10 hp PSC (permanent split capacitor) motor produces a maximum flow rate of 100 GPM at a height of 5 feet and reaches a maximum shut-off of 20 feet. The unit has a maximum liquid temperature of 140 degrees Fahrenheit. It features a nitrile seal with carbon and ceramic faces and a nylon impeller. It requires a 115V electrical connection for operation and features a 20' power cord.

Overall Dimensions:
Width: 8 5/8"
Depth: 10 7/16"
Height: 13 5/8"

Attention CA Residents:
  • CSA, US

    CSA, US

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in the United States.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Little Giant Pumps 509413

A PDF viewer is required to view this product's information. Download Adobe Acrobat software
