Product Overview

  • Single face design with bright, easy-to-read LED lettering
  • 4.8V long life, maintenance free, rechargeable NiCad battery backup for 90 minutes of illumination
  • Aluminum mounting canopy for top or end mount; universal knockout pattern for wall mount
  • Premium grade aluminum housing; field selectable chevron directional indicators
  • 120/277V dual voltage
UPC Code:400013522580
Shipping:Special Order Not eligible for expedited shipping

Specs

Quantity
1/Each
Shipping Weight
18 lb.
Width
12 5/8 Inches
Depth
2 Inches
Height
8 3/8 Inches
Voltage
120/277 Volts
Battery Life
90 Minutes
Battery Type
4.8V NiCad battery

Rechargeable
Color
Silver
Face Plate Color
Silver
Features
1 Number of Face

Battery Backup

Directional Chevron

LED Lighting
Housing Color
Silver
Housing Type
Aluminum
Language
English
Lettering Color
Green
Plug Type
Hardwire
Ratings
NFPA Compliant

UL
Type
Exit Signs

Details

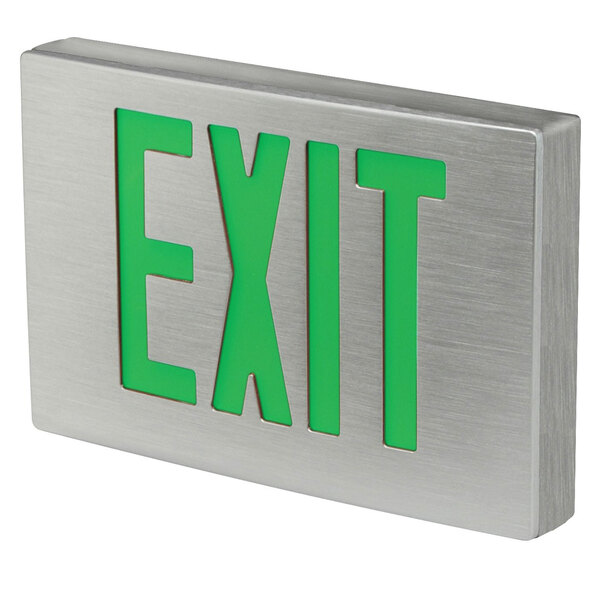

Be prepared with this Lavex Industrial single face die cast aluminum exit sign with green lettering and a battery backup! This unit uses bright, energy-efficient LEDs to illuminate the exit sign. Plus, it comes with a battery backup so that even if the power goes out your emergency exits will still be clearly visible.

Ultra-bright, energy efficient, long-life green colored LED lights illuminate the word "EXIT" on the sign's face. There is an internal solid state transfer switch that automatically connects the internal battery to the LED lights for a minimum of 90 minutes of emergency illumination.

To make sure that the light keeps working even when the power is out, this unit comes with a 4.8V long-life, maintenance-free, rechargeable NiCad battery. Inside the unit is a fully automatic charger that keeps the battery charged and ready to use. After the battery is discharged, the charger will ensure that it is completely recharged in 24 hours. Plus, there is a charge rate and power on LED indicator light with a test button on the unit so that you can periodically check that it is functioning properly.

This exit sign features a premium die-cast housing made of durable aluminum. An aluminum canopy is included for use in cases where the sign needs to be top or end mounted while the universal knockout pattern on the back plate allows for wall mounting. Plus, the unit features in-the-field knockout chevron directional indicators so that you can choose which way you want the sign to point.

This unit requires a 120/277V electrical connection for operation and is approved for use in damp locations (32 to 122 degrees Fahrenheit). This unit's overall input wattage is 3.8W for a 120V connection or 4.4W for a 277V connection.

Overall Dimensions:
Width: 12 5/8"
Depth: 2"
Depth (with canopy): 4 5/16"
Height: 8 3/8"
Height (with canopy): 9"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • NFPA Compliant

    NFPA Compliant

    This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
