Other Available Colors:

  • White
  • Black

Product Overview

  • Premium grade aluminum housing with a white powder-coated finish and field selectable knockouts
  • Ultra bright, energy efficient, long-life red LED lettering
  • Charge rate / power "ON" LED indicator light and push-to-test switch ensure code compliance
  • 4.8V NiCad battery backup for 90 minutes of emergency illumination
  • 120/277V dual voltage
UPC Code:400013327499
Shipping:Special Order Not eligible for expedited shipping


Shipping Weight
10 lb.
12 5/8 Inches
2 Inches
8 3/8 Inches
120/277 Volts
Battery Life
90 Minutes
Battery Type
4.8V NiCad battery
Face Plate Color
1 Number of Face

Battery Backup

LED Lighting
Housing Color
Housing Type
Lettering Color
Plug Type
NFPA Compliant

Exit Signs

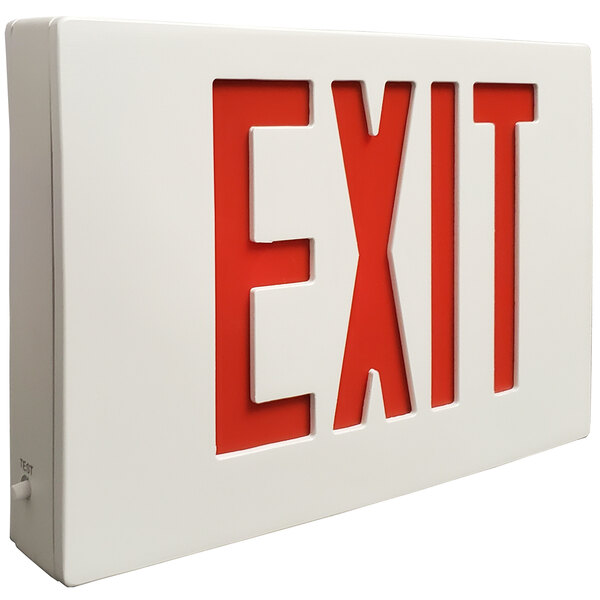

Be prepared with this Lavex Industrial thin die cast single face white LED exit sign with red lettering! This exit sign with its ultra bright, energy efficient, red illuminated lettering, long-lasting LED lamp life, and thin design allows you to be sure your emergency exits are always easy to find. And since it has a battery backup, the sign will stay illuminated for up to 90 minutes even after the power goes out!

The 4.8V NiCad battery backup is designed for a long, maintenance-free lifespan. It features an internal solid-state transfer switch that automatically connects the internal battery to the LED lights in case the power goes out. After the battery is used, the automatic two-rate charger initiates the charging process to ensure the battery is fully recharged within 24 hours.

This model is completely self-contained for efficient, professional installation and safe operation. Each exit sign features a sleek, compact, low-profile design with a neutral finish that fits well in most venues. Field selectable knockout chevron indicators let you choose which direction the sign should point. The white housing is made of durable die cast aluminum and an aluminum canopy comes with this emergency sign so that it can be mounted either from the top or the end. It has a universal K/O pattern on the back plate for convenient wall mounting, too.

The long-lasting LED lights in this exit sign last for years, so you don't have to worry about replacing bulbs frequently. Other features of this exit sign include a charge rate / power "ON" LED indicator light and a push-to-test switch so you can be sure the sign is operating properly and complies with local codes. It also features a quick-snap face plate closure.

This unit is approved for use in damp locations like storage rooms and back of the house areas! It requires a 120V or 277V electrical connection for operation. This unit's overall input wattage is 3.8W for a 120V connection or 4.4W for a 277V connection.

Overall Dimensions:
Width: 12 5/8"
Depth: 2"
Depth with Mounting Canopy: 4 5/16"
Height: 8 3/8"
Height with Mounting Canopy: 9"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • NFPA Compliant

    NFPA Compliant

    This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.
