Product Overview

  • Premium aluminum housing; self-adhering chevron indicators and a placement guide
  • Designed for recessed installation; comes with bar hangers for drywall or drop ceiling installation
  • Bright, efficient LED lights with a UV-stabilized clear acrylic edge lit panel
  • Includes a 4.8V long live maintenance free rechargeable NiCad battery backup
  • Dual voltage, 120/277V; includes self-diagnostics
UPC Code:400013536327
Shipping:Special Order Not eligible for expedited shipping


Shipping Weight
5 lb.
14 9/16 Inches
5 7/16 Inches
10 9/16 Inches
120/277 Volts
Battery Life
90 Minutes
Battery Type
4.8V NiCad battery

1 Number of Face

Battery Backup

Directional Chevron

LED Lighting

Recessed Mounting
Lettering Color
Plug Type
NFPA Compliant

Exit Signs
Unit Wattage
3.6 Watts

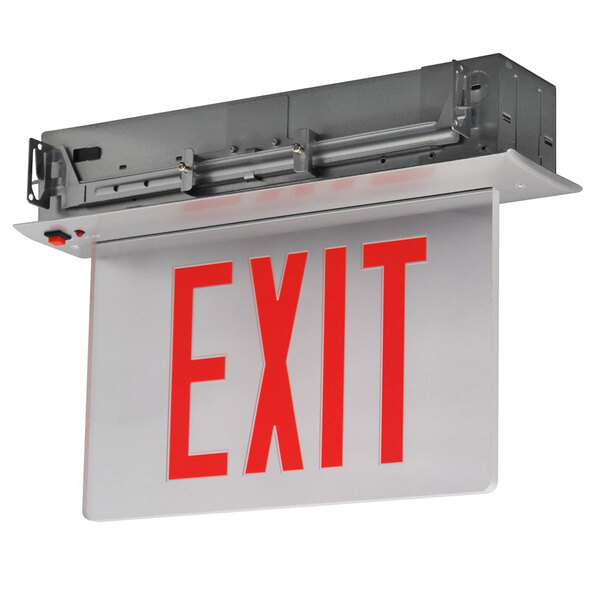

Be prepared with this Lavex Industrial single face white / clear recessed exit sign with red LED lettering, edge lighting, self-diagnostics, and a battery backup! This exit sign with its ultra bright, energy efficient, illuminated lettering, long-lasting LED lamp life, and thin design allows you to be sure your emergency exits are always easy to find. Plus, the battery backup means your exit signs stay illuminated during power outages!

Made to keep working in emergency situations, this exit sign comes with a 4.8V, maintenance free, long life, rechargeable NiCad battery backup. This backup battery keeps the sign illuminated for a minimum of 90 minutes when the power goes out. This exit sign also has a fully automatic, two rate, solid state charger in order to recharge a discharged battery within 24 hours.

Each exit sign features a sleek, compact, low-profile design with a neutral finish that fits well in most venues. Self-adhering chevron applique indicators let you choose which direction the sign should point. The exit sign comes with the indicators and a placement guide so you can ensure that the sign indicates the proper direction. The housing is made of durable, premium grade aluminum and is designed for recessed ceiling mounting in either drywall or a drop ceiling with the included bar hangers. The trim assembly is easily removable in order to provide access for service and maintenance of the exit sign.

Other features of this exit sign include a push-to-test switch and a charge rate / power on LED indicator light so you can be sure the sign is operating properly. It also has self-diagnostics that perform monthly, biannual, and annual tests to ensure reliable operation and help to meet electrical and safety codes. The long-lasting LED lights in this exit sign last for years and the clear acrylic panel features LED edge lighting for consistent, uniform illumination. This dual voltage sign requires a 120V/277V electrical connection for operation and is UL listed for damp locations (32 degrees Farenheit to 122 degrees Farenheit). This unit's overall input wattage is 3.6W for a 120V connection or 4.0W for a 277V connection.

Overall Dimensions:
Width (with housing): 14 9/16"
Depth: 3/8"
Depth (with housing): 5 7/16"
Height (with housing): 10 9/16"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • NFPA Compliant

    NFPA Compliant

    This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
