Product Overview

  • LED lettering set in a mirror mylar panel; self-adhesive chevron appliques provided
  • Includes a rechargeable 4.8V NiCad battery backup for 90 minutes of emergency illumination
  • Premium aluminum housing with a white powder-coated finish; trim is easily removable for maintenance
  • Made for recessed ceiling mounting into drop ceilings or drywall with the included bar hangers
  • LED edge lighting for consistent, uniform illumination; 120/277V
UPC Code:400013328144
Shipping:Special Order Not eligible for expedited shipping


Shipping Weight
5 lb.
14 9/16 Inches
5 7/16 Inches
10 9/16 Inches
120/277 Volts
Battery Life
90 Minutes
Battery Type
4.8V NiCad battery

1 Number of Face

Battery Backup

LED Lighting

Recessed Mounting
Housing Type
Lettering Color
Plug Type
NFPA Compliant

Exit Signs

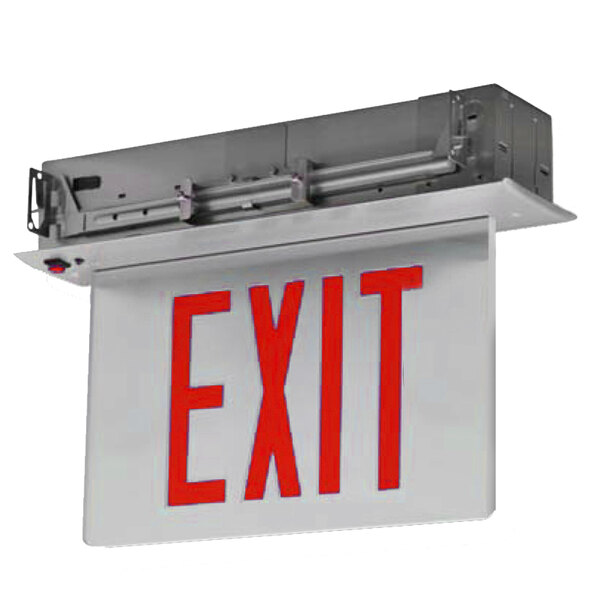

Be prepared with this Lavex Industrial single face mirror / white recessed exit sign with red LED lettering, edge lighting, and a battery backup! This exit sign with its ultra bright, energy efficient, red illuminated lettering, long-lasting LED lamp life, and thin design allows you to be sure your emergency exits are always easy to find. The battery backup ensures that your exits remain visible even during a power outage.

The 4.8V NiCad battery backup is designed for a long, maintenance-free lifespan. It features an internal solid-state transfer switch that automatically connects the internal battery to the LED lights in case the power goes out. It can provide a minimum of 90 minutes of illumination in case of emergency. After the battery is used, the automatic two-rate charger initiates the charging process to ensure the battery is fully recharged within 24 hours.

Each exit sign features a sleek, compact, low-profile design with a neutral finish that fits well in most venues. Self-adhering chevron applique indicators let you choose which direction the sign should point. The exit sign comes with the indicators and a guide template so you can ensure that the sign indicates the proper direction. The housing is made of durable, premium grade aluminum with a white powder-coated finish and is designed for recessed ceiling mounting in either drywall or a drop ceiling with the included bar hangers. The trim is easily removable in order to provide access for service and maintenance of the exit sign.

The long-lasting LED lights in this exit sign last for years and the mirror mylar sign panel features LED edge lighting for consistent, uniform illumination. Other features of this exit sign include a charge rate / power "ON" LED indicator light and a push-to-test switch so you can be sure the sign is operating properly and complies with local codes. It requires a 120V/277V electrical connection for operation. This unit's overall input wattage is 3.6W for a 120V connection or 4.0W for a 277V connection.

Overall Dimensions:
Width (with housing): 14 9/16"
Depth: 3/8"
Depth (with housing): 5 7/16"
Height (with housing): 10 9/16"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • NFPA Compliant

    NFPA Compliant

    This item meets the criteria established by the National Fire Protection Association for fire protection codes and standards.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
