Product Overview

  • Fan-forced design provides a steady output of warm air
  • Ceramic heating core with aluminum fins ensures even, effective heating
  • Squirrel cage blower and tangential fans in the bottom of the cabinet effectively move warm air
  • Low noise design is not disruptive to building occupants
  • 18 gauge steel enclosure provides additional durability
UPC Code:400014369481

King Electric KCF3-2030-3-S-T-DS3 Specs

Shipping Weight
45 lb.
36 Inches
4 Inches
24 Inches
3 Phase
208 Volts
Electronic Thermostat

Made in America
Installation Type
Horizontal Mount
70 CFM
Mounting Style
Wall Mounted
Plug Type
Convection Heaters


King Electric KCF3-2030-3-S-T-DS3 Details

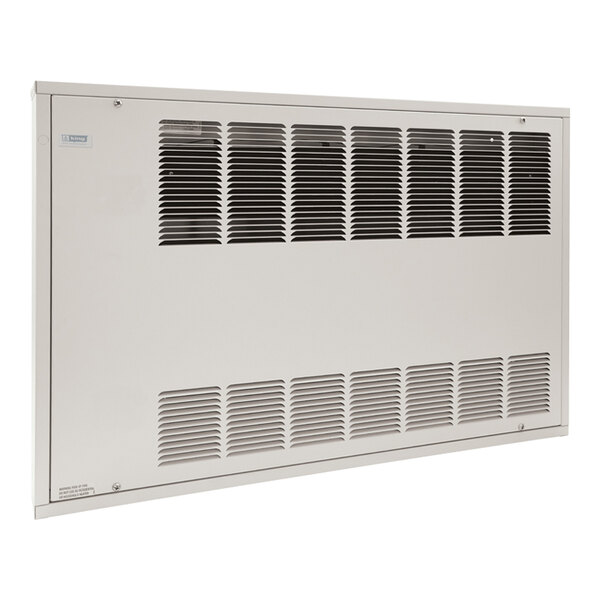

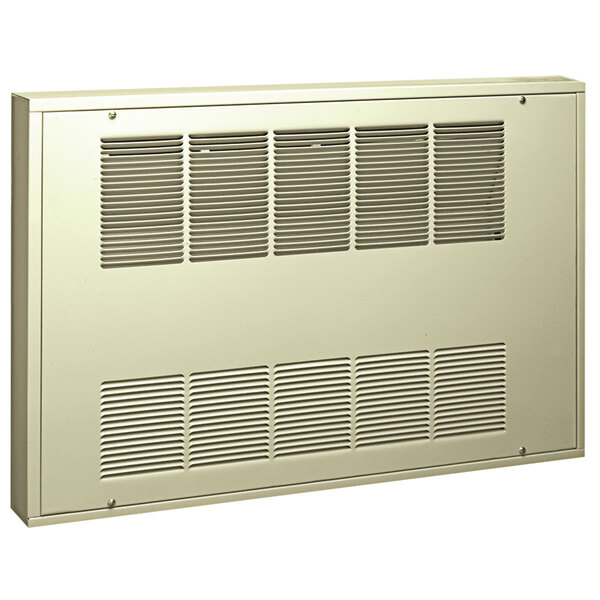

Provide comfortable heating without sacrificing space with this King Electric KCF3-2030-3-S-T-DS3 compact fan forced surface mount cabinet heater. This compact heater's slim design is ideal for schools, offices, auditoriums, and other commercial spaces. It's also ideal for heating entryways where space is minimal, and it reduces temperature swings to provide consistent comfort. This heater is constructed of durable, impact-resistant 18 gauge steel with a powder-coated finish, ensuring it can withstand placement in high-traffic areas. Its almond color makes it an unobtrusive addition to your space.

This heater's high mass ceramic heating core features high grade aluminum fins to create even, consistent heat output, all while running quietly so as not to disrupt occupants. This allows the element to continue radiating heat when the thermostat is turned off. It features a low noise squirrel cage blower and tangential fans that deliver 70 CFM each at the bottom of the cabinet to effectively move heated air into the space. A thermal overload cutout ensures the unit will automatically shut off if it were to overheat. This surface mount unit includes a 25 Amp double pole thermostat with knob control and a three pole disconnect switch. A 208V, 3 phase electrical connection is required for operation. Must be mounted horizontally.

Overall Dimensions:
Width: 36"
Depth: 4"
Height: 24"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL C_Classified_US

    UL C_Classified_US

    This item has been evaluated by the Underwriters Laboratories (UL) to meet specific properties and a limited range of hazards for product safety.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
