Product Overview

  • Energy-saving heater works with NEST or any 24V WiFi thermostat
  • Features a remote control with an included wall holder to easily adjust heater temperature and mode
  • Adjustable louvres direct heat in the proper direction; fan only mode provides airflow without heat
  • Quick access panel allows for easy maintenance and repairs
  • Includes a universal wall / ceiling bracket for convenient mounting
UPC Code:400014368569

King Electric KB2005-3MP-PLTMX Specs

Shipping Weight
45 lb.
15 Inches
18 Inches
16 1/2 Inches
1 - 3 Phase
208 Volts
5 Kilowatts
Electronic Thermostat

Made in America

Remote Control
400 CFM
Mounting Style

Wall Mounted
Plug Type
Temperature Range
40 - 100 Degrees F

King Electric KB2005-3MP-PLTMX Details

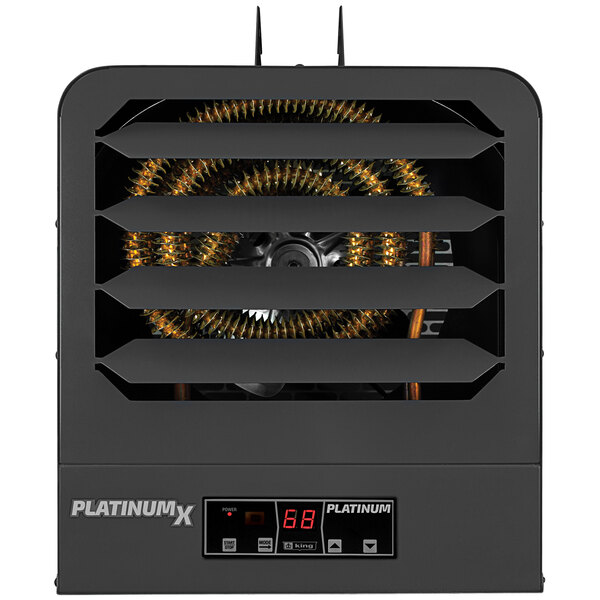

Provide a steady flow of warm air in your facility with this King Electric KB2005-3MP-PLTMX PlatinumX Series portable unit heater with mounting brackets. This portable heater is designed for high capacity, temporary heating in industrial spaces like garages and warehouses. Because it relies on electricity to produce heat, this heater does not create odor, flame, nor does it pose a risk for carbon monoxide. It's also ideal for drying applications where dry, electric heat outperforms propane- or kerosene-generated heat. Instead, its long-lasting motor works quickly and efficiently to heat 400 CFM with an air throw of 16', while adjustable louvers allow you to direct the heat in the proper direction to maximize the warmth in your space.

The heater's spiral steel fin heating element regulates heat so it flows evenly through the copper brazed coil. It eliminates the potential of overheating and uses less energy, saving you money. The built-in fan delay is another huge benefit to this heater, as it separates the compressor from the air handler. Instead of both shutting off at the same time with air building up within the unit, the fan delay allows the air handler to continue for a period of time after the compressor shuts off so the fan can push all of the remaining air out of the unit. Plus, a built-in thermostat displays the temperature between 40 and 100 degrees Fahrenheit.

Thanks to a signature PlatinumX electronic temperature controller, this unit is eco-friendly and saves energy, allowing you to heat your space efficiently and keeping energy bills lower than comparable models. This unit is even compatible with 24V WiFi thermostats, including NEST thermostats, so you can conveniently control the temperature from afar, or you can adjust the temperature with the included remote control. During the summer, you can switch this unit to fan-only mode to allow it to run without heating the space. It can even operate on a timer to accommodate different shifts and work schedules. If the heater needs maintenance or repairs, a quick access panel allows for easy diagnosis and adjustments to be made. For added safety, this heater includes King's Smart Limit Protection, ensuring that it will shut off if it senses abnormal temperatures that could pose a safety risk and will only turn back on manually. This unit features a universal wall and ceiling mounting bracket and requires a 208V, 1-3 phase electrical connection for operation.

Overall Dimensions:
Width: 15"
Depth: 18"
Height: 16 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL C_Classified_US

    UL C_Classified_US

    This item has been evaluated by the Underwriters Laboratories (UL) to meet specific properties and a limited range of hazards for product safety.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
