Product Overview

  • Cast iron body, porcelain interior coating provides acid resistance
  • 12" square cast iron non-traffic-rated 1/2 grate
  • 4" no-hub outlet
  • Internal dome strainer over drain outlet
  • Wide double flange design with weep holes
UPC Code:400016052015

Josam 49324A-Z-3 Specs

Quantity
1/Each
Shipping Weight
45 lb.
Width
15 Inches
Depth
15 Inches
Height
8 3/8 Inches
Outlet Diameter
4 Inches
Grate Size
12" Square (1/2 Grate)
Material
Cast Iron
Style
Cast Iron Grate
Type
Floor Sinks

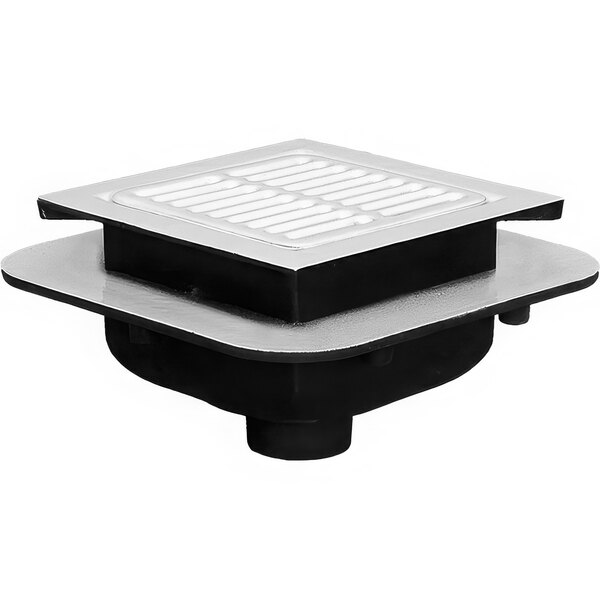

Josam 49324A-Z-3 Details

This Josam 49324A-Z-3 floor sink provides excellent drainage for a wide range of installations. The drain body is made from cast iron with a porcelain interior coating designed to resist acid and provide years of reliable use, while the wide double flange body design helps to anchor the drain firmly. Weep holes help to redirect wastewater into the drain, should any seepage occur around the grate.

The 12" square cast iron 1/2 grate provides exceptional durability in non-traffic installations and allows water to drain freely while still blocking larger debris and preventing clogs. Additionally, the 1/2 grate design provides an open space to route equipment and condensate drain lines while still providing partial coverage for foot traffic. It comes with a 4" no-hub outlet.

Overall Dimensions:
Width: 15"
Depth: 15"
Height: 8 3/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
