Product Overview

  • 2-piece coated cast iron drain body
  • 9" round cast iron grate with perimeter drain slots
  • 2" no-hub outlet
  • Invertible clamp collar design
  • Wide double flange design with weep holes
UPC Code:400015914291

Josam 32102-Z Specs

Quantity
1/Each
Shipping Weight
2 lb.
Height
5 3/4 Inches
Diameter
12 5/8 Inches
Outlet Diameter
2 Inches
Grate Size
9" Round
Material
Cast Iron
Style
Cast Iron Grate
Type
Floor Drains

Josam 32102-Z Details

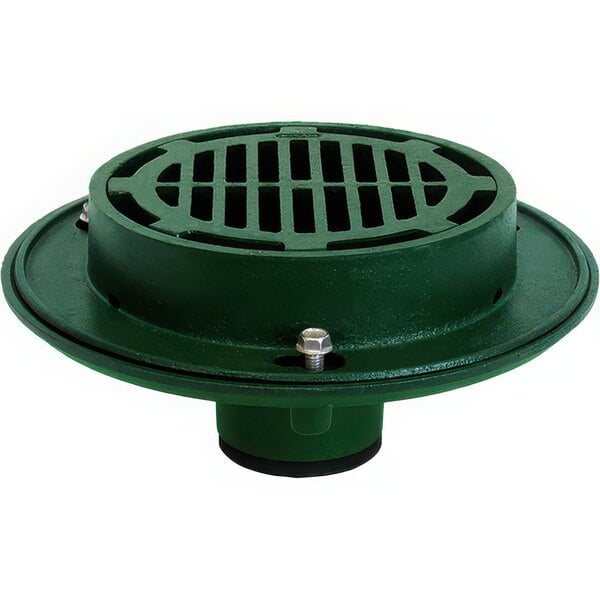

This Josam 32102-Z floor drain provides excellent drainage for a wide range of installations. It features a 2-piece drain body made from coated cast iron to provide years of reliable use, while the wide double flange body design helps to anchor the drain firmly. Weep holes help to redirect wastewater into the drain, should any seepage occur around the grate. The wedge lock flashing collar design won't puncture the waterproofing membrane and provides a positive bond between the membrane and the drain body, ensuring a good installation and preventing costly repairs from water damage down the road.

The 9" round anti-tilting cast iron grate provides exceptional durability and allows water to drain freely while still blocking larger debris and preventing clogs. It comes with a 2" no-hub outlet.

Overall Dimensions:
Diameter: 12 5/8"
Height: 5 3/4"
