$2,474.13/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- 99-132 lb. capacity; 24" tall spit
- Selector switch to choose direction of rotation for right or left handed cutting
- Well insulated motor avoids water or grease contact
- Preserves heat and energy with heat shields on either side
- Liquid propane, 30,750 BTU; 120V
- Quantity
- 1/Each
- Shipping Weight
- 88 lb.
- Width
- 18 11/16 Inches
- Depth
- 29 1/2 Inches
- Height
- 36 Inches
- Spit Length
- 24 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Capacity
- 99 - 132 lb.
- Features
- Adjustable Burners Adjustable Heat Reflectors NSF Listed Slip Clutch
- Gas Connection Size
- 1/2 Inches
- Number of Burners
- 3 Burners
- Plug Type
- NEMA 5-15P
- Power Type
- Liquid Propane
- Total BTU
- 30,700 BTU
- Type
- Vertical Broiler
Inoksan PDG113M-LP Details

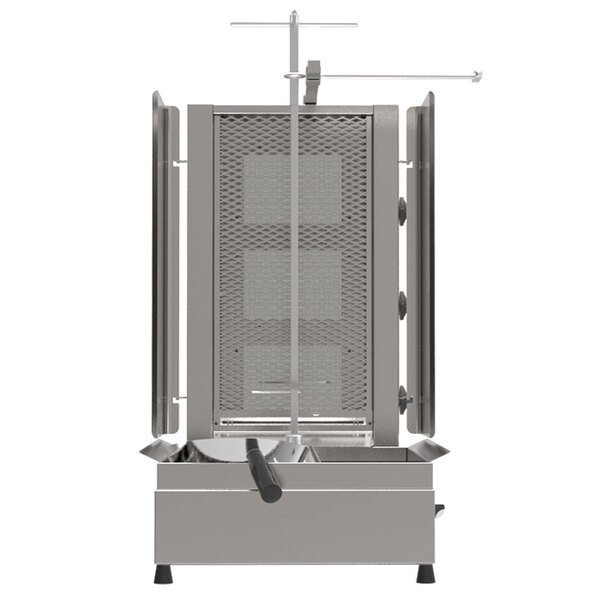

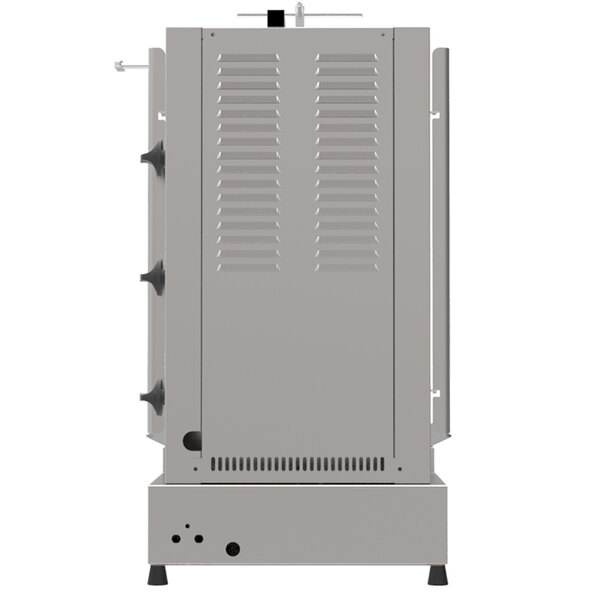

Create delicious strips of meat for your gyros or doner kebabs with this Inoksan PDG113M-LP liquid propane gyro machine / 3 double vertical broiler with mesh shield - 99-132 lb. capacity. Designed for high performance and consistent results, this vertical broiler uses an insulated motor to turn the spit at a speed of 1 RPM so you get the even roast you're looking for. It has a selector switch that allows you to choose which direction the spit should rotate for either right handed or left handed cutting. The design of the machine and the 24" tall spit ensure an inclined cut of the meat.
This unit is made of durable type 304 stainless steel that is corrosion-resistant and easy to clean for a sanitary cooking environment. For convenient use, this vertical broiler comes with a spit, a meat shovel, a drip tray, and fixing pins. The drip tray helps to contain drips and splatters so that the machine looks more presentable if you are cooking in an area that is visible to customers.
So you can more easily control the heat settings on this broiler, or quickly replace broken heaters, this model has three independent double burners and low / high heat settings of 572 / 932 degrees Fahrenheit. Additionally, there is an adjustable back burner that can be moved back and forth on a rail mechanism, allowing you to move the burner closer to the meat when necessary. This broiler also features a gas safety valve that cuts the flow of fuel if the flame goes out.
Models will ship as natural gas, but contain a liquid propane conversion kit.
Overall Dimensions:
Width: 18 11/16"
Depth: 29 1/2"
Height: 36"
Spit Length: 24"
Customer questions about this product
My business is at a high elevation; does this change anything when I order gas cooking equipment?
1/2" Gas Connection
This unit comes with a 1/2" gas connection to be installed by a professional.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
5-15P
This unit comes with a NEMA 5-15P plug.
EAC - Eurasian Conformity Mark
This item meets the technical regulations set forth by the Customs Union countries.
CE Listed
This product complies with the standards imposed by Conformance European (CE).
