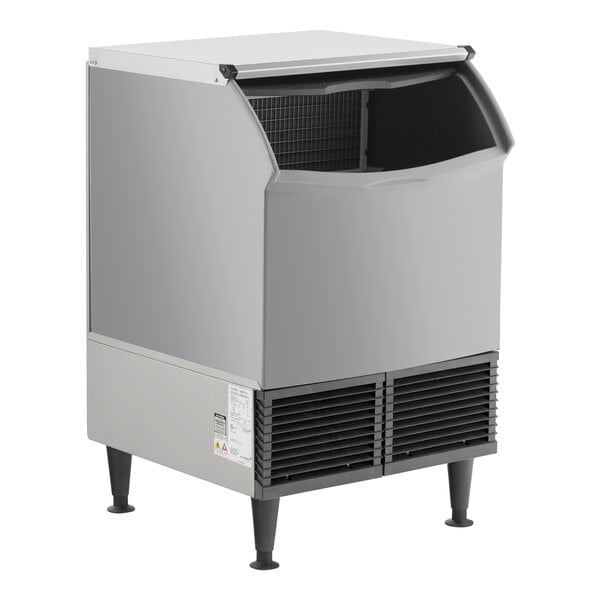

Ice-O-Matic CIMU220HA90 24 1/2" Air-Cooled Undercounter Half Dice Cube Ice Machine with 74 lb. Bin - 223 lb., 115V

Item number  458cimu220ha90MFR number  CIMU220HA90

Ships free withLearn More
Free Shipping

$3,352.00/Each

Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $164.55

Earn up to $100.56 back (10,056 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Produces up to 223 lb. of half dice cube ice per day
  • Included storage bin holds up to 74 lb. of ice
  • Corrosion-resistant and fingerprint-proof aluminum construction
  • Harvest Assist feature offers consistent ice production
  • Easy-to-read control display; R-290A refrigerant, 115V

UPC Code:cimu220ha90

View All Products From Ice-O-MaticView all Ice-O-Matic Undercounter Ice Machines

Works With

Ice-O-Matic CIMU220HA90 Specs

Quantity
1/Each
Shipping Weight
153 lb.
Width
24 1/2 Inches
Depth
26 3/8 Inches
Height
39 Inches
Amps
9.1 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
223 Pounds
Ambient Temperature Range
50 - 100 Degrees F
Bin Storage Capacity
74 lb.
Condenser Type
Air Cooled
Features
Energy Star Qualified Made in America NSF Certified
Ice Type
Dice Half Size Cubes
Installation Type
Undercounter
Material
Aluminum
Plug Type
Hardwire
Power Usage
3.7 - 5.82 kWh per 100 lbs.
Refrigerant Type
R-290A
Type
Ice Machines with Bins
Water Inlet Size
3/8 Inches
Water Pressure Range
20 - 80 PSI
Water Temperature Range
40 - 100 Degrees F
Water Usage
22.5 Gallons Per 100 lbs.

Ice-O-Matic CIMU220HA90 Details

Produce and store up to 223 lb. of 3/8" x 7/8" x 7/8" half dice cube ice per day with this Ice-O-Matic air-cooled undercounter ice machine. Crafted with corrosion-resistant and fingerprint-proof aluminum, this ice machine is built to withstand the demands of a busy commercial kitchen. Plus, all evaporator plates have durable, electroless nickel plating for added reliability. Thanks to the built-in ice bin, you can store up to 74 lb. of ice at a time.

This ice machine is designed for convenience with quick and easy one-touch cleaning and a front-breathing design that allows for flexibility in installation options to suit your kitchen layout. It is made for those tight undercounter spaces where you need to have ice handy but don't have room for a loud, large, bulky modular machine. This unit's space-saving 24 1/2" wide undercounter design is great for use under a counter at your bar, diner, or cafe. Plus, the front air intake and discharge to help reduce the required installation clearances - a must-have for tight spaces.

The Harvest Assist feature ensures consistent ice production for the life of the ice machine to increase capacity, reduce energy consumption, and allow you to keep up with high demand without sacrificing quality. It also has an easy-to-read control display, allowing for status checks, simple cleaning, and quick adjustments. The incorporated error functionality improves reliability, while the wiring harness helps to reduce complexity to make troubleshooting quick and easy!

Using R-290A refrigerant, this ice machine is ideal for restaurants, bars, and hotels. This Ice-O-Matic ice machine delivers reliable performance and high-volume ice production to meet your establishment's needs. It requires a 115V electric connection and must be hardwired. A cord and plug are not included. Compatible ice dispensers are sold separately.

Overall Dimensions:
 Width: 24 1/2"
Depth: 26 3/8"
Height: 39"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
