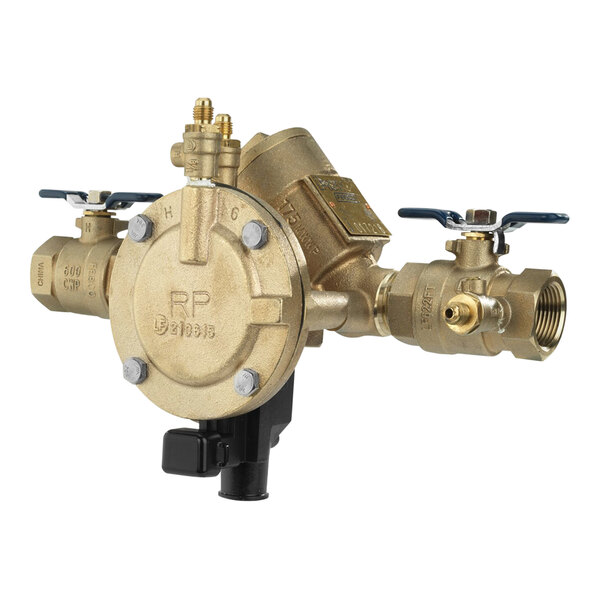

FEBCO F825DBV 825Y-QT-FS 3/4" Reduced Pressure Zone Assembly

Febco F825DBV Details

This FEBCO 825Y-QT-FS 3/4" reduced pressure zone assembly is designed to protect potable water supplies from cross-connection contamination of high-hazard or toxic fluids. It's ideal for a variety of applications, including industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feeds, and water lines. It features 3/4" NPT inlet and outlet connections, threaded quarter-turn ball valves, test cocks, spring-loaded Y pattern check valves, and a hydraulically dependent differential relief valve. The modular relief valve and check valves allow for easy maintenance. This assembly can be used with SentryPlus Alert (sold separately) to activate the flood sensor, which detects excessive water discharges from the relief valve.

This unit sports a durable bronze body. All of the internal components are serviceable in-line, and the seat rings are replaceable on all sizes. This unit has low head loss and a maximum working pressure of 175 PSI with a temperature range of 32 to 140 degrees Fahrenheit.

Overall Dimensions:
Length: 12"
Height: 6 1/2"
