Product Overview
- 11" gooseneck spout with 2.0 GPM laminar flow rate and 5 3/8" centerline
- Widespread deck-mounted base with 6"-20" adjustable centers and 1/2" - 14 NPSM coupling nuts
- Heavy-duty quarter-turn ceramic cartridges for superior wear resistance
- Cast brass faucet body with a polished, chrome-plated finish
- Color-coded, vandal-resistant wrist blade handles
Shipping Restrictions
Other Products from this Line
$103.78/Each
$206.43/Each
$225.71/Each
$141.65/Each
$206.43/Each
$182.29/Each
$152.49/Each
$196.49/Each
$136.16/Each
$176.78/Each
$196.49/Each
$169.99/Each
$222.99/Each
$196.49/Each
$168.01/Each
$173.50/Each
$196.56/Each
$194.99/Each
$212.99/Each
$206.99/Each
$206.43/Each
$188.99/Each
$196.49/Each
$169.99/Each
$172.49/Each
$209.99/Each
$209.99/Each
$212.99/Each
$176.49/Each
$188.99/Each
$220.70/Each
$212.49/Each
$227.29/Each
$222.57/Each
$214.10/Each
- Quantity
- 1/Each
- Shipping Weight
- 7.23 lb.
- Handle Length
- 4 Inches
- Spout Length
- 5 3/8 Inches
- Faucet Width
- 14 - 28 Inches
- Faucet Height
- 11 Inches
- Cartridge Type
- Ceramic
- Faucet Centers
- 6 - 20 Inches
- Features
- ADA Compliant Made in America
- Finish
- Chrome
- Flow Rate
- 2 GPM
- Handle Type
- Wrist
- Material
- Cast Brass
- Mounting Style
- Deck Mounted
- Mounting Type
- Adjustable Concealed Base
- Pressure Rating
- 125 PSI
- Rough In
- Adjustable
- Spout Clearance
- 6 7/8 Inches
- Spout Type
- Gooseneck
- Sprayer
- Without Sprayer
- Temperature Rating
- 180 Degrees F
- Type
- Faucets
- Water Inlet Size
- 1/2 Inches

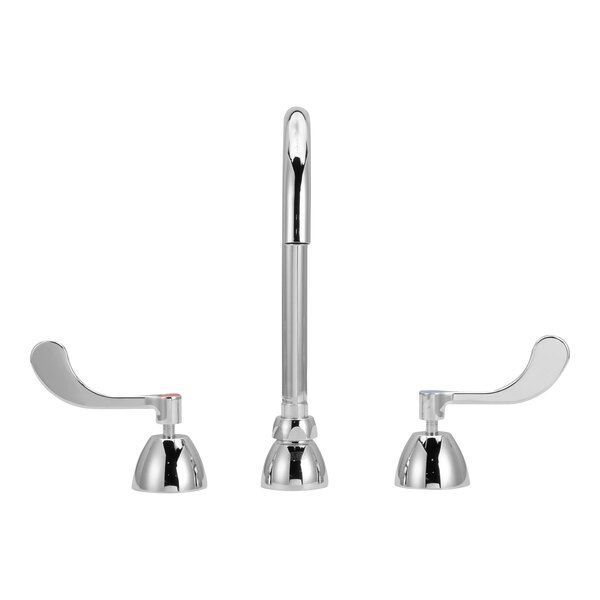

Zurn Elkay Z831B4-XL-FC Details
This Zurn Elkay AquaSpec widespread deck-mount faucet delivers superior quality and durability in any installation. This model boasts an 11" tall gooseneck spout with a 5 3/8" centerline that provides a comfortable level of clearance and a sleek, elegant look. The faucet body is made from cast brass with a polished, chrome-plated finish, and it features a pressure-compensating laminar flow control in the base of the spout that provides a water flow of 2.0 GPM with a maximum pressure of 125 PSI. The water flow is controlled with a set of 4" color-coded, vandal-resistant metal wrist blade handles that let you adjust for the desired mix of hot and cold water and reduce the spread of germs by using your wrists to activate. It can handle water temperatures up to 180 degrees Fahrenheit.
For added peace of mind, the cartridges use a quarter-turn ceramic disc design that provides superior wear resistance compared to a standard compression seat washer design. Designed for use with standard lavatory risers, this deck-mount faucet installs with a set of 1/2" - 14 NPSM connections on a widespread base that keeps the handles and the spout above the deck, for a contemporary look and also greater installation flexibility. You can adjust the centers from 6" to 20", giving you the freedom to place each handle exactly where it's needed. For added convenience, this unit accommodates installations up to 1 1/8" thick and all necessary mounting hardware is included.
Overall Dimensions:
Spout Length: 5 3/8"
Faucet Height: 11"
Faucet Width: 14"-28"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Does this item have any additional agency approvals and certifications?
I live in California. Can I purchase this product?
What measurements do I need to install a faucet?
Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.
Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.
Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Made in America
This item was made in the United States of America.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
