$579.00/Each

Ships free with Plus

Earn up to $17.37 back (1,737 points)with a Webstaurant Rewards Visa® Credit Card

Feature: With 10" Add-On Faucet

Usually Ships in 5-10 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 44" flexible hose, 1.2 GPM spray valve
  • Single hole design, 1"/2" NPT inlet
  • Deck mounted base
  • Chrome-plated brass construction
  • Lever handle design
UPC Code:094902775890

Zurn Elkay LK543AF10LC Specs

Quantity
1/Each
Shipping Weight
13 lb.
Hose Length
44 Inches
Faucet Height
41 1/8 Inches
Add-On Faucet
10 Inches
Add-on Flow Rate
1.5 GPM
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
Single
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Pre Rinse Unit Type
Hose and Spring
Spray Valve Flow Rate
1.2 GPM
Water Inlet Size
1/2 Inches

Zurn Elkay LK543AF10LC Details

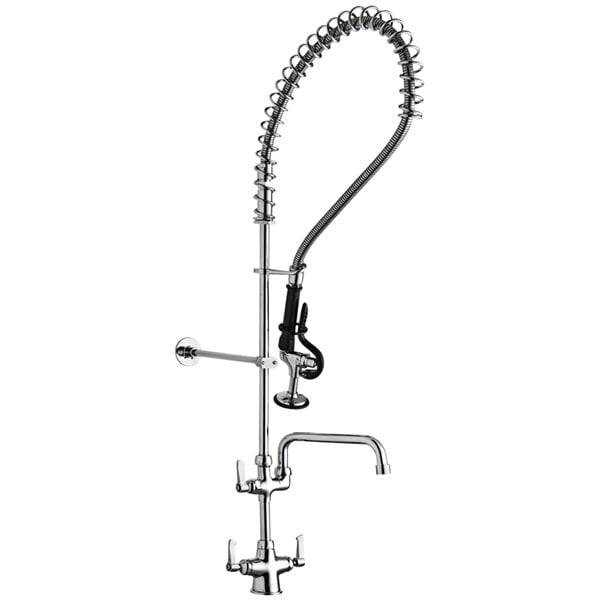

This Zurn Elkay LK543AF10LC 1.2 GPM deck mount pre-rinse faucet with 10" add-on faucet and single base is an excellent choice when you need a reliable, affordable way to pre-scrap dishes and glassware before washing! Thanks to its 44" long flex hose, this pre-rinse provides the flexibility needed to quickly fill up a sink or hose off a big stock pot with ease, while the 1.2 GPM spray valve provides the power to blast away even stubborn dirt and debris and get dinnerware ready for washing.

With the 10" add-on faucet, you can also use your pre-rinse like a normal faucet too! The swing design delivers water exactly where you need it, and the movable design lets you adjust it to fill multi-compartment sinks or maneuver around larger cooking vessels. It's also a great option for hand-washing, too! The faucet installs on your sink deck on a pair of 8" centers and connects to the facility water lines with a set of 1/2" NPT inlets. The faucet body is made from chrome-plated brass that complements nearly any design aesthetic, and the water flow is controlled by a pair of simple lever handles, with a single handle for the add-on faucet.

Two 2" lever handles control the water flow on this faucet, while the ceramic disc design delivers maximum leak protection. This innovative design uses ceramic discs to actuate the water flow, in place of the many moving parts and O-rings found in a standard compression cartridge assembly. Because these discs are much more durable than soft rubber parts and they create the same, quality seal that you expect, this drastically improves faucet reliability.

Overall Dimensions:
Add-On Faucet: 10"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
Ask your own question!
  • NSF/ANSI 61 & 372

    NSF/ANSI 61 & 372

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • IAPMO R&T, UPC Certified - USA & Canada

    IAPMO R&T, UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.
