Product Overview
- Tempers hot water to under 140 degrees Fahrenheit for safe draining
- Gray fiberglass grating is anti-slip
- Designed with pitch towards drain for proper drainage
- Temperature sensing valve automatically turns on/off water supply
- Access compartment is made of durable 14 gauge stainless steel
- Quantity
- 1/Each
- Shipping Weight
- 145 lb.
- Length
- 84 Inches
- Width
- 36 Inches
- Depth
- 4 Inches
- Features
- Made in America
- Gauge
- 14 Gauge
- Material
- Stainless Steel
- Style
- Fiberglass Grate
- Type
- Floor Troughs

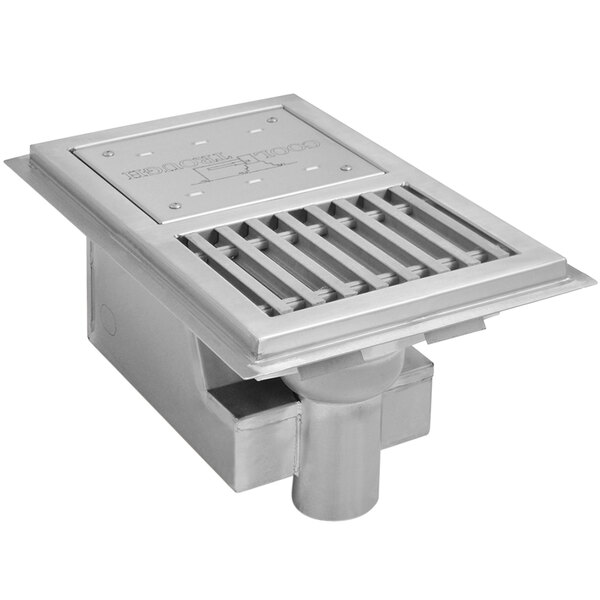

Eagle Group WTFT-2484-FGG Details
Avoid damage to your drainage system caused by scalding hot water with the Eagle Group WTFT-2484-FGG Cool Trough 18" x 84" water tempering system. Water exiting boilers, humidifiers, sterilizers, and commercial dish washers usually exceeds 140 degrees Fahrenheit, which according to plumbing code is not safe for PVC pipes and could cause other safety and environmental issues. The Cool Trough system will lower the temperature of any water entering it to below that danger point.
It does this by using a thermostatically controlled valve that is attached to a cold water line. When the valve detects water exceeding 130 degrees Fahrenheit it will automatically switch on the cold water until the water has been lowered to 120 degrees Fahrenheit, after which it will shut off. This method eliminates the waste of water by using more than is actually necessary. The valve is purely mechanical and does not require any electrical connection, which eliminates the potential for electrical component failure.
The drain is designed with a built-in downward pitch for more effective draining without pooling around the trough. A gray subway style grate is made of anti-slip fiberglass and is completely removable for easy access to the drain. The 4" drain includes a removable basket style strainer to catch any non-liquids that enter the trough. An access compartment allows you to manually switch on and off the water supply via shut-off valve. This compartment is made of durable 14 gauge stainless steel. A 1" cold water line is required for operation of this unit.
Overall Dimensions:
Length: 84"
Width: 36"
Trough Opening:
Length: 81"
Width: 21"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I cancel my order for this Eagle Group item if I change my mind?
Why are the dimensions in the title different from the actual dimensions in the description?
Made in America
This item was made in the United States of America.
1" Water Connection
This unit comes with a 1" water connection for water supply.
