  • Agitation pump for continuous or on-demand aeration
  • Programmable temperature range



Usually Ships in 1-2 Business Days

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

Wilbur Curtis WB5GT63000 Specs
Width 9 1/4 Inches
Depth 16 5/8 Inches
Height 24 1/2 Inches
Height to Dispenser 13 1/2 Inches
Amps 12.5 - 22.7 Amps
Hertz 60 Hertz
Phase 1
Voltage 120/220

Dual Voltage
Wattage 1,500 - 5,000 Watts
Capacity 5 Gallons
Capacity per Compartment 5 Gallons
NSF Listed Yes
Power Type Electric
Pressure 20 - 90 PSI
Temperature 200 Degrees F
Temperature Control Adjustable
Type Hot Water Dispensers
Water Source Direct Connection

Wilbur Curtis WB5GT63000 Details

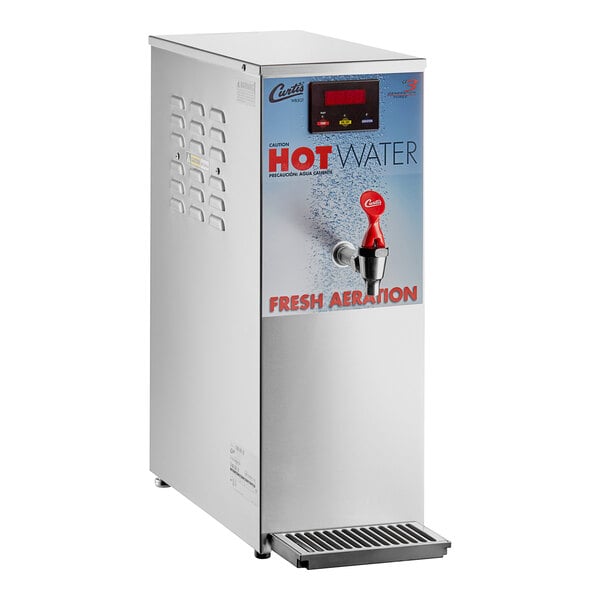

Whether you're serving tea, soup, or hot chocolate, this Curtis WB5GT63000 5 gallon hot water dispenser is ideal for any job that requires boiling hot water! Constructed of heavy gauge stainless steel, this hot water dispenser features thermostatic controls and an automatic refill system.

This unit's agitation pump allows for continuous or on demand aeration of water, which improves tea extraction and food flavor. Not to mention, its large LED display makes it easy to monitor and control water temperature at the touch of a button!

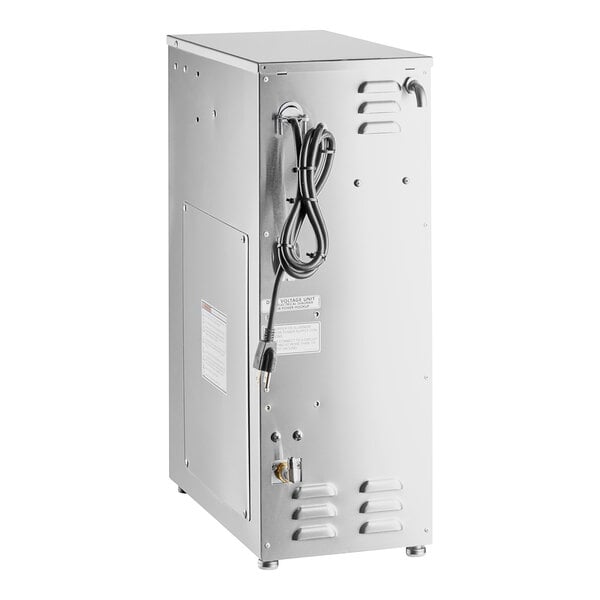

The Curtis WB5GT63000 hot water dispenser requires a 120/220V electrical connection.

Overall Dimensions:
Length: 16 5/8"
Width: 9 1/4"
Height: 24 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

Resources and Downloads for
Wilbur Curtis WB5GT63000

945WB5GT63 Spec Sheet Specsheet WB5GT Manual Manual Wilbur Curtis Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: Curtis WB5GT63000 5 Gallon Dual Voltage Hot Water Dispenser with Aerator - 120/220V

    5.0 stars from 1 review


    People Talk About:

    needed great hands filling fast extensive experience deserved customer Curtis

    This thing is a workhorse! We have ours setup for 220v and it is great. Super stable temp, really fast recovery and no issues in a year. Curtis has built a name for themselves in the coffee industry and it is well deserved. I have extensive experience with two of these machines and have had no problems ever. I have also heard that they have great customer service, but have not needed it myself. My only complaint is that the spout is kind of high up on the tower and can be difficult to use if you need two hands to hold the vessel that you are filling.

    from The Sawhorse Cafe, LLC Posted on

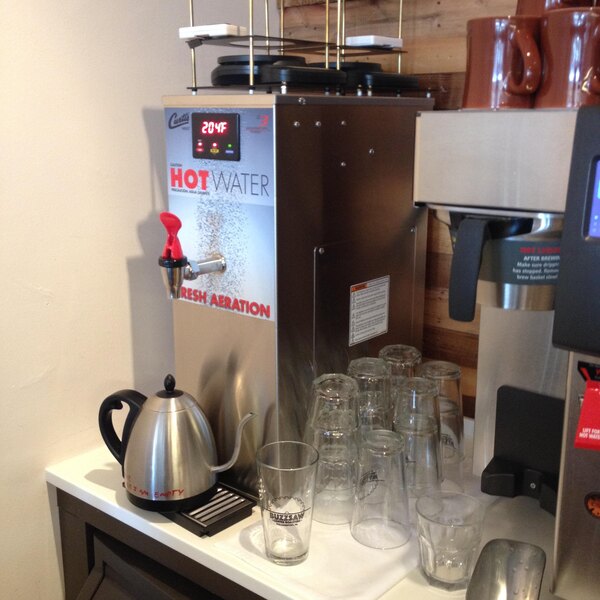

    Pint glasses for scale.
