$1,239.00/Each

Protect Your Product with Safeware

Protection Powered by Safeware

  • Holds up to 135 5 oz. cups
  • (3) 4 lb. hoppers to offer different flavors
  • Customizable display
  • Easy push-button operation
  • Drip tray contains spills to keep your counter mess free
Shipping: Usually Ships in 4 Weeks

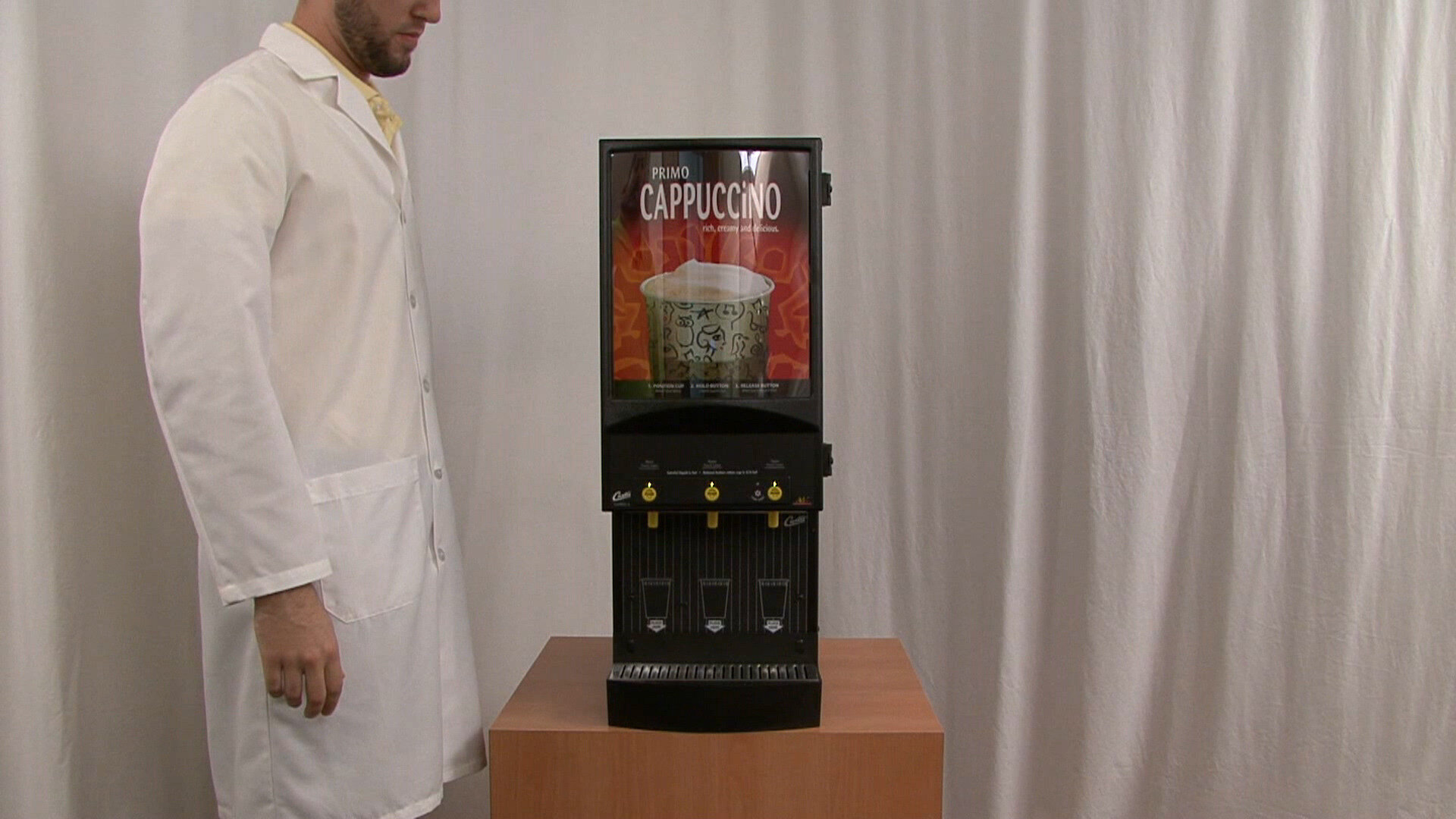

How to Use a Curtis Cappuccino Machine

How to Use a Curtis Cappuccino Machine

Removing the canisters. When removing the canisters, it is important to rotate the canister elbow to the up position. This helps reduce the risk of any product loss. Once the elbows have been rotated, gently lift on the tab provided and slide the canister out. Filling the canisters. Place the canister on a level surface and remove the lid. Carefully pour the product into the canister, making sure to leave at least 1/2" of space at the top. Gently move the canister to settle the product, then replace the lid. Cleaning. Using a damp rag without the use of harsh chemicals, gently wipe down the interior of the unit. Be sure to also remove the canister guide plate to clean underneath. Carefully remove the drip tray as to not spill any liquid that may have accumulated. Then, remove the whipper chamber parts in the order shown. Gently wipe the remaining surfaces with your damp rag. Wash, rinse, sanitize. Over the sink remove the drip tray cover and empty its contents. Then, place all removable components into the sink and clean them according to your company's standards. Reassemble and rinse. After ensuring the impeller shaft and receptor are aligned, replace the whipper components in the order shown. Next, replace the drip tray. Once the drip tray has been replaced, gently slide the canisters back into position. Once in position, rotate the canister elbows down. Please note that it is common for product to fall into the whipping chamber when the elbow is rotated. To prevent the excess product from jamming the chambers, run a quick rinse cycle on each station by simply holding down the stop / wash button and the corresponding station button. As a gentle reminder, these cleaning instructions can be found inside the unit's door and should be performed daily.

Copy and paste the embed code above.

Learn how to use and clean your new Curtis cappuccino machine!

Wilbur Curtis CAFEPC3CS10000 Specs
Width 20 1/2 Inches
Depth 11 11/16 Inches
Height 31 1/8 Inches
Height to Dispenser 7 1/4 Inches
Amps 15 Amps
Hertz 60 Hertz
Phase 1 Phase
Voltage 120 Volts
Wattage 1,800 Watts
Beverage Type Cappuccino
Capacity per Compartment 4 lb.
NSF Listed Yes
Number of Hoppers 3
Output 5.3 Gallons Per Hour
Pressure 20 - 90 PSI
Tank Capacity 2.01 gal.
Temperature Settings Adjustable
Type Cappuccino Dispensers
Water Source Direct Connection

Wilbur Curtis CAFEPC3CS10000 Details

This Curtis cafe series PC3 primo cappuccino machine features a customizable display that is sure to promote more impulse purchases at your coffee shop or convenience store! It has three 4 lb. hoppers so you can always be sure to have hot cappuccino on hand for your thirsty customers. Plus, because of its compact size and close water connection, this unit will fit virtually anywhere and use any available outlet.

The Curtis cafe series PC3 primo cappuccino machine also guarantees precise blending and consistent drink quality. Thanks to its ADS digital control module, you can set the powder-to-water ratio right from the front panel so there's never a need to manually adjust internal valves. It can also be set for continuous or portion control dispensing! The Curtis cafe series PC3 primo cappuccino machine requires a 120V electrical connection for operation.

Overall Dimensions:
Width: 20 1/2"
Depth: 11 11/16"
Height: 31 1/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • UL C_Classified_US

    UL C_Classified_US

    This item has been evaluated by the Underwriters Laboratories (UL) to meet specific properties and a limited range of hazards for product safety.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Wilbur Curtis CAFEPC3CS10000

945CAFE3CS9 Spec Specsheet Cafe Series Manual Manual Wilbur Curtis Warranty Warranty Troubleshooting Troubleshooting
