Type: Vacuum and Air Hose
Product Overview
- Steel construction is heavy-duty and professional grade
- Cartridge motor can be easily removed for convenient maintenance
- Ribbed discs and rolled edges provide safety and durability
- Multi-position lock ratchet mechanism allows you to secure the hose at preferred length
- Combination unit is compatible with both a vacuum and air hose (sold separately)
- Quantity
- 1/Each
- Shipping Weight
- 107 lb.
- Length
- 26 3/8 Inches
- Width
- 20 1/8 Inches
- Height
- 24 1/2 Inches
- Base Length
- 25 Inches
- Base Width
- 15 3/8 Inches
- Application
- Air Vacuum Hoses
- Color
- Blue
- Features
- Made in America Rust-Resistant
- Inlet Size
- 1 1/2 Inches
- Material
- Powder Coated Steel
- Outlet Size
- 1 1/2 Inches
- Return Style
- Motor Driven Retractable
- Style
- Open
- Type
- Reels Vacuum Hose Reels
Coxreels VA-DLPL-825 Details

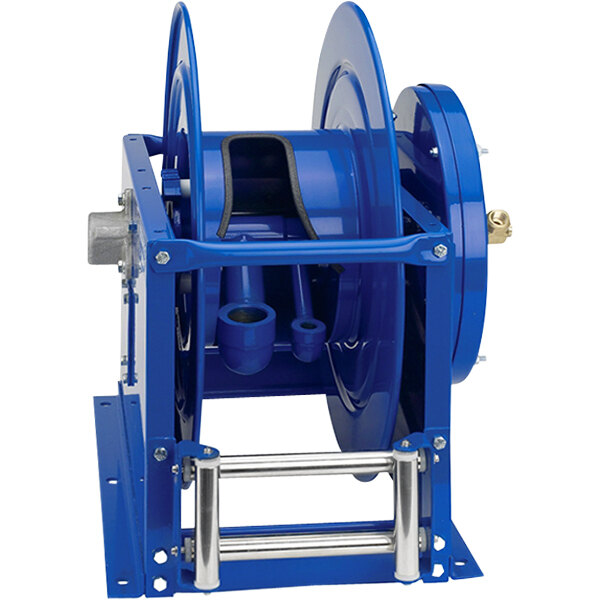

Outfit your business with Coxreels V Series 50' spring driven vacuum reel. Constructed with high quality, heavy-duty steel, this vacuum reel is extremely reliable. The external cover is made with heavy gauge steel with a CPC powder-coated finish. This finish is long-lasting and chip-resistant. Despite its durability, this unit is compact and easy to transport. The sturdy box-style frame base is designed for superior longevity and support. The frame base is made from all CNC robotically welded 1/4" steel, while it also uses CNC robotically spun discs for greater durability. The ribbed discs and rolled edges provide convenient safety on top of its impressive strength. The mounting pattern of the steel base allows for easy reel detachment and installation.
This reel is built with versatility in mind, as it contains an enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring. This makes the motor long-lasting, rust-resistant, and ensures that it is easily accessible. This cartridge-style motor is easily removable, making maintenance safe and simple. This combination unit is designed to operate with a dual plumbing system that is compatible with both a vacuum hose and an air hose (sold separately). The vacuum hose wrap will not be crimped thanks to the open drum slot design and exclusive low profile outlet riser. It features a direct connect port for a vacuum hose with bullet cuffs. The adjustable tension brake allows the draw speed to be easily controlled. It also prevents "free-wheeling" from occurring during operation. It sports a cast iron lock ring with a non-sparking bronze pawl.
Overall Dimensions:
Length: 26 3/8"
Width: 20 1/8"
Height: 24 1/2"
Base Dimensions:
Length: 25"
Width: 15 3/8"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I use this product to serve drinking water?
Made in America
This item was made in the United States of America.
Resources and Downloads for
Coxreels VA-DLPL-825
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
2 year warranty except any included hoses which are under warranty for 90 days.
