$559.00/Each

Ships free with Plus

Earn up to $16.77 back (1,677 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Multi-purpose design includes (1) 50' air, water, and oil hose
  • Features lubricated precision bearings and a cartridge-style spring motor for a long life and high performance
  • Designed with a 2-bolt mounting pattern that allows for convenient placement on flat, vertical surfaces
  • Constructed with powder-coated steel for maximum durability
  • 90 degree, solid brass NPT swivel inlet allows for swift maintenance and easy hose installation
UPC Code:06742557355458

Coxreels SR19-M450 Specs

Quantity
1/Each
Shipping Weight
50 lb.
Length
19 1/2 Inches
Width
8 Inches
Height
20 3/4 Inches
Hose Length
50 Feet
Hose Interior Diameter
1/2 Inch
Hose Outer Diameter
3/4 Inch
Application
Air  Oil  Water
Faucet Centers
Swivel Inlets
Features
Made in America  With Hose
Material
Powder Coated Steel
Maximum Pressure
2,500 PSI
Pressure
Medium
Return Style
Motor Driven
Style
Open
Type
Hoses  Reels

Coxreels SR19-M450 Details

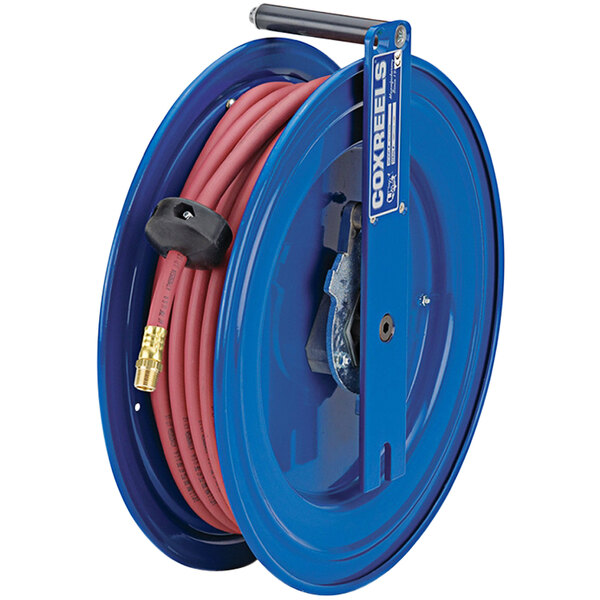

Outfit your business with this Coxreels SR19-M450 spring rewind right side mount air, water, and oil hose reel with (1) medium pressure 1/2" x 50' hose! This hose reel is perfect for industrial businesses where an air, water, or oil hose is needed but space is limited. The single, 1/4" steel mounting base stands up to heavy use in a commercial environment and allows easy access to the hose reel for maintenance. The CPC powder coat finish is chip-resistant and provides long-term durability.

Constructed with a 2-bolt right side mounting pattern, this hose reel can be installed on any vertical surface, such as cabinets, beams, service vehicles, and tool benches. This reel is designed with versatility in mind, as it contains an enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring. This makes the motor long-lasting, rust-resistant, and ensures that it is easily accessible and removable when needed. This reel also features a locking mechanism that allows you to secure the hose at your preferred length so you're able to service every area of your workstation without compromising on location. Plus, the included hose control bar provides security by keeping the hose securely on the reel.

This hose reel comes with (1) medium pressure 1/2" x 50' hose for maximum efficiency. It boasts a solid steel axle and lubricated precision bearings that allow you to rotate the reel 360 degrees with ease. Its rolled exterior design and robotically spun and ribbed discs lend strength and security to the unit. This reel is fitted with (1) 90 degree, full-flow, solid brass NPT swivel that allows for swift maintenance and easy hose installation. The hose reel and hose are rated for 2500 PSI working pressure.

Overall Dimensions:
Length: 19 1/2"
Width: 8"
Height: 20 3/4"

Hose Dimensions:
Interior Diameter: 1/2"
Outer Diameter: 3/4"
Length: 50'
PSI Rating: 2500

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
Ask your own question!
  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for
Coxreels SR19-M450

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

2 year warranty except any included hoses which are under warranty for 90 days.
