Product Overview
- Multi-purpose design accommodates (1) 30' air, water, or oil hose (sold separately)
- Features lubricated precision bearings and a cartridge-style spring motor for a long life and high performance
- Designed with a 2-bolt mounting pattern that allows for convenient placement on flat, vertical surfaces
- Constructed with powder-coated steel for maximum durability
- 90 degree, solid brass NPT swivel inlet allows for swift maintenance and easy hose installation
- Quantity
- 1/Each
- Shipping Weight
- 29 lb.
- Length
- 17 Inches
- Width
- 5 3/4 Inches
- Height
- 18 1/4 Inches
- Application
- Air Oil Water
- Faucet Centers
- Swivel Inlets
- Features
- Made in America
- Material
- Powder Coated Steel
- Pressure
- Low
- Return Style
- Motor Driven
- Style
- Open
- Type
- Reels

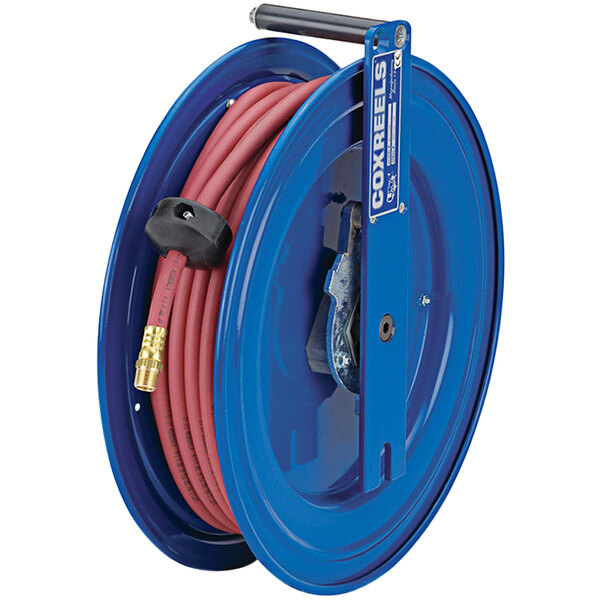

Coxreels SR17L-L430 Details
Outfit your business with this Coxreels SR17L-L430 spring rewind right side mount low pressure hose reel! This hose reel is perfect for industrial businesses where space is limited, as it's designed to be used with a low pressure 1/2" x 30' air, water, or oil hose (sold separately). The single, 1/4" steel mounting base stands up to heavy use in a commercial environment and allows easy access to the hose reel for maintenance. The CPC powder coat finish is chip-resistant and provides long-term durability.
Constructed with a 2-bolt right side mounting pattern, this hose reel can be installed on any vertical surface, such as cabinets, beams, service vehicles, and tool benches. This reel is designed with versatility in mind, as it contains an enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring. This makes the motor long-lasting, rust-resistant, and ensures that it is easily accessible and removable when needed. This reel also features a locking mechanism that allows you to secure the hose at your preferred length so you're able to service every area of your workstation without compromising on location. Plus, the included hose control bar provides security by keeping the hose securely on the reel.
This hose reel boasts a solid steel axle and lubricated precision bearings that allow you to rotate the reel 360 degrees with ease. Its rolled exterior design and robotically spun and ribbed discs lend strength and security to the unit. This reel is fitted with (1) 90 degree, full-flow, solid brass NPT swivel that allows for swift maintenance and easy hose installation. The hose reel is rated for 300 PSI working pressure.
Overall Dimensions:
Length: 17"
Width: 5 3/4"
Height: 18 1/4"
PSI Rating: 300
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I use this product to serve drinking water?
Made in America
This item was made in the United States of America.
Resources and Downloads for
Coxreels SR17L-L430
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
2 year warranty except any included hoses which are under warranty for 90 days.
